The T520 series Organic Capacitor (KO-CAP) is a solid electrolytic capacitor with a conductive polymer cathode capable of delivering very low ESR and improved capacitance retention at high frequencies. KO-CAP combines the low ESR of multilayer ceramic, the high capacitance of aluminium electrolytic and the volumetric efficiency of tantalum into a single surface mount package. Unlike liquid electrolyte-based capacitors, KO-CAP has a very long operational life and high ripple current capabilities. Suitable for general purpose DC applications up to 12.8V. This series is ideal for DC-to-DC converters, bulk decoupling and hold-up.
- Volumetrically efficient
- High frequency capacitance retention
- 100% Accelerated steady state aging
- 100% Surge current tested
- EIA standard case sizes
Product details
| Capacitance |
150µF |
| Voltage Rating |
16V |
| Product Range |
T52X KO-CAP® Series |
| Capacitance Tolerance |
± 20% |
| Manufacturer Size Code |
D |
| ESR |
0.04ohm |
| Operating Temperature Min |
-55°C |
| Operating Temperature Max |
105°C |
| Automotive Qualification Standard |
- |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
KEMET |
| Part Number |
T521D157M016ATE040 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|

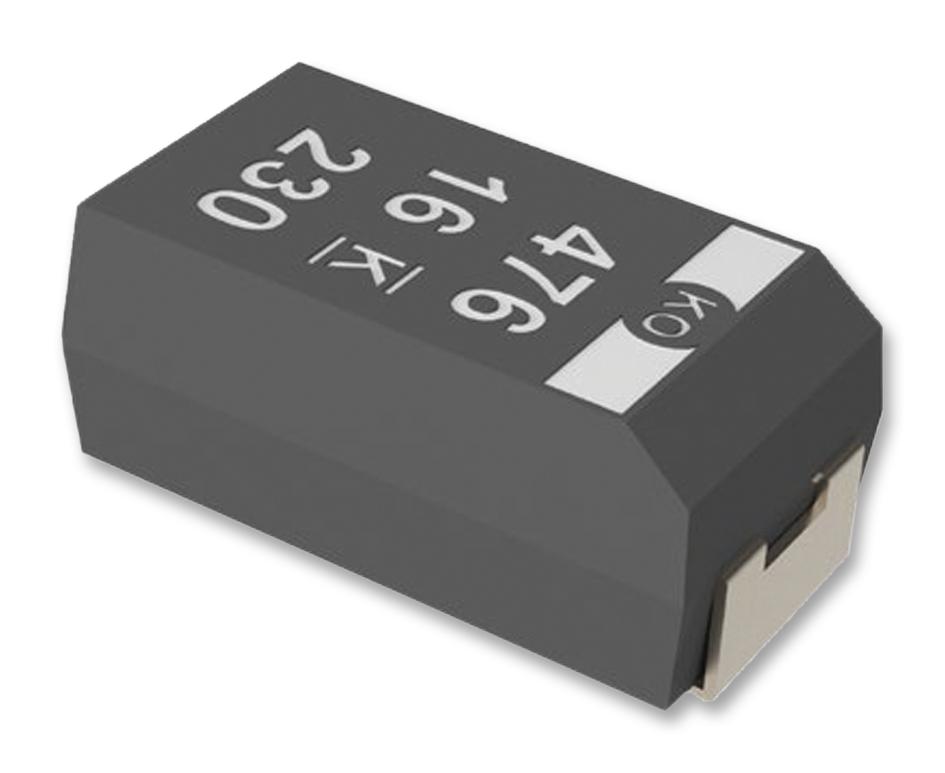

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
