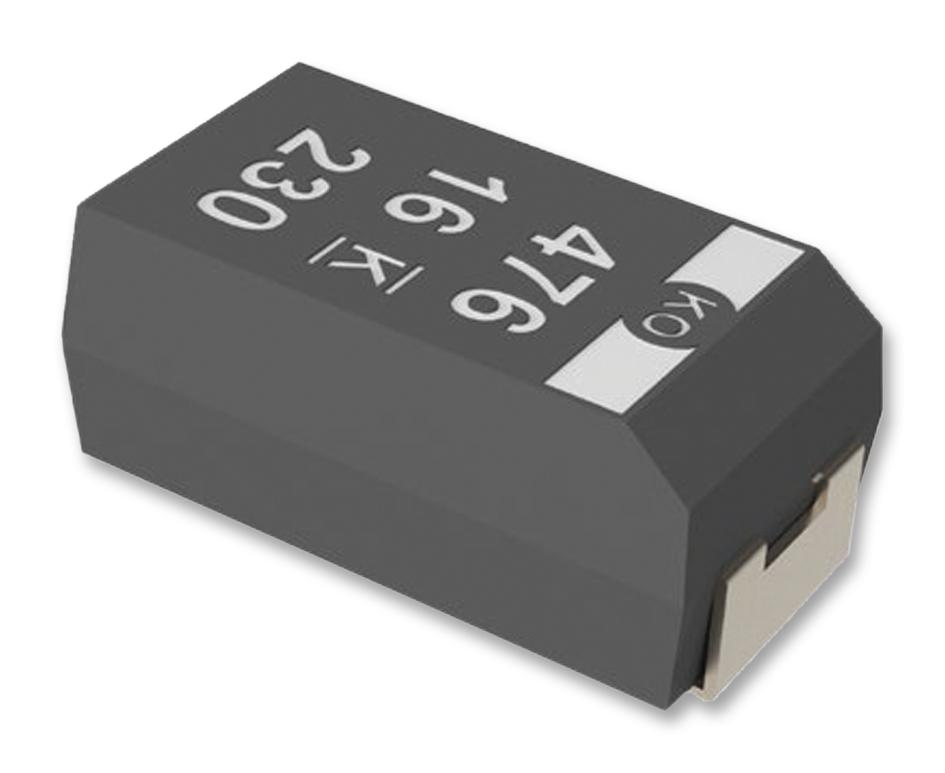

Kemet T521B225M050ATE200 T521B225M050ATE200 Tantalum Polymer Capacitor 2.2 µF ± 20% 50 V B 0.2 ohm 1411 [3528 Metric]

The T521 series organic SMD Tantalum Capacitor with a conductive polymer cathode capable of delivering very low ESR and improved capacitance retention at high frequencies. KO-CAP combines the low ESR of multilayer ceramic, the high capacitance of aluminium electrolytic and the volumetric efficiency of tantalum into a single surface mount package. Unlike liquid electrolyte-based capacitors, KO-CAP has a very long operational life and high ripple current capabilities. This high voltage polymer electrolytic is designed for higher application voltages than the T520 KO-CAP. KO-CAP's long-life reliability enables this series to be an ideal alternative to liquid-based electrolytic capacitors.

• Volumetrically efficient
• Stable temperature characteristics
• High ripple current capability
• High reliability
• 100% Surge current tested
• Low profile design
• Halogen-free epoxy
• High frequency capacitance retention
• 100% Accelerated steady state aging

Other details

Brand	KEMET
Part Number	T521B225M050ATE200
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
CAD Multiple Formats EN
Manufacturer Catalogue EN
