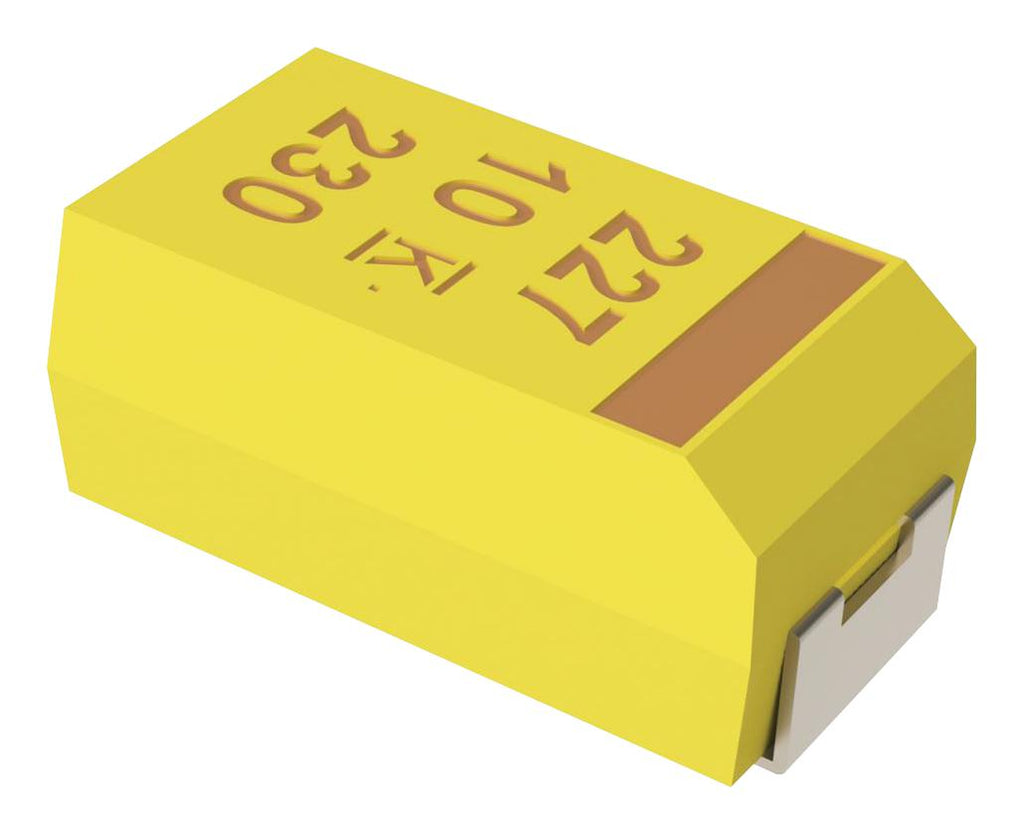

Kemet T498X107K016ATE075 Surface Mount Tantalum Capacitor 100 µF 16 V 2917 [7343 Metric] ± 10% 0.075 ohm X

The T498 series SMD Tantalum Capacitor offers optimum performance characteristics in applications with operating temperatures up to 150°C. Advanced materials and testing allow this series to perform with a reliability level of 0.5%/1000hrs at rated voltage and temperature.

• Meets or exceeds EIA standard 535BAAC
• Symmetrical and compliant terminations
• Optional gold-plated terminations
• Laser-marked case
• 100% surge current test available on all case sizes
• 0.47 to 220µF Capacitance range
• 4 to 50V Voltage range
• 100% Steady-state accelerated aging
• Temperature/voltage derating is 2/3 at 150°C
• Moisture sensitivity level-1

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	KEMET
Part Number	T498X107K016ATE075
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
Manufacturer Catalogue EN
CAD Multiple Formats EN
