Kemet T496B106K016ATE3K5 T496B106K016ATE3K5 Surface Mount Tantalum Capacitor 10 µF 16 V 1411 [3528 Metric] ± 10% 3.5 ohm B

The T496 Series of tantalum chip capacitors offers a "fail safe" design. The built-in fuse element offers excellent protection from damaging short circuit conditions in applications where damaging high fault currents exist. Protection from costly circuit damage due to reversed installation is offered with this device. This series is classified as MSL (Moisture Sensitivity Level) 1 under J STD 020: unlimited floor life time at <= 30°C/85% RH.

• Meets or exceeds EIA Standard 535BAAC
• Patented fuse assembly
• Built-in fuse protects against short circuit mode
• 100% surge current test on C, D, and X sizes
• Capacitance values of 0.15 µF to 330 µF
• Voltage rating of 4 - 50 VDC
• Fuse activation, 25°C: within 1 second at fault currents of 4 amps and higher
• Continuous current capability: 0.75 amps
• Post actuation resistance, 25°C: 10 MR, minimum
• Operating temperature range of -55°C to +125°C

Other details

Brand	KEMET
Part Number	T496B106K016ATE3K5
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
CAD Multiple Formats EN
Product Change Notice EN
Manufacturer Catalogue EN
Application Note EN

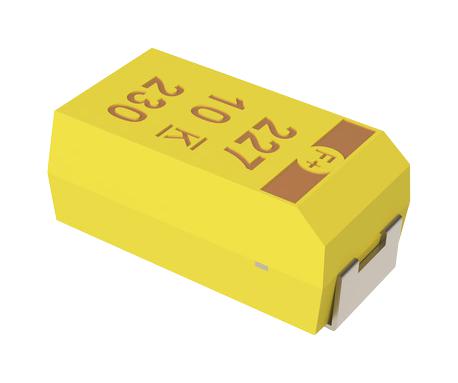

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
