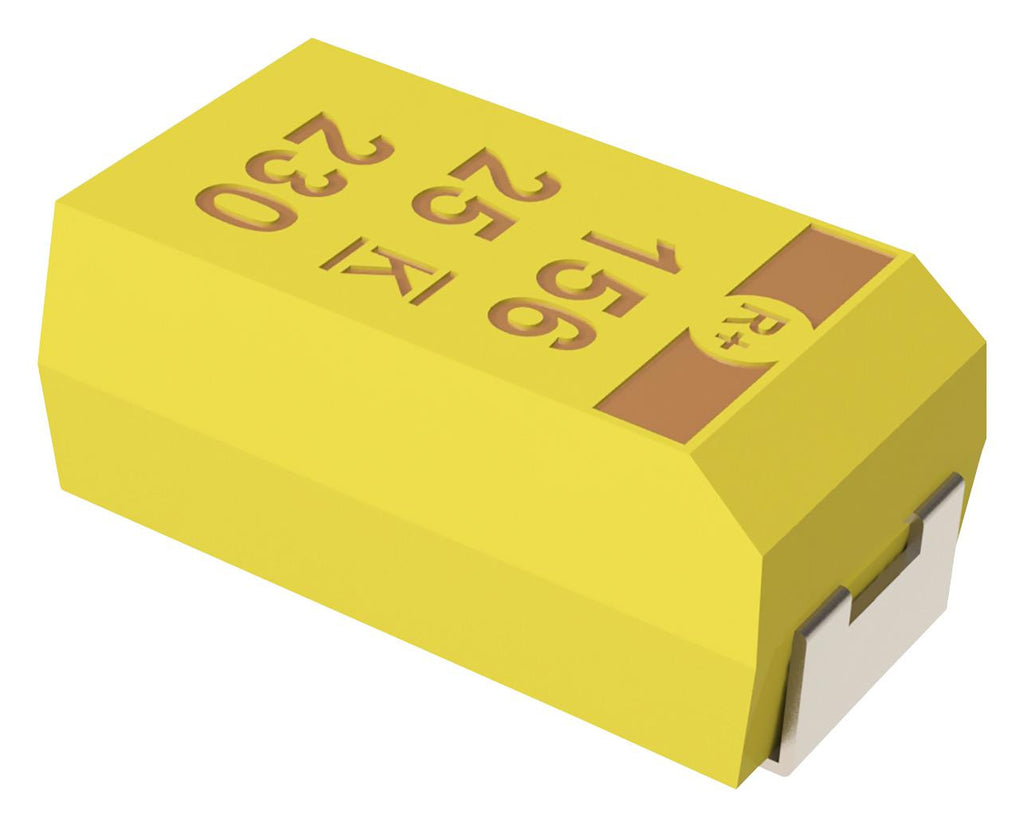

![KEMET T495X477K006ATE065 Surface Mount Tantalum Capacitor, 470 µF, 6.3 V, T495 Series, ± 10%, 2917 [7343 Metric]](http://www.tanotis.com/cdn/shop/products/1288218-40_93caacac-2ca9-4aef-a105-a65485ea95e7_{width}x.jpg?v=1575996422)
![KEMET T495X477K006ATE065 Surface Mount Tantalum Capacitor, 470 µF, 6.3 V, T495 Series, ± 10%, 2917 [7343 Metric]](http://www.tanotis.com/cdn/shop/products/1288218-40_93caacac-2ca9-4aef-a105-a65485ea95e7_1024x.jpg?v=1575996422)
| ₹ 414.09 includes GST and import duties. | |
| B2B customers can avail ₹ 63.15 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The Kemet T495 series capacitors are low ESR, surge robust MnO2 polarized tantalum chip capacitors. These capacitors are designed for demanding applications that require high surge current and high ripple current capability. T495 capacitors builds upon proven capabilities of industrial grade tantalum chip capacitors to offer several advantages such as low ESR, high ripple current capability, excellent capacitance stability and improved resistance to high inrush currents. These benefits are achieved through a combination of proprietary design, materials and process parameters as well as high stress, low impedance electrical conditioning performed prior to screening.
- 0.47µF to 1000µF capacitance range
- EIA 1206, 1210, 2312, 2917, 2924 case sizes available
- Available in ±10% and ±20% tolerance
- Rated voltage range of 2.5VDC to 50VDC
- Operating temperature range of -55°C to 125°C
- Meets or exceeds EIA standard 535BAAC
- 100% steady state accelerated aging
- Optional gold plated terminations
Applications
Automotive, Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Manufacturer Size Code | X |
| Operating Temperature Min | -55°C |
| Operating Temperature Max | 125°C |
| Voltage Rating | 6.3V |
| Tantalum Capacitor Case | 2917 [7343 Metric] |
| Product Range | T495 Series |
| Automotive Qualification Standard | - |
| ESR | 0.065ohm |
| Capacitance | 470µF |
| Capacitance Tolerance | ± 10% |
| Packaging | Cut Tape |
Other details
| Brand | KEMET |
| Part Number | T495X477K006ATE065 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| Product Change Notice EN | |
