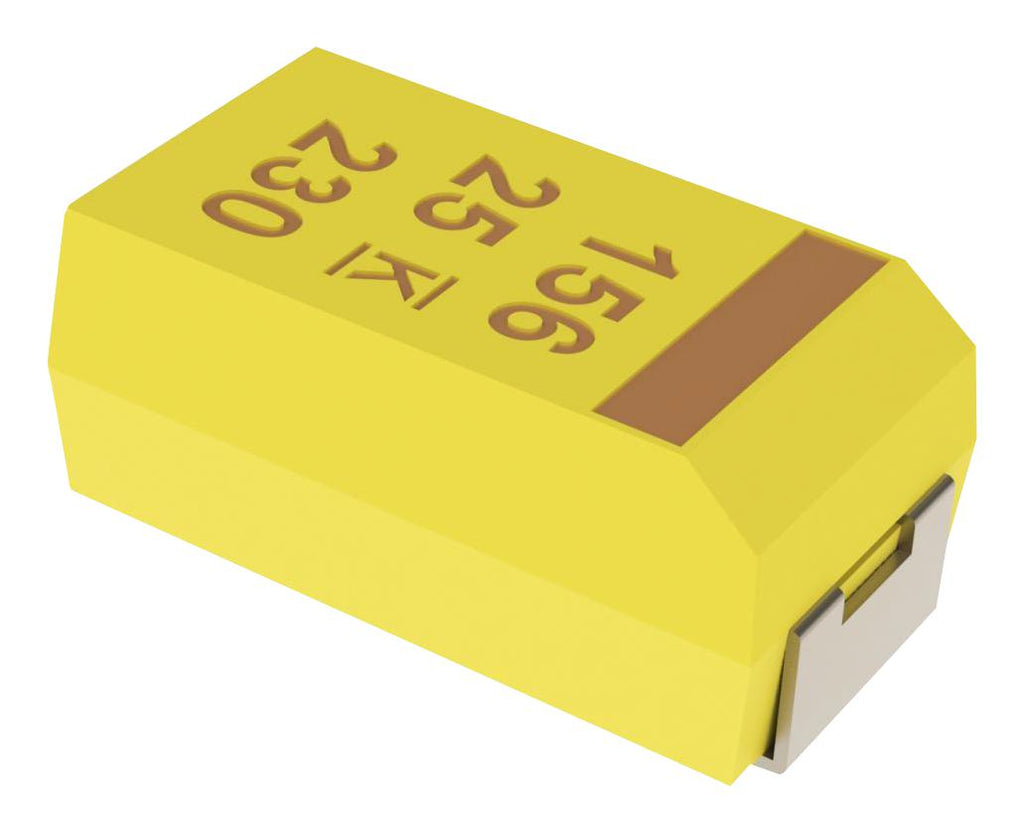

Kemet T495D476K025ATE150 Surface Mount Tantalum Capacitor 47 µF 25 V 2917 [7343 Metric] ± 10% 0.15 ohm D

The T495 series capacitors are low ESR, surge robust MnO2 polarized tantalum chip capacitors. These capacitors are designed for demanding applications that require high surge current and high ripple current capability. T495 capacitors builds upon proven capabilities of industrial grade tantalum chip capacitors to offer several advantages such as low ESR, high ripple current capability, excellent capacitance stability and improved resistance to high inrush currents. These benefits are achieved through a combination of proprietary design, materials and process parameters as well as high stress, low impedance electrical conditioning performed prior to screening.

• 0.1µF to 1000µF capacitance range
• EIA 1206, 1210, 2312, 2917, 2924 case sizes available
• Available in ±10% and ±20% tolerance
• Rated voltage range of 2.5VDC to 50VDC
• Operating temperature range of -55°C to 125°C
• Meets or exceeds EIA standard 535BAAC
• 100% steady state accelerated aging
• Optional gold plated terminations
• MSL 1
• Endurance is 2000h at 85°C

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	KEMET
Part Number	T495D476K025ATE150
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
CAD Multiple Formats EN
