| ₹ 302.21 includes GST and import duties. | |
| B2B customers can avail ₹ 46.09 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

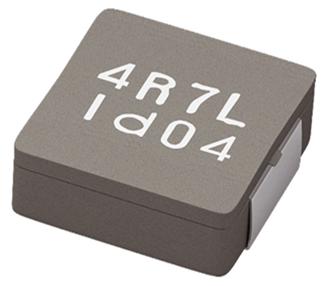

This is a MPX1D1250LR22 Power Inductor (SMD) , 220 nH, 42.7 A, Shielded, 55 A, MPX Series, 13.2mm x 12.5mm x 5mm product from KEMET with the model number MPX1D1250LR22
Product details
| Inductance | 220nH |
| RMS Current (Irms) | 42.7A |
| Inductor Construction | Shielded |
| Saturation Current (Isat) | 55A |
| Product Range | MPX Series |
| Power Inductor Case | 13.2mm x 12.5mm x 5mm |
| DC Resistance Max | 0.0012ohm |
| Inductance Tolerance | ± 20% |
Other details
| Brand | KEMET |
| Part Number | MPX1D1250LR22 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 296.17 |
| 3-5 | ₹ 293.14 |
| 5-10 | ₹ 287.1 |
| 10+ | ₹ 281.06 |
Bulk discount will be automatically applied during checkout based on quantity.
