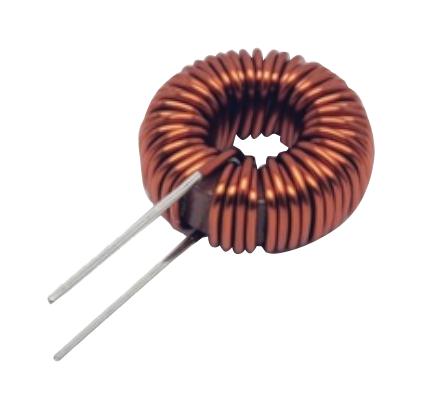

The KEMET HHBC coils are normal mode chokes with a wide variety of characteristics. These coils are designed with Fe-Si dust cores and are useful in various fields, such as DC/DC converters as well as normal noise countermeasures. They are used in applications such as switching power supply outlets, DC-DC converter, boost converters and normal mode noise countermeasure.
- Fe-Si dust core material
- Good balance of core loss and DC superposition characteristics
- Wide variety of sizes and specifications
- Operating temperature range from -40°C to +125°C
Product details
| Product Range |
HHBC Series |
| Inductance |
43µH |
| RMS Current (Irms) |
2A |
| DC Resistance Max |
0.0541ohm |
| Inductance Tolerance |
± 20% |
Other details
| Brand |
KEMET |
| Part Number |
HHBC8S-0R6A0043V |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
| CAD Multiple Formats EN |
|
