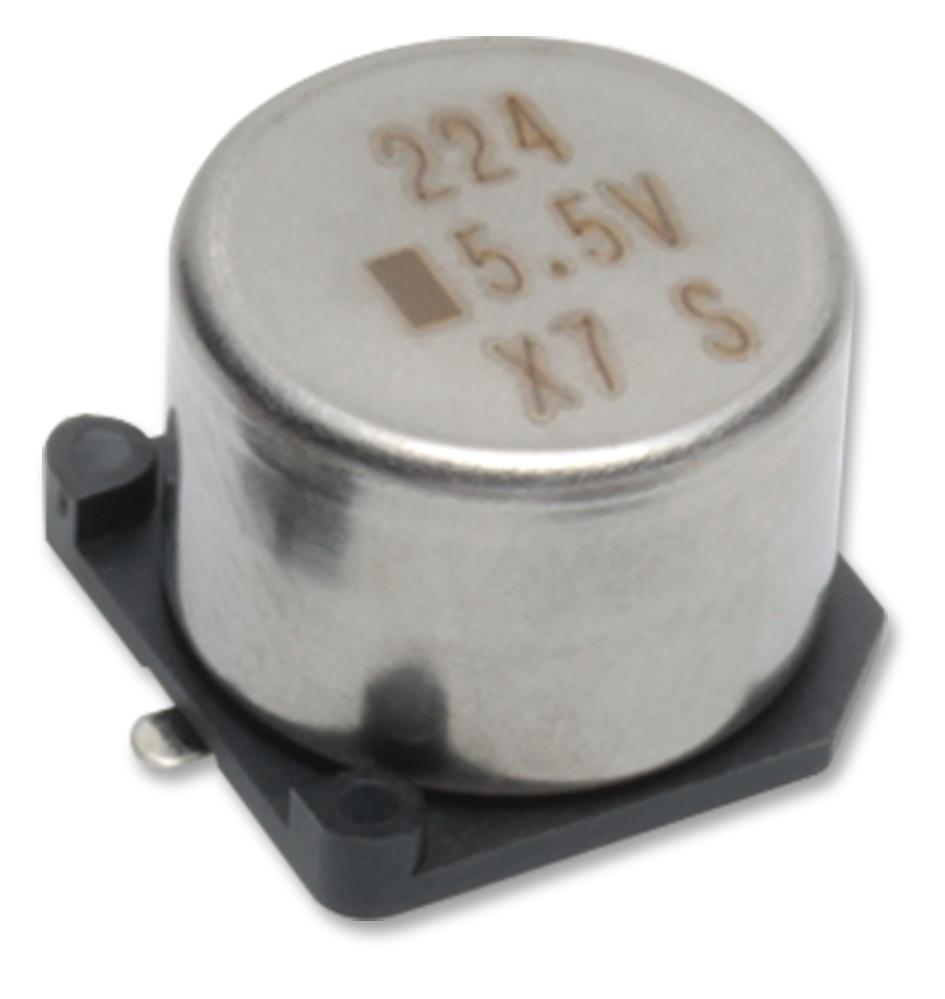

The FC0V104ZFTBR24 is a cylindrical SMD Supercapacitor designed specifically for reflow soldering, allowing them to be attached to a printed circuit board (PCB) directly. This supercapacitor have characteristics ranging from traditional capacitors and batteries. As a result, supercapacitors can be used like a secondary battery when applied in a DC circuit. This device is best suited for use in low voltage DC hold-up applications such as embedded microprocessor systems with flash memory.
- Surface mount without holder
- Maintenance free
- Highly reliable against liquid leakage
- Lead-free environmental
- Positive electrode forward orientation
- Maximum Current @ 30 Minutes 0.09mA
Product details
| Capacitance |
0.1F |
| Voltage Rating |
3.5V |
| Capacitor Terminals |
- |
| Product Range |
FC Series |
| Capacitance Tolerance |
+80%, -20% |
| Lead Spacing |
- |
| Lifetime @ Temperature |
1000 hours @ 70°C |
| Operating Temperature Min |
-25°C |
| Operating Temperature Max |
70°C |
| ESR |
50ohm |
| Capacitor Case Style |
Radial Can - SMD |
| Diameter |
10.5mm |
| Height |
5.5mm |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
KEMET |
| Part Number |
FC0V104ZFTBR24 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
