| ₹ 387.94 includes GST and import duties. | |
| B2B customers can avail ₹ 59.16 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

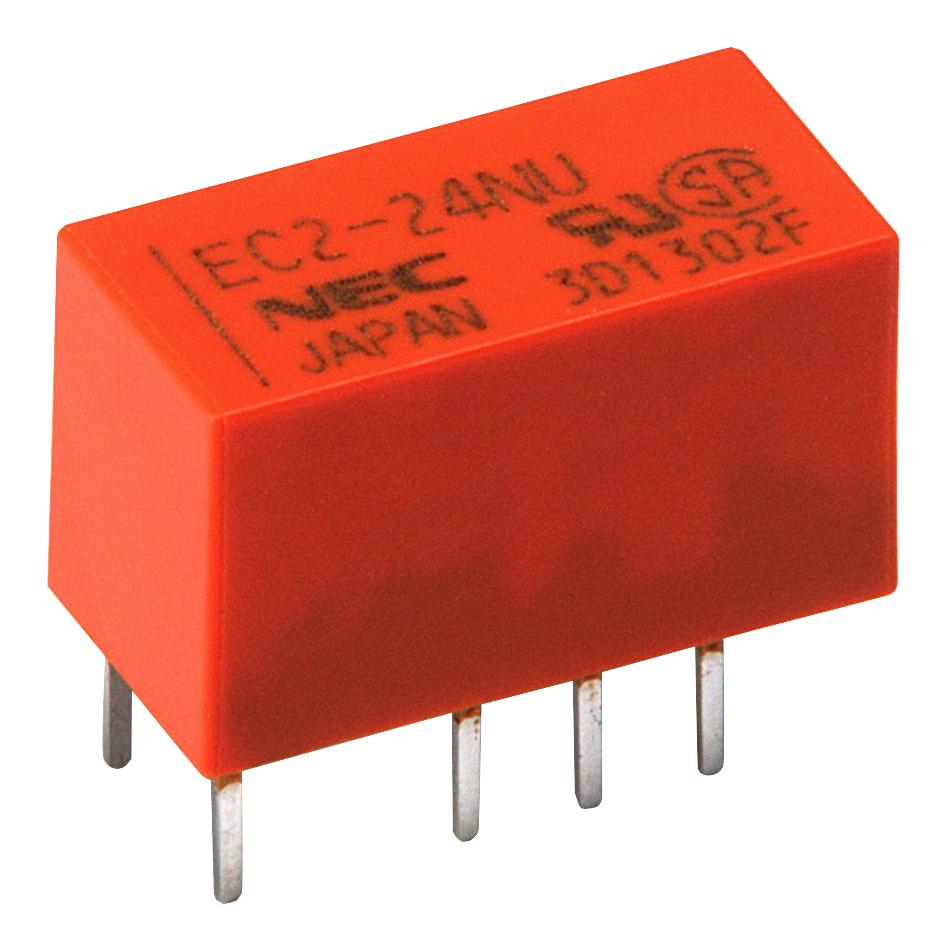

The EC2-24NU is a Miniature Signal Relay with DPDT silver alloy with gold alloy overlay contacts, non-latching coil, standard radial lead type and solder through hole terminals. This EC2-series relay features compact, lightweight and ultra-low profile with high density. Low power consumption and low magnetic interference.
- Minimal board space
- Extremely durable plastic sealing
- High withstanding voltage
- 200mW Nominal operating power
- -40 to 85°C Ambient temperature range
- Low power consumption (100 to 200mW)
Industrial, Communications & Networking, Test & Measurement, Consumer Electronics, Audio, Medical, Security, Automotive, Power Management
Other details
| Brand | KEMET |
| Part Number | EC2-24NU |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| CAD Multiple Formats EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 380.18 |
| 3-5 | ₹ 376.3 |
| 5-10 | ₹ 368.54 |
| 10+ | ₹ 360.78 |
Bulk discount will be automatically applied during checkout based on quantity.
