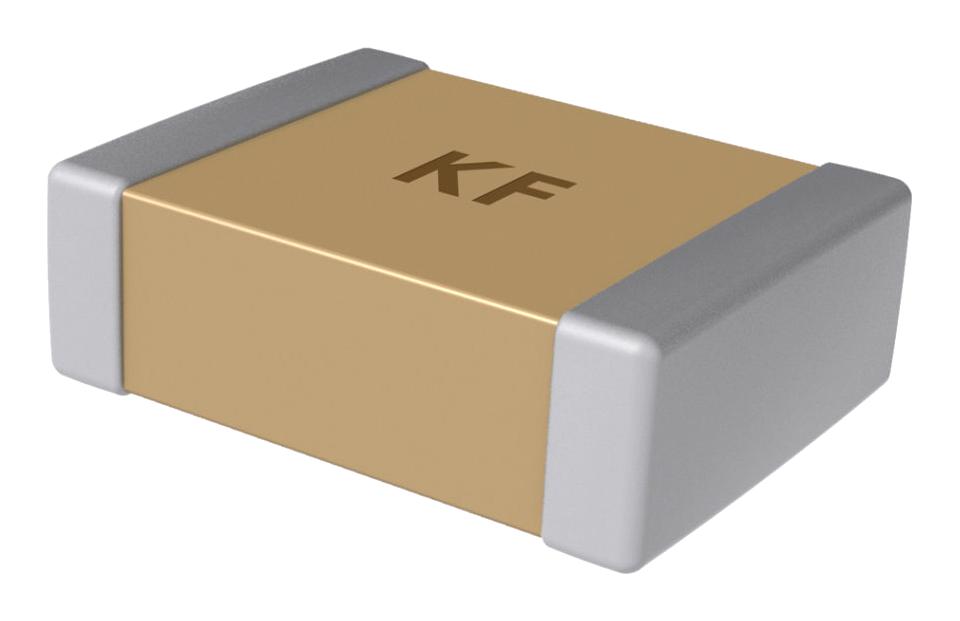

Kemet CAS26C102KARFC Ceramic Suppression Capacitor 1000 pF ± 10% X1 / Y2 250 V 2211 [5728 Metric]

The CAS safety certified capacitors are specifically designed for interference-suppression AC line filtering applications. When comparing to radial leaded disc capacitors, the CAS surface mount form factor provides engineers the ability to miniaturize their designs with a higher density solution. Having internationally recognized safety certifications, these capacitors are well-suited for applications that require keeping line transients and EMI out of susceptible equipment. They are also an ideal solution when needing to suppress line disturbances at the source.

• Safety Certified to IEC 60384-14
• Class X1/Y2, X2
• 2.5 kV and 5 kV Impulse Voltages
• Line-to-line (Class X) filtering
• Line-to-ground (Class Y) filtering
• Antenna coupling
• Switching power supplies

Other details

Brand	KEMET
Part Number	CAS26C102KARFC
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
