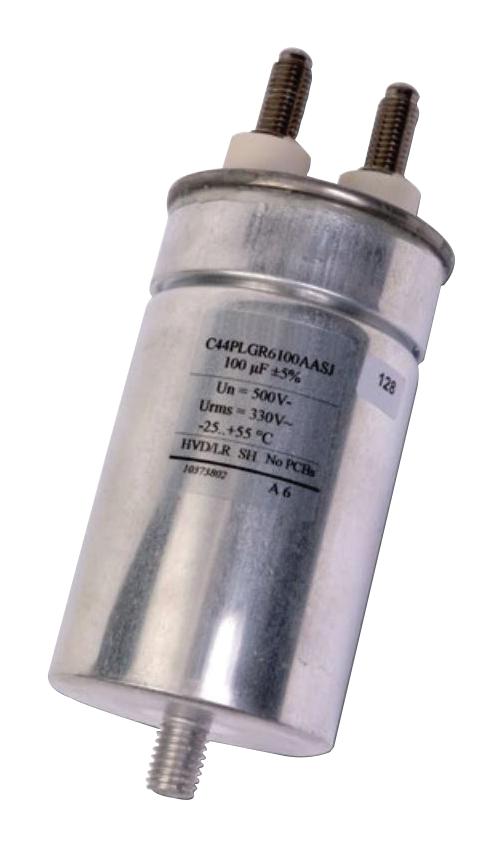

The C44P-R capacitor is a polypropylene metallized film capactior with a cylindrical, aluminium can-type design filled with a soft, vegetable oil-based, polyurethane resin. It uses screw terminals, a plastic insulator, and an overpressure safety device. Typical applications include commutation, power factor correction, and AC harmonic filtering.
- Overpressure safety device
- High peak current capability
- High torque screw terminals with plastic insulator
- Long lifetime
- Self-healing
Product details
| Capacitance |
150µF |
| Voltage Rating |
480VAC |
| Dielectric Type |
Metallized PP |
| Capacitance Tolerance |
± 10% |
| Product Range |
C44P-R Series |
| Capacitor Case Style |
Can |
| Capacitor Terminals |
Screw |
| Lead Spacing |
35mm |
| Operating Temperature Min |
-25°C |
| Operating Temperature Max |
70°C |
| Automotive Qualification Standard |
- |
Other details
| Brand |
KEMET |
| Part Number |
C44PMGR6150RASK |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
