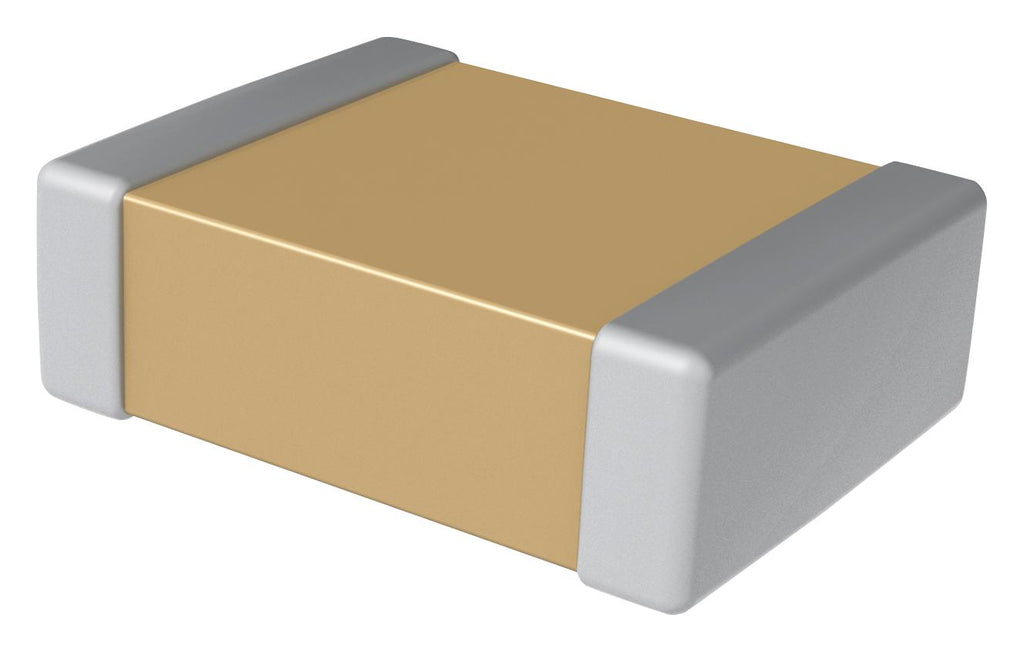

Kemet C1812X334KARACTU SMD Multilayer Ceramic Capacitor 0.33 µF 250 V 1812 [4532 Metric] ± 10% X7R C Series

KEMET's 250V DC Tip and Ring MLCCs in X7R dielectric are designed and rated for telecommunication ringer circuits where the capacitor is used to block -48V to -52V DC of line voltage and pass a 16-25 Hz AC signal pulse of 70 Vrms to 90 Vrms. Serving as an excellent replacement for high voltage leaded film devices, these smaller surface mount technology footprints save valuable board space which is critical when creating new designs. KEMET Tip and Ring capacitors feature a 125°C maximum operating temperature and are considered "temperature stable." The X7R dielectric is a Class II material. Components of this classification are fixed, ceramic dielectric capacitors suited for bypass and decoupling applications or for frequency discriminating circuits where Q and stability of capacitance characteristics are not critical. X7R dielectric exhibits a predictable change in capacitance with respect to time and voltage and boasts a minimal change in capacitance with reference to ambient temperat

• Capacitance offerings ranging from 1,000 pF to 6.8 µF
• DC voltage rating of 250 V
• EIA 0805, 1206, 1210, 1812, 1825, 2220 and 2225 case sizes
• Operating temperature range -55°C to +125°C
• Non-polar device, minimizing installation concerns
• Non polar device, minimize installation concerns

Product details

Capacitance	0.33µF
Voltage Rating	250V
Ceramic Capacitor Case	1812 [4532 Metric]
Capacitance Tolerance	± 10%
Dielectric Characteristic	X7R
Product Range	C Series KEMET
Operating Temperature Min	-55°C
Operating Temperature Max	125°C
Automotive Qualification Standard	-
MSL	MSL 1 - Unlimited

Other details

Brand	KEMET
Part Number	C1812X334KARACTU
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
