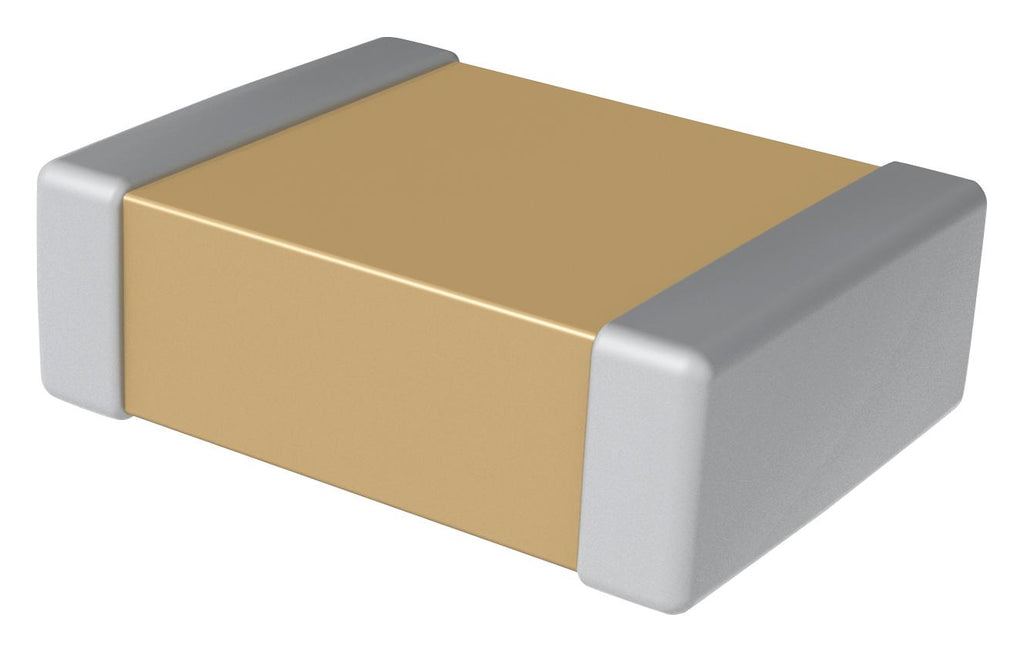

Kemet C1812X224J5GACAUTO SMD Multilayer Ceramic Capacitor AEC-Q200 0.22 ?F 50 V 1812 [4532 Metric] ± 5% C0G / NP0

KEMET's Flexible Termination (FT-CAP) MLCC in C0G dielectric incorporates a unique, flexible termination system that is integrated with KEMET's standard termination materials. A conductive silver epoxy is utilized between the base metal and nickel barrier layers of KEMET's standard termination system in order to establish pliability while maintaining terminal strength, solderability and electrical performance. This technology was developed in order to address the primary failure mode of MLCCs- flex cracks, which are typically the result of excessive tensile and shear stresses produced during board flexure and thermal cycling. Flexible termination technology inhibits the transfer of board stress to the rigid ceramic body, therefore mitigating flex cracks which can result in low IR or short circuit failures. Capacitance change with reference to ambient temperature is limited to ?30 ppm/?C from -55?C to +125?C.

• AEC-Q200 automotive qualified
• up to 5 mm flex-bend capability
• Operating temperature range from -55?C to +125?C
• Capacitance offerings ranging from 0.5 pF up to 0.47 ?F
• DC voltage ratings of 10, 16, 25, 50, 100, 200 and 250V
• No piezoelectric noise
• Extremely low ESR and ESL
• High thermal stability
• High ripple current capability
• Non-polar device, minimizing installation concerns

Applications

Automotive

Product details

Capacitance	0.22?F
Voltage Rating	50V
Ceramic Capacitor Case	1812 [4532 Metric]
Capacitance Tolerance	? 5%
Dielectric Characteristic	C0G / NP0
Product Range	AEC-Q200 X Series FT-CAP
Operating Temperature Min	-55?C
Operating Temperature Max	125?C
Automotive Qualification Standard	AEC-Q200
MSL	MSL 1 - Unlimited

Other details

Brand	KEMET
Part Number	C1812X224J5GACAUTO
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
CAD Multiple Formats EN
