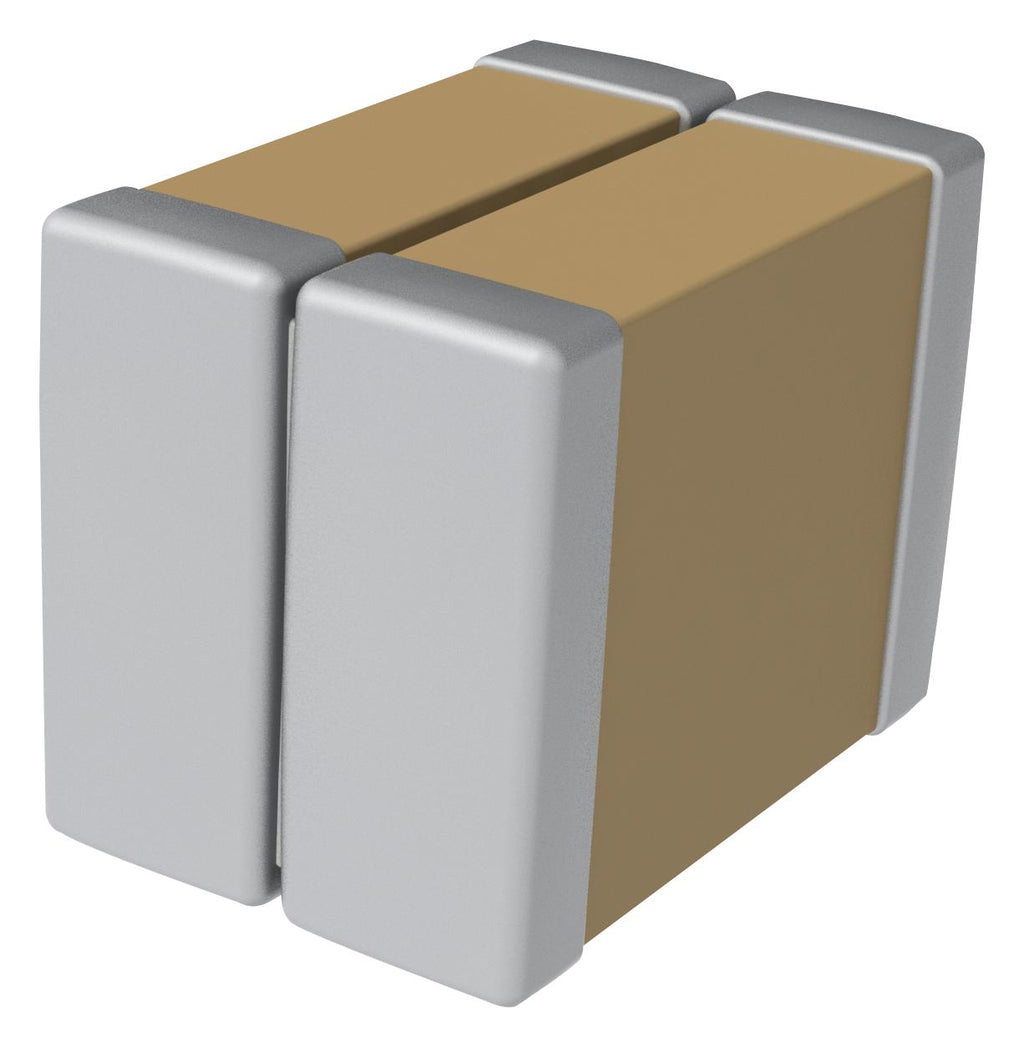

Kemet C1812C944J5JLC7805 Multilayer Ceramic Capacitor 0.94 µF 50 V 1812 [4532 Metric] Konnekt � ± 5% U2J

The KONNEKT � capacitors are designed for high-efficiency and high-density power applications. It utilizes an innovative Transient Liquid Phase Sintering (TLPS) material to create a leadless multi-chip solution. Combined with KEMET's ultra-stable U2J dielectric, KONNEKT � enables a low-loss, low inductance package capable of handling extremely high ripple currents in the hundreds of kilohertz. U2J is an extremely stable dielectric material that exhibits a negligible shift in capacitance with respect to voltage and a predictable and linear change in capacitance with reference to ambient temperature, with minimal aging effect. Capacitance change is limited to -750 ±120 ppm/°C from -55°C to +125°C. KONNEKT � can also be mounted in a low-loss orientation to further increasing its power handling capability. The low-loss orientation increases ripple current handling capabilities.

• Extremely high-power density and ripple current capability
• Extremely low equivalent series resistance (ESR)
• Extremely low equivalent series inductance (ESL)
• Operating temperature range of -55°C to +125°C
• No capacitance shift with voltage
• Low noise
• Surface mountable using standard MLCC reflow profiles
• Low-loss orientation option for higher current handling capability

Warnings Market demand for this product has caused an extension in lead times, delivery dates may fluctuate

Product details

Capacitance	0.94µF
Voltage Rating	50V
Ceramic Capacitor Case	1812 [4532 Metric]
Product Range	KONNEKT ™
Capacitance Tolerance	± 5%
Dielectric Characteristic	U2J
Stacking Height	3.5mm
Operating Temperature Min	-55°C
Operating Temperature Max	125°C
Automotive Qualification Standard	-
RoHS Phthalates Compliant	To Be Advised

Other details

Brand	KEMET
Part Number	C1812C944J5JLC7805
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
