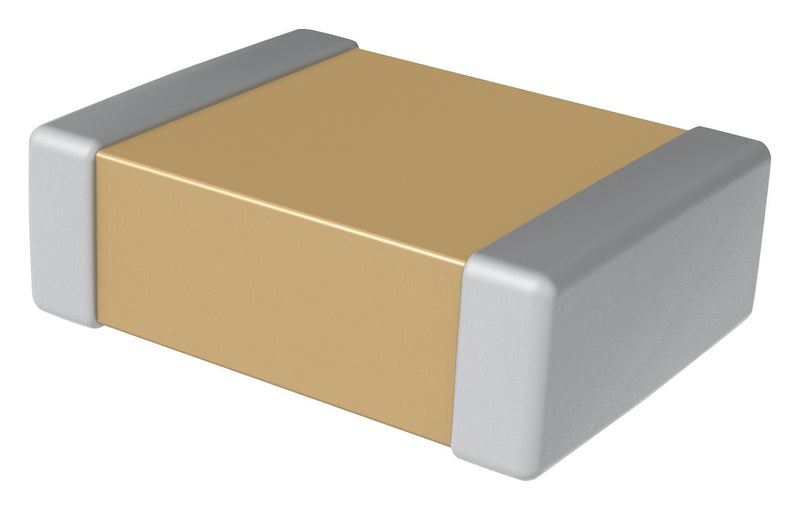

Kemet C1812C475K3RACTU SMD Multilayer Ceramic Capacitor 4.7 µF 25 V 1812 [4532 Metric] ± 10% X7R C Series

KEMET's X7R dielectric features a 125°C maximum operating temperature and is considered "temperature stable." The X7R dielectric is a Class II material. Components of this classification are fixed, ceramic dielectric capacitors suited for bypass and decoupling applications or for frequency discriminating circuits where Q and stability of capacitance characteristics are not critical. X7R exhibits a predictable change in capacitance with respect to time and voltage and boasts a minimal change in capacitance with reference to ambient temperature. Capacitance change is limited to ±15% from -55°C to +125°C.

• Operating temperature range from -55°C to +125°C
• Capacitance range includes E24 decade values from 10pF to 47µF
• DC voltage ratings from 6.3V to 250V
• EIA 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220 and 2225 case sizes available
• Temperature stable dielectric
• Lead (Pb)-free, RoHS, and REACH Compliant
• Temperature stable dielectric

Warnings Market demand for this product has caused an extension in lead times, delivery dates may fluctuate

Product details

Capacitance	4.7µF
Voltage Rating	25V
Ceramic Capacitor Case	1812 [4532 Metric]
Capacitance Tolerance	± 10%
Dielectric Characteristic	X7R
Product Range	C Series KEMET
Operating Temperature Min	-55°C
Operating Temperature Max	125°C
Automotive Qualification Standard	-
MSL	MSL 1 - Unlimited
RoHS Phthalates Compliant	Yes

Other details

Brand	KEMET
Part Number	C1812C475K3RACTU
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
Enhanced Product Overview EN
