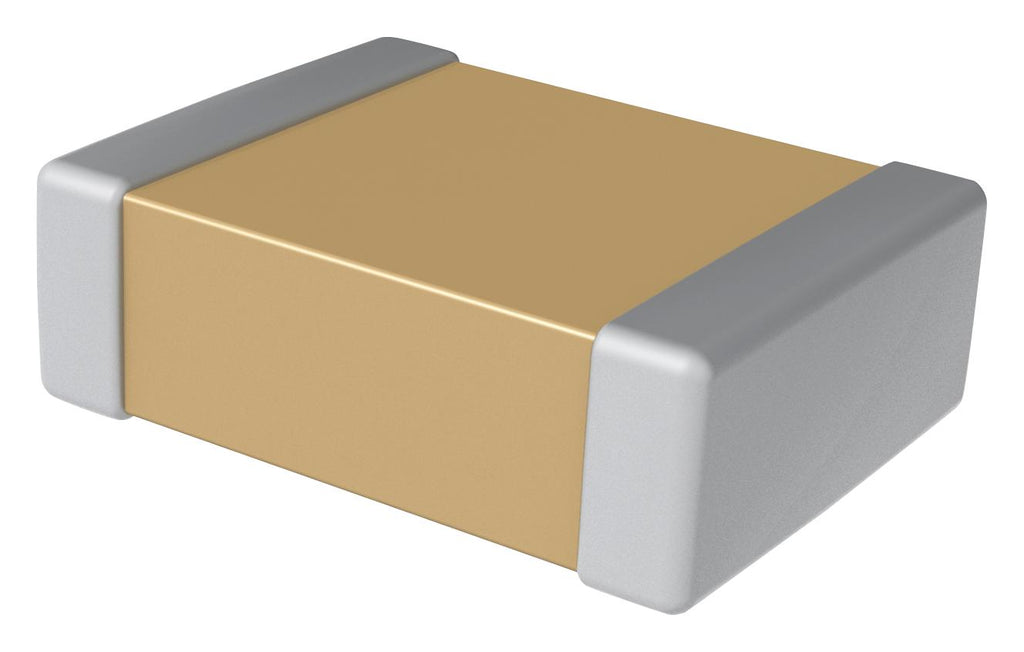

Kemet C1210C474KARACAUTO SMD Multilayer Ceramic Capacitor 0.47 µF 250 V 1210 [3225 Metric] ± 10% X7R AEC-Q200 C Series

KEMET's Automotive Grade Series surface mount capacitors in X7R dielectric are suited for a variety of applications requiring proven, reliable performance in harsh environments. Whether under-hood or in-cabin, these devices emphasize the vital and robust nature of capacitors required for mission and safety critical automotive circuits. Stricter testing protocol and inspection criteria have been established for automotive grade products in recognition of potentially harsh environmental conditions. X7R dielectric features a 125°C maximum operating temperature and is considered "temperature stable".

• AEC-Q200 automotive qualified
• Capacitance range includes E24 decade values from 10pF to 22µF
• EIA 0402, 0603, 0805, 1206, 1210, 1812 and 2220 case sizes available
• DC voltage rating of 6.3V to 250V
• Operating temperature range from -55°C to 125°C
• Capacitance tolerances of ±5%, ±10% and ±20%
• Non-polar device, minimize installation concerns

Warnings Market demand for this product has caused an extension in lead times, delivery dates may fluctuate

Product details

Capacitance	0.47µF
Voltage Rating	250V
Ceramic Capacitor Case	1210 [3225 Metric]
Capacitance Tolerance	± 10%
Dielectric Characteristic	X7R
Product Range	AEC-Q200 C Series
Operating Temperature Min	-55°C
Operating Temperature Max	125°C
Automotive Qualification Standard	AEC-Q200
MSL	MSL 1 - Unlimited
RoHS Phthalates Compliant	Yes

Other details

Brand	KEMET
Part Number	C1210C474KARACAUTO
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
