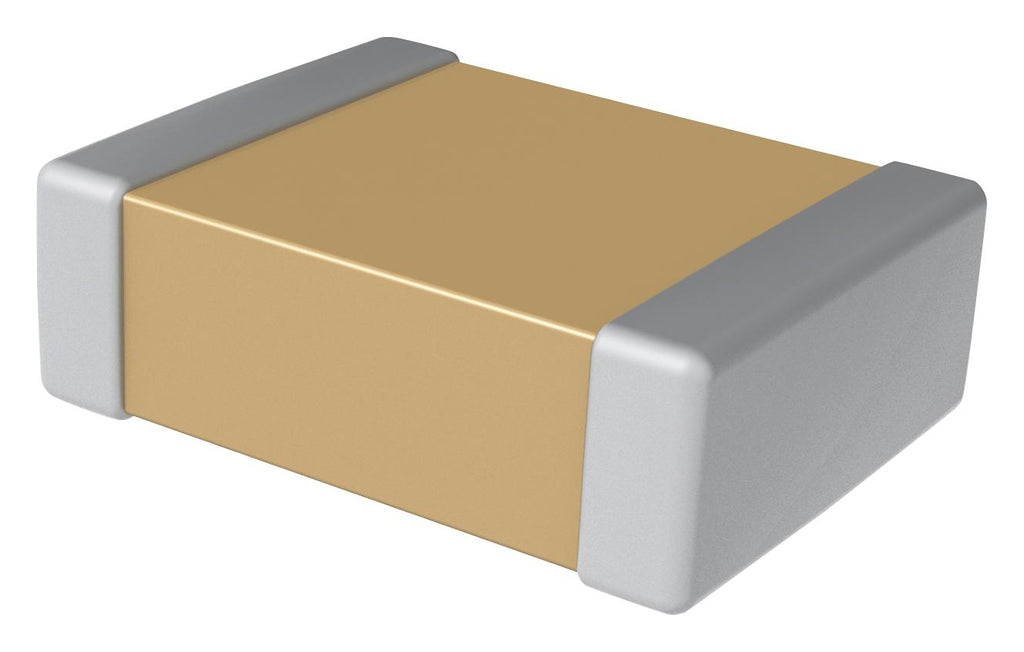

Kemet C1206C224F3JACT500 SMD Multilayer Ceramic Capacitor 0.22 ?F 25 V 1206 [3216 Metric] ± 1% U2J C Series

U2J is an extremely stable dielectric material for Class I multilayer ceramic capacitors (MLCCs). Ceramic capacitors using the U2J dielectric retain over 99% of nominal capacitance at full rated voltage. When referenced to ambient temperature, U2J ceramic capacitors provide a predictable and linear change in capacitance. Additionally, U2J ceramic capacitors extend the available capacitance of Class I MLCCs into a range previously only available to Class II dielectric materials such as X5R and X7R. Components of this classification are temperature compensating and are suited for resonant circuit applications or those where Q and stability of capacitance characteristics are required.

• Higher cap value than C0G
• Linear capacitance change with respect to time
• Preferred capacitance solution at line frequencies and into the MHz range
• Retains over 99% of nominal capacitance at full rated voltage
• Low dissipation factor DF < 0.1%
• Low ESR and ESL
• High thermal stability
• High ripple current capability
• Non-polar device, minimizing installation concerns
• Operating temperature range of -55?C to +125?C

• Operating temperature range of -55?C to +125?C

Product details

Capacitance	0.22?F
Voltage Rating	25V
Ceramic Capacitor Case	1206 [3216 Metric]
Capacitance Tolerance	? 1%
Dielectric Characteristic	U2J
Product Range	U2J C Series
Operating Temperature Min	-55?C
Operating Temperature Max	125?C
Automotive Qualification Standard	-
MSL	MSL 1 - Unlimited

Other details

Brand	KEMET
Part Number	C1206C224F3JACT500
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
