The ALS70/71 high CV series of the screw terminal capacitors offer tremendous performance and reliability in a wide range of case sizes and voltage ratings, featuring high ripple currents and long life performance. Volumetric efficiency ensures the maximum capacitance capability in a smaller size. They are ideally suited for industrial and commercial applications, demanding high reliability and long life expectancy such as frequency converters, uninterruptible power supply (UPS) systems and switch mode power supplies (SMPS).
- Long life, up to 20,000 hours at +85°C (Vr, Ir applied)
- High ripple current
- Excellent surge voltage capability
- PET sleeve (recognized to UL: QMTR2 (UL No. E358957))
- Maximum capacitance capability in a smaller size
- Operational Life: 20000 Hrs
Footnotes Is not shipped with any hardware or accessories/not supplied
Product details
| Capacitance |
0.1F |
| Voltage Rating |
100V |
| Product Range |
ALS70 Series |
| Lifetime @ Temperature |
20000 hours @ 85°C |
| Capacitance Tolerance |
± 20% |
| Capacitor Terminals |
Screw |
| Diameter |
77mm |
| Lead Spacing |
31.8mm |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
85°C |
| Height |
194mm |
| ESR |
0.008ohm |
| Automotive Qualification Standard |
- |
Other details
| Brand |
KEMET |
| Part Number |
ALS70A104NS100 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
| CAD Multiple Formats EN |
|
| One Page Summary EN |
|

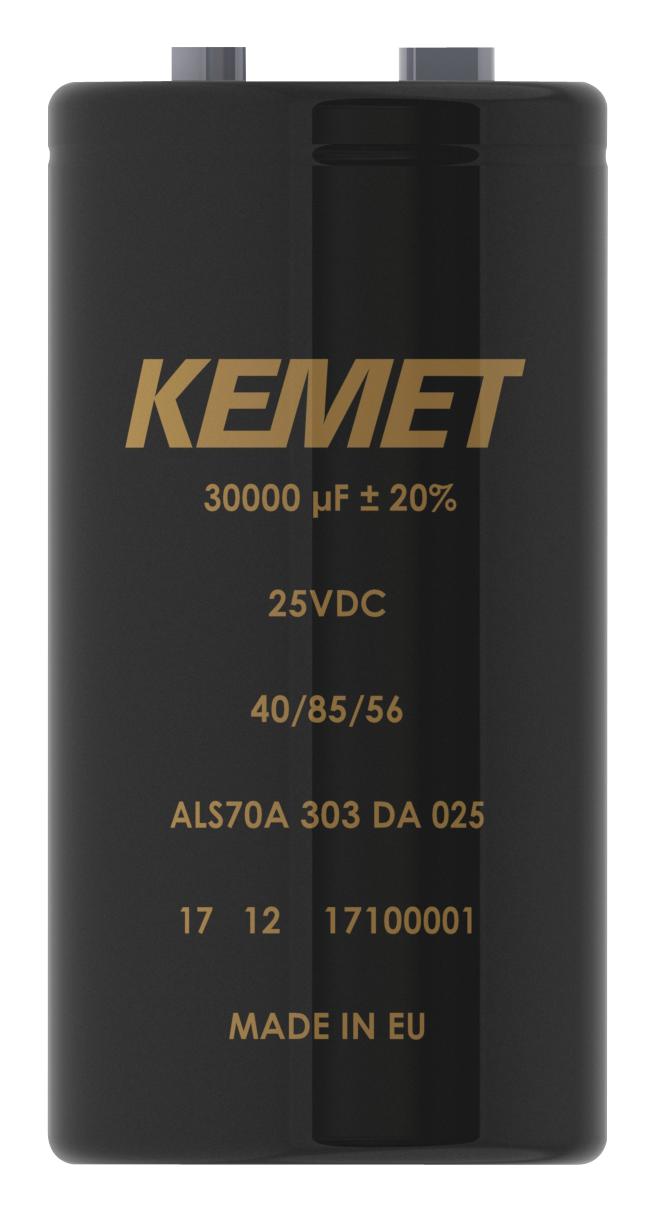

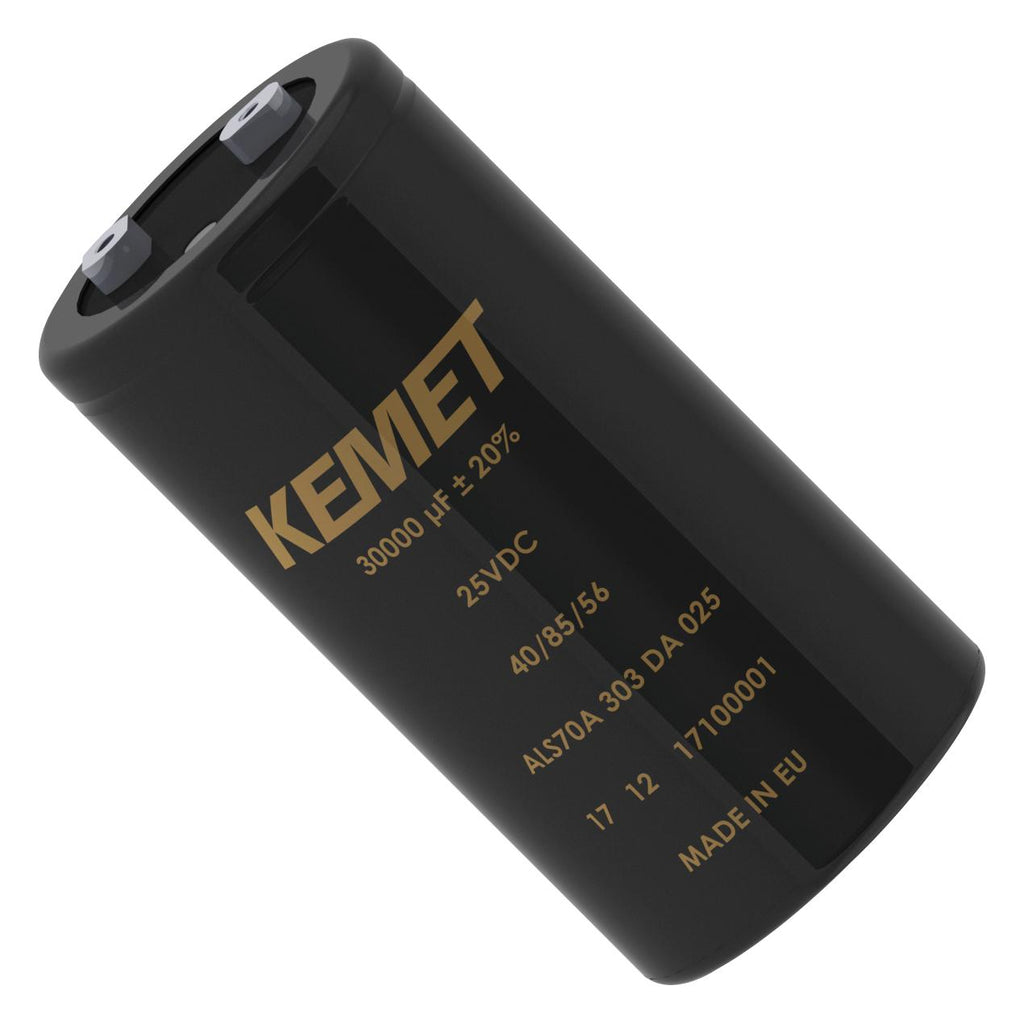

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
