KEMET's ALS40/41 Series of screw terminal capacitors features the same high ripple currents and long-life characteristics as the ALS30/31 Series but can operate at higher temperatures. They are similarly suited for high reliability and long-life applications such as frequency converters, uninterruptible power supply (UPS) systems, and switch mode power supplies (SMPS) but the extended temperature range allows increased ripple currents at lower temperatures. Typical applications for KEMET's ALS40/41 Series of capacitors include smoothing, energy storage or pulse operation in telecommunication demanding power supplies, process control, frequency inverters, drives, traction, welding, and measuring.
- Compact size
- Long life, up to 9,000 hours at +105°C (VR, IR applied)
- High ripple current
- Excellent surge voltage capability
- Customer made designs available upon request
Footnotes Is not shipped with any hardware or accessories/not supplied
Product details
| Capacitance |
2200µF |
| Voltage Rating |
100V |
| Product Range |
ALS40 Series |
| Lifetime @ Temperature |
6000 hours @ 105°C |
| Capacitance Tolerance |
± 20% |
| Capacitor Terminals |
Screw |
| Diameter |
36mm |
| Lead Spacing |
12.8mm |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
105°C |
| Height |
62mm |
| ESR |
0.056ohm |
| Automotive Qualification Standard |
- |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
KEMET |
| Part Number |
ALS40A222DB100 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|

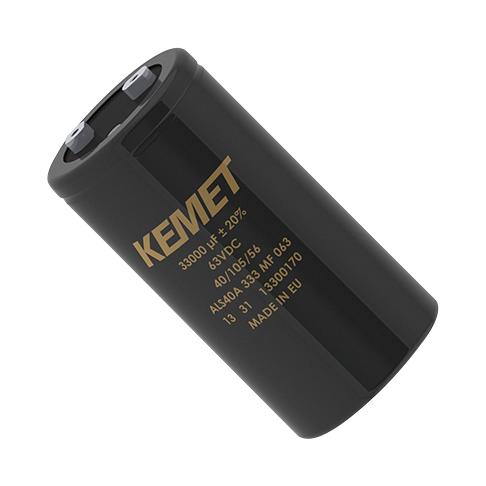

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
