The ALS31 series screw terminal Aluminium Electrolytic Capacitor covers a wide range of case sizes, voltage ratings featuring high ripple currents and long-life performance. They are ideally suited for industrial and commercial applications demanding high reliability and long-life expectancy such as frequency converters, uninterruptible power supply (UPS) systems and switch mode power supplies (SMPS). Applications include smoothing, energy storage or pulse operation in telecommunication demanding power supplies, process control, AC motor control, traction, welding and measuring.
- Compact size
- Long Life
- 25 to 500VDC Rated voltage range
- 100 to 680000µF Capacitance
- High ripple current
- Excellent surge voltage capability
- Optimized designs available
- Operational Life: 20000 Hrs
Product details
| Capacitance |
6800µF |
| Voltage Rating |
450V |
| Product Range |
ALS31 Series |
| Lifetime @ Temperature |
20000 hours @ 85°C |
| Capacitance Tolerance |
± 20% |
| Capacitor Terminals |
Screw |
| Diameter |
77mm |
| Lead Spacing |
31.8mm |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
85°C |
| Height |
220mm |
| ESR |
0.021ohm |
| Automotive Qualification Standard |
- |
Other details
| Brand |
KEMET |
| Part Number |
ALS31C682NT450 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD Multiple Formats EN |
|
| Manufacturer Catalogue EN |
|

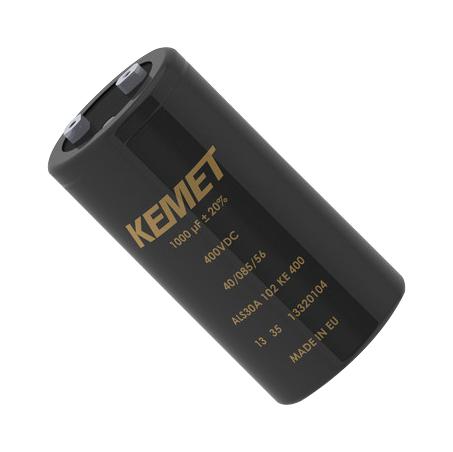

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
