Description

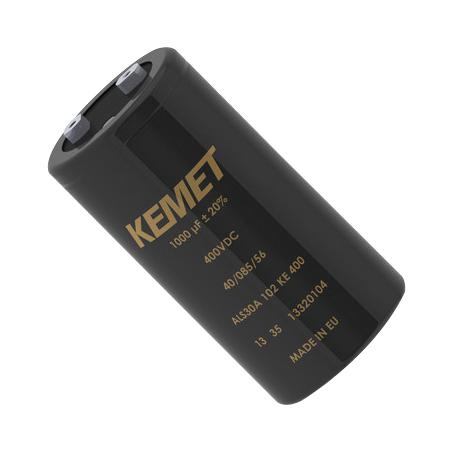

The ALS31 series screw terminal Aluminium Electrolytic Capacitor covers a wide range of case sizes, voltage ratings featuring high ripple currents and long-life performance. They are ideally suited for industrial and commercial applications demanding high reliability and long-life expectancy such as frequency converters, uninterruptible power supply (UPS) systems and switch mode power supplies (SMPS). Applications include smoothing, energy storage or pulse operation in telecommunication demanding power supplies, process control, AC motor control, traction, welding and measuring.
- Compact size
- Long Life
- 25 to 500VDC Rated voltage range
- 100 to 680000µF Capacitance
- High ripple current
- Excellent surge voltage capability
- Optimized designs available
- Operational Life: 11000 Hrs
Footnotes
Is not shipped with any hardware or accessories/not supplied
Product details
| Capacitance: 470µF |
| Voltage(DC): 400V |
| Voltage(AC): - |
| Capacitance Tolerance: ± 20% |
| Capacitor Terminals: Screw |
| Lifetime @ Temperature: 11000 hours @ 85°C |
| Polarity: Polar |
| Product Range: ALS31 Series |
| Product Diameter: 36mm |
| Product Height: 82mm |
| Lead Spacing: 12.7mm |
| ESR: 0.267ohm |
| Ripple Current: 7.1A |
| Operating Temperature Min: -40°C |
| Leakage Current: 1.128mA |
| Operating Temperature Max: 85°C |
| Qualification: - |
Other details
| Brand | KEMET |
| Part Number | ALS31A471DE400 |
| Quantity | Each |
| Technical Data Sheet EN |  |
