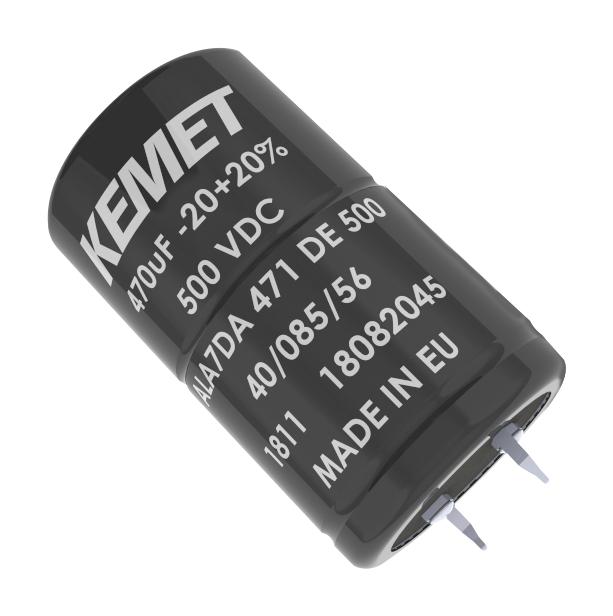

The KEMET ALA Snap-In Capacitors are designed for automotive applications. They can withstand vibration up to 20 G in accordance with the demanding requirements of the Automotive Electronics Council's AEC-Q200 qualification. The ALA7D capacitance values cover a range from 240 to 820 µF and voltage ranges of 400 to 500 V.
- Designed for automotive usages
- Vibration proof
- AEC-Q200
- Long life, up to 15,000 hours at +85°C (Vr Ir applied)
- High ripple current
- Excellent surge voltage capability
- PET sleeve recognized to UL QMTR2, UL No. E358957
- Optimized designs available upon request
Product details
| Capacitance |
470µF |
| Voltage Rating |
450V |
| Product Range |
ALA7D Series |
| Lifetime @ Temperature |
15000 hours @ 85°C |
| Capacitance Tolerance |
± 20% |
| Capacitor Terminals |
Quick Connect, Snap-In |
| Diameter |
35mm |
| Lead Spacing |
10mm |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
85°C |
| Height |
40mm |
| ESR |
0.327ohm |
| Automotive Qualification Standard |
AEC-Q200 |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
KEMET |
| Part Number |
ALA7DA471DD450 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
