Product details
| Capacitance:
470µF
|
| Voltage(DC):
2V
|
| Capacitor Case / Package:
2917 [7343 Metric]
|
| ESR:
0.009ohm
|
| Lifetime @ Temperature:
3000 hours @ 125°C
|
| Capacitance Tolerance:
± 20%
|
| Capacitor Mounting:
Surface Mount
|
| Capacitor Terminals:
L-Lead
|
| Ripple Current:
6.75A
|
| Product Diameter:
-
|
| Product Length:
7.3mm
|
| Product Width:
4.3mm
|
| Product Height:
1.9mm
|
| Operating Temperature Min:
-55°C
|
| Operating Temperature Max:
125°C
|
| Product Range:
A798 AO-CAP Series
|
Other details
| Brand |
KEMET |
| Part Number |
A798V477M002PTE009 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

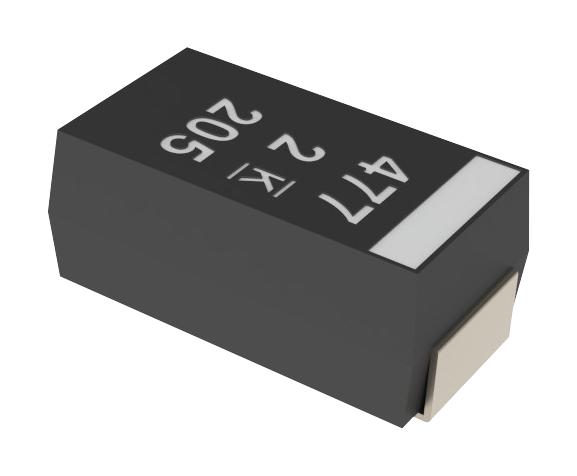

![KEMET A798V477M002PTE009 Polymer Aluminium Electrolytic Capacitor, 470 µF, 2 V, 2917 [7343 Metric], 0.009 ohm](http://www.tanotis.com/cdn/shop/files/de05d50045909eef5425973a5ee1cbf4_c0d703ae-f706-4883-8a7a-dac9fcf02faa_{width}x.jpg?v=1706948942)
