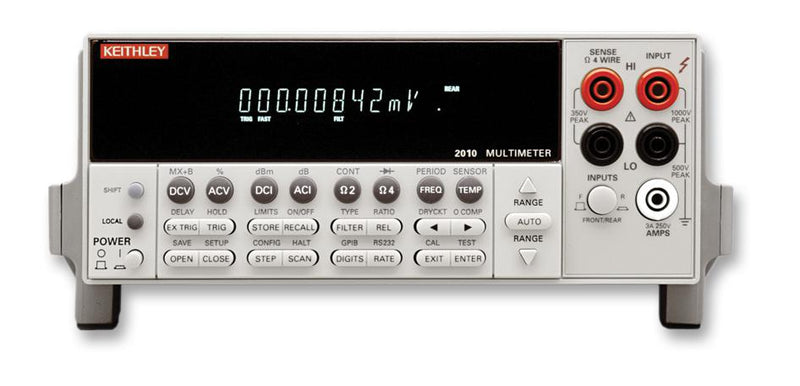

The 71/2 digit Model 2010 Low Noise Multimeter combines high resolution with the high speed and accuracy needed for production applications such as testing precision sensors, transducers, A/D and D/A converters, regulators, references, connectors, switches, and relays.
- 100nV rms noise floor
- 7ppm DCV repeatability
- Built-in 10-channel scanner mainframe
- Dry circuit and low power measurement mode
- 15 measurement functions including support for RTD and thermocouple temperature measurements
- Built-in ratio measurement function
Applications
Test & Measurement, Maintenance & Repair
Contents
User manual, Service manual and Safety test leads
Footnotes In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
Product details
No. of Digits |
7.5 |
DMM Connectivity |
GPIB, RS232, USB |
Current Measure AC Max |
- |
Voltage Measure AC Max |
1kV |
Resistance Measure Max |
0.1Gohm |
Product Range |
Keithley 2000 Series |
Current Measure DC Max |
3A |
Voltage Measure DC Max |
750V |
Manufacturer Warranty |
- |
DMM Functions |
Current, Voltage, Frequency, Resistance, Temperature |
Plug Type |
EU, SWISS, UK |
Other details
Brand |
KEITHLEY |
Part Number |
2010/E |
Quantity |
Each |
Technical Data Sheet EN |
|
Manufacturer Product Page EN |
|
Manufacturer Catalogue EN |
|
One Page Summary EN |
|
