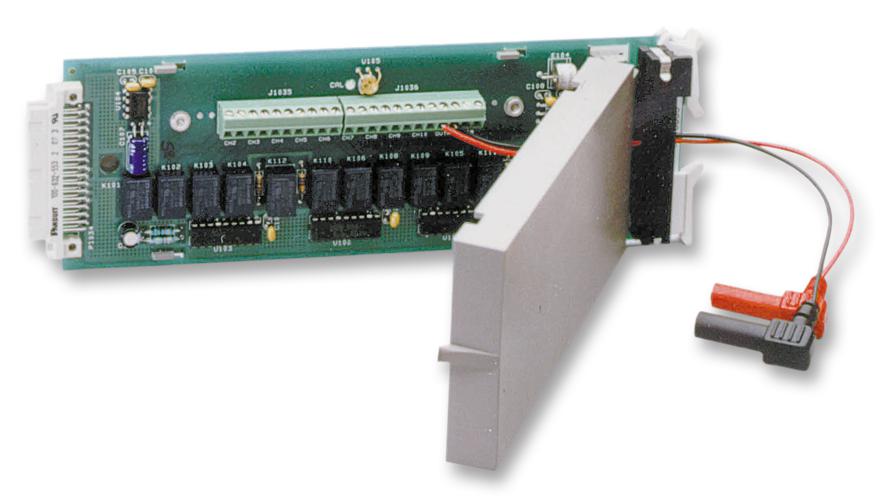

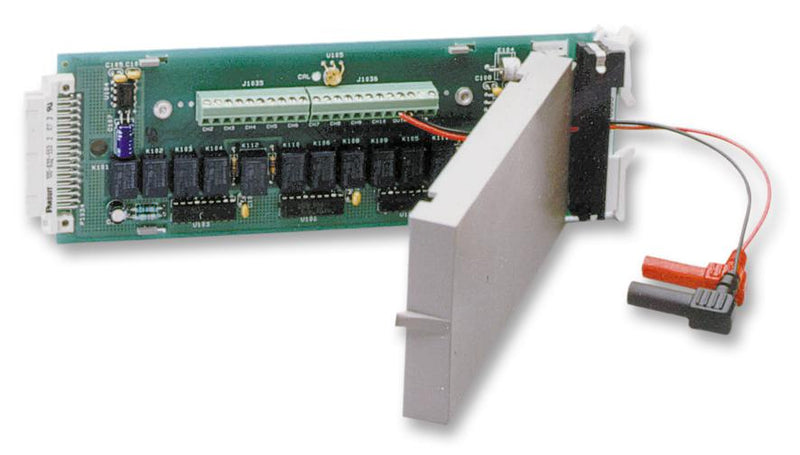

The 2000-SCAN from Keithley is a 10 channel, general purpose scanner card. This scanner card designed to be installed in the model 2000 multimeter, model 2001 multimeter and model 2002 multimeter.
- Ten channels of 2 pole relay input
- Channels configurable for 4-pole operation
- Multiplex one of ten 2 pole or one of five 4 pole channels into a model 2000/2001/2002 multimeter
- Dimension is 21mm high x 72mm wide x 221mm and weight is 0.4g
- Maximum voltage between any two terminals is 200V peak
- Common mode voltage is 350V peak between any terminal and earth
- Actuation time is 2.5ms maximum on/off
- 110VDC, 1A switched, 30VA maximum (resistive load) DC signal
- 125VAC rms or 175VAC peak, 100KHz maximum, 1A switched, 62.5VA maximum (resistive load) AC signal
Contents
Model 2000-SCAN scanner card, Instruction manual, CA-109 test lead set for output connections (two red, two black).
Product details
| Accessory Type |
Scanner Card |
| For Use With |
Keithley 2000, 2001, 2002, 2010 Digital Multimeters |
| Product Range |
- |
Other details
| Brand |
KEITHLEY |
| Part Number |
2000-SCAN |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Product Page EN |
|
