Description

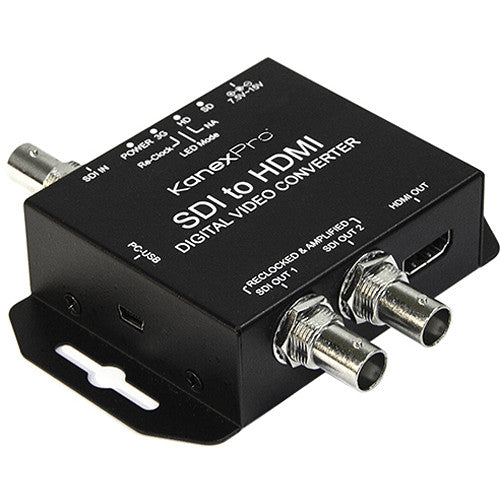

Compact and all-metal, the Kanex Pro SDI to HDMI & Dual SDI Converter is a rugged, mobile monitoring solution for broadcasting, surveillance, and other professional applications. It converts a single 3G/HD/SD-SDI input to an HDMI output and also provides dual 3G/HD/SD-SDI loop outputs backed with signal equalization and re-clocking. It supports up to 1080p60 resolution and auto-detects the input signal and converts it to the correct output format.
Key Features- Compact, all-metal
- 3G/HD/SD-SDI input to HDMI and dual 3G/HD/SD-SDI outputs
- Supports up to 1080p60 resolution
- Signal equalization and re-clocking
- Auto-detects the input signal
- Auto-switches between 3G, HD, and SD-SDI standards
- 2-channel audio
- Supports conversion to SMPTE 425M Level A, 1080p50/59.94/60, 4:2:2, 10-bit
- Supports cascading of multiple SDI signals in application
- Locking power supply
- Integrated mounting ears
- 3-pin dip switch (Re-clock/LED mode/NA)
| Input | 1 x 3G/HD/SD-SDI (75 Ohms inter-locked) |
| Output | 1 x HDMI Type A 2 x 3G/HD/SD-SDI (75 Ohms inter-locked) |
| Supported Resolutions | 1080p60/50/30/25/24 1080i60/50 720p60/50/30/25/24 576i 480i |
| SDI Format | SD-SDI (SMPTE 259M) HD-SDI (SMPTE 292M) 3G-SDI (SMPTE 424M / SMPTE 425M) |
| Audio Support | 2-channel |
| Transmission Distance | 3G: Up to 427 ft (130 m) HD: Up to 558 ft (170 m) SD: Up to 984 ft (300 m) *RG59 cable is required for SDI transmission (not included); 75 Ohms coaxial cable recommended |
| DIP Switch | 3-pin (Re-clock/LED mode/NA) |
| Power Supply | 100 - 240 VAC, 6 - 15 VDC |
| Firmware Updates | micro-USB port |
| Housing | SECC |
| Operating Temperature | 0 to 122°F (0 to 50°C) |
| Operating Humidity | 10 to 85% RH (non-condensing) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Regulatory Approvals | FCC, CE, UL (converter and power supply) |
| Dimensions | 4.1 x 2.5 x 1" (10.4 x 6.3 x 2.6 cm) |
| Weight | 0.33 lb (150 g) |
| Package Weight | 0.9 lb |
| Box Dimensions (LxWxH) | 9.3 x 5.9 x 1.8" |
In the Box
- KanexPro SDI to HDMI & Dual SDI Converter with Signal EQ and Re-Clocking
- 5 VDC Power Supply
- Limited 1-Year Warranty
