Description

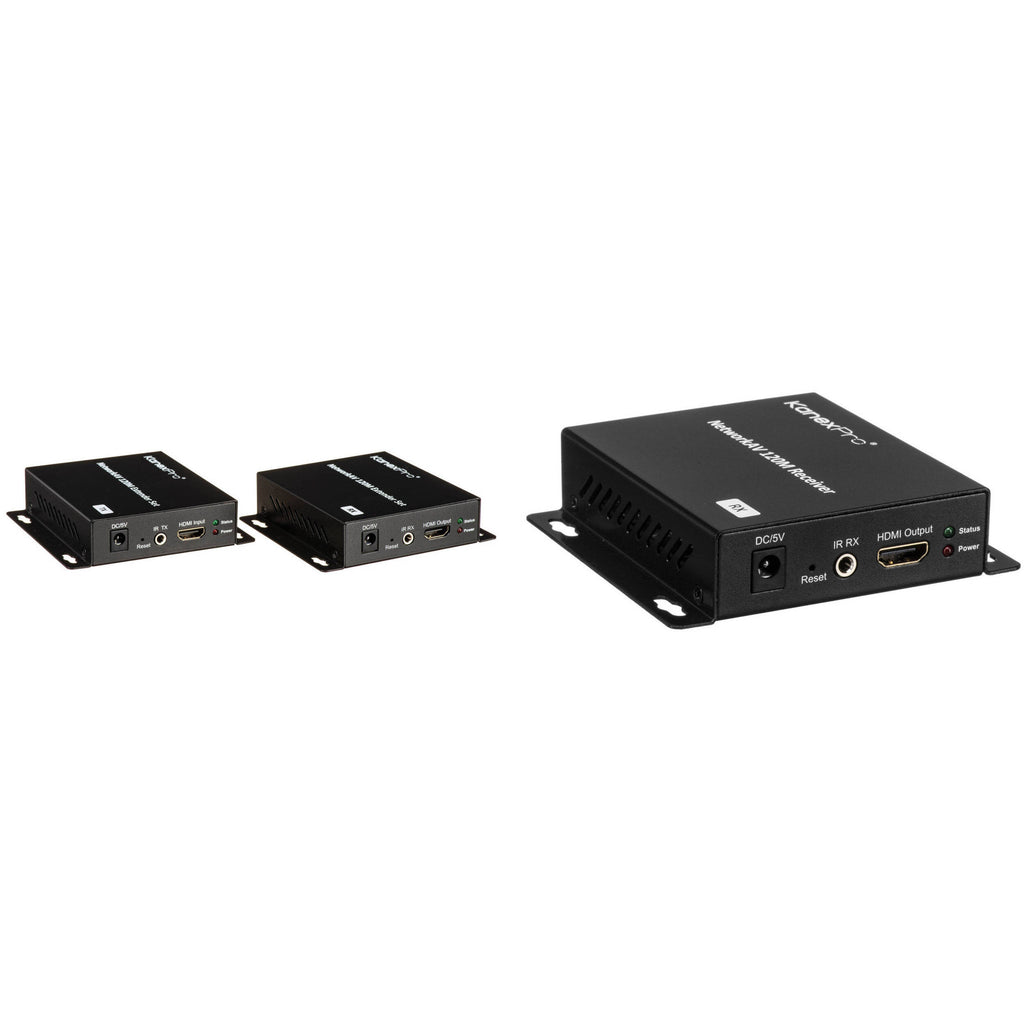

Extend and distribute your HDMI video signals using your existing local area network (LAN) with this KanexPro NetworkAV HDMI over IP Extender Extender Set with 2 x Receivers. Consisting of one transmitter, two receivers, and power supplies for the units, this kit can either extend an HDMI signal by itself or bolster an existing video-over-IP network. Ethernet cables enable video transmission over longer distances than conventional HDMI cables, up to 394' in this case.

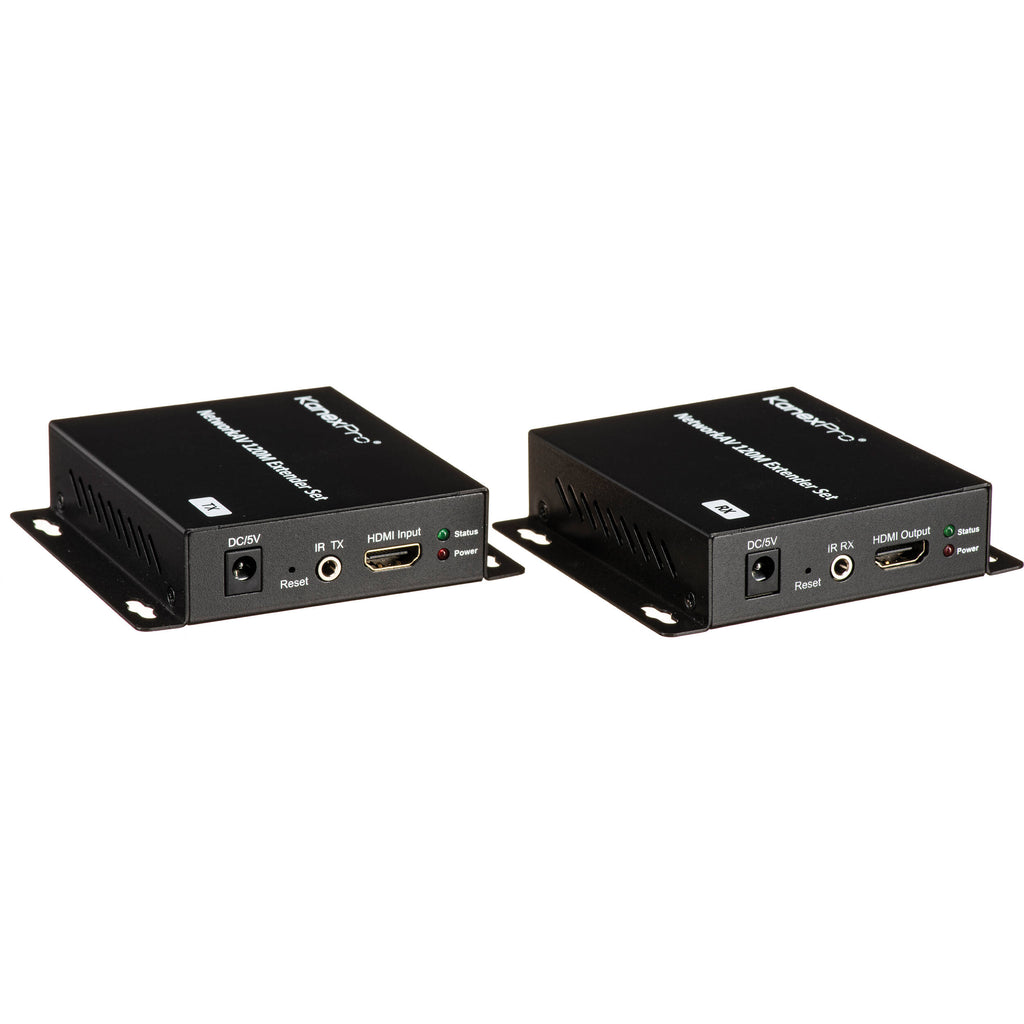

Extend and distribute HDMI video signals over a local area network (LAN) with this KanexPro NetworkAV HDMI over IP Extender Transmitter/Receiver Set. Consisting of a transmitter, a receiver, and power supplies for the units, this kit can either extend an HDMI signal by itself or bolster an existing video-over-IP network. Ethernet allows video transmission over longer distances than normally allowed by conventional HDMI cables, up to 394' in this case. Since the video is transmitted over IP, standard networking equipment can be used to distribute video. The ability to distribute video from a single source to many displays through an Ethernet switch is great for digital signage and event-space coverage. Multimedia applications can serve video from a selection of sources to a single display using the simple front-panel interface.

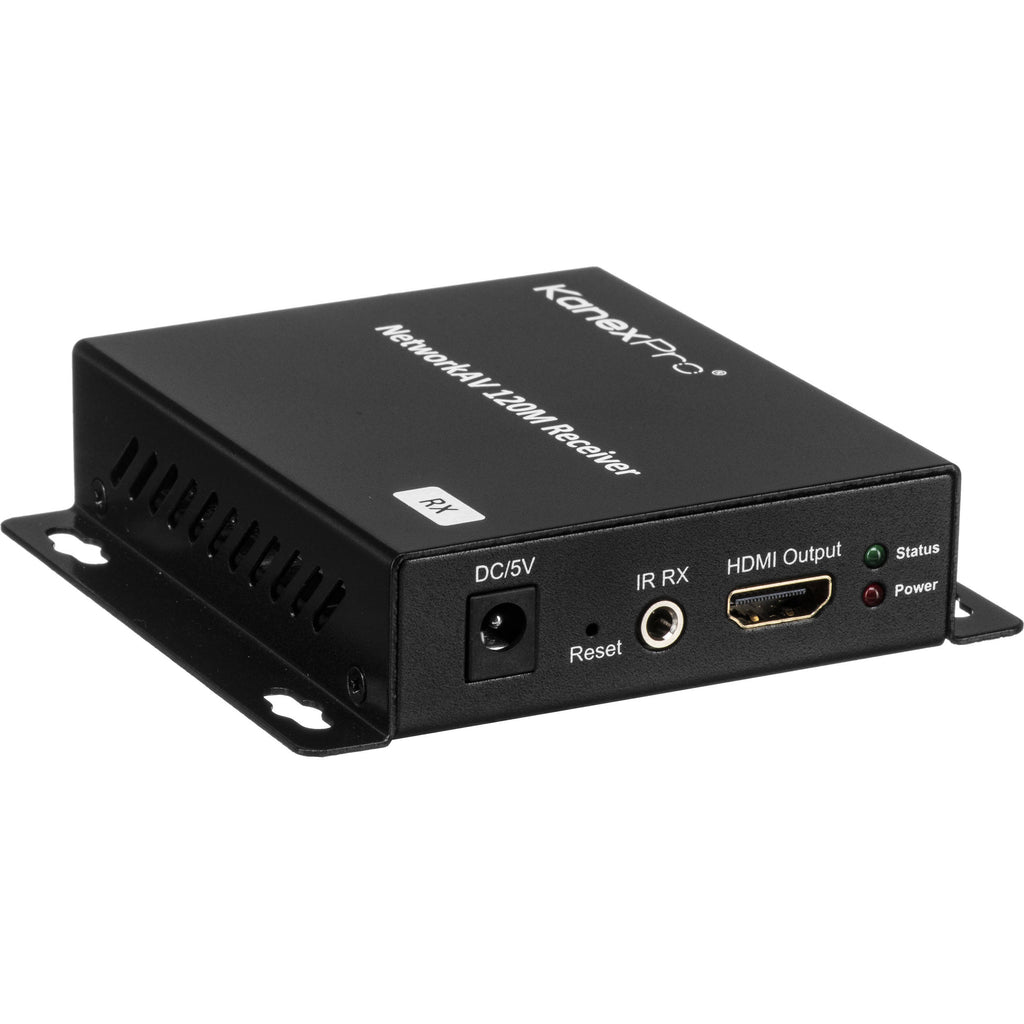

Designed to receive video over IP networks, the KanexPro NetworkAV 120M Receiver can accept SD and HD signals over Ethernet from up to 393' away. Useful in situations requiring many displays for large coverage areas, such as digital signage and convention setups, both video and audio can be routed to the receiver through the larger IP video infrastructure using the receiver's IP address. IR signals can be passed through to the source, so remote control can be maintained. Using Ethernet to distribute video signals allows for HDCP protection to be maintained while removing the restrictive HDMI distance limitations. Additionally, video can be distributed over standard Ethernet switches, all without any compression, as the video is never converted or modified.
Items Included
- KanexPro NetworkAV HDMI over IP Extender Transmitter/Receiver Set
- Transmitter
- Receiver
- 2 x Power Supply
- Limited 1-Year Manufacturer Warranty
- KanexPro NetworkAV 120M Receiver
- Power Supply
- IR Receiver Cable
- Limited 3-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
KanexPro NetworkAV HDMI over IP Extender Transmitter/Receiver Set
| Inputs |
Transmitter:
1 x HDMI Type-A 1 x 3.5mm, IR Receiver: 1 x RJ-45, Ethernet |
| Outputs |
Transmitter:
1 x RJ-45, Ethernet Receiver: 1 x HDMI Type-A 1 x 3.5mm, IR |
| Supported Video Resolutions |
1080p
1080i 720p 576p 480p NTSC PAL |
| Transmission Distance |
394' / 120 m
|
| Video Signal |
Input Video Signal: 0.5-1 VDC, P-P
Input DCC Signal: 5 VDC P-P (TTL) |
| Power Consumption |
3 W (maximum) per unit
|
| Operating Temperature |
23 to 95?F / -5 to 35?C
|
| Humidity |
5-90% RH, non-condensing
|
| Dimensions |
4.1 x 3.7 x 1" / 10.3 x 9.4 x 2.5 cm per unit
|
| Weight |
7.8 / 220 g per unit
|
| Package Weight |
2.15 lb
|
| Box Dimensions (LxWxH) |
8.2 x 6.3 x 4.5"
|
