Description

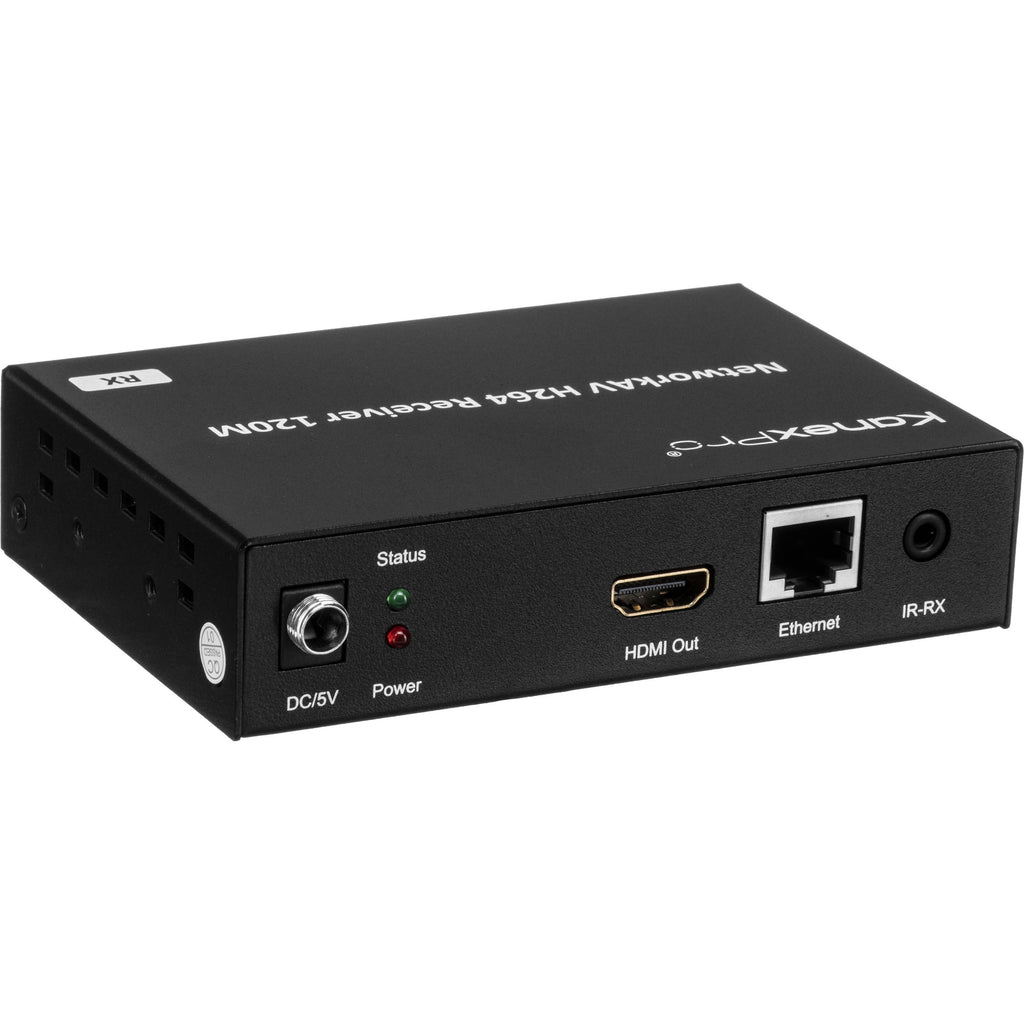

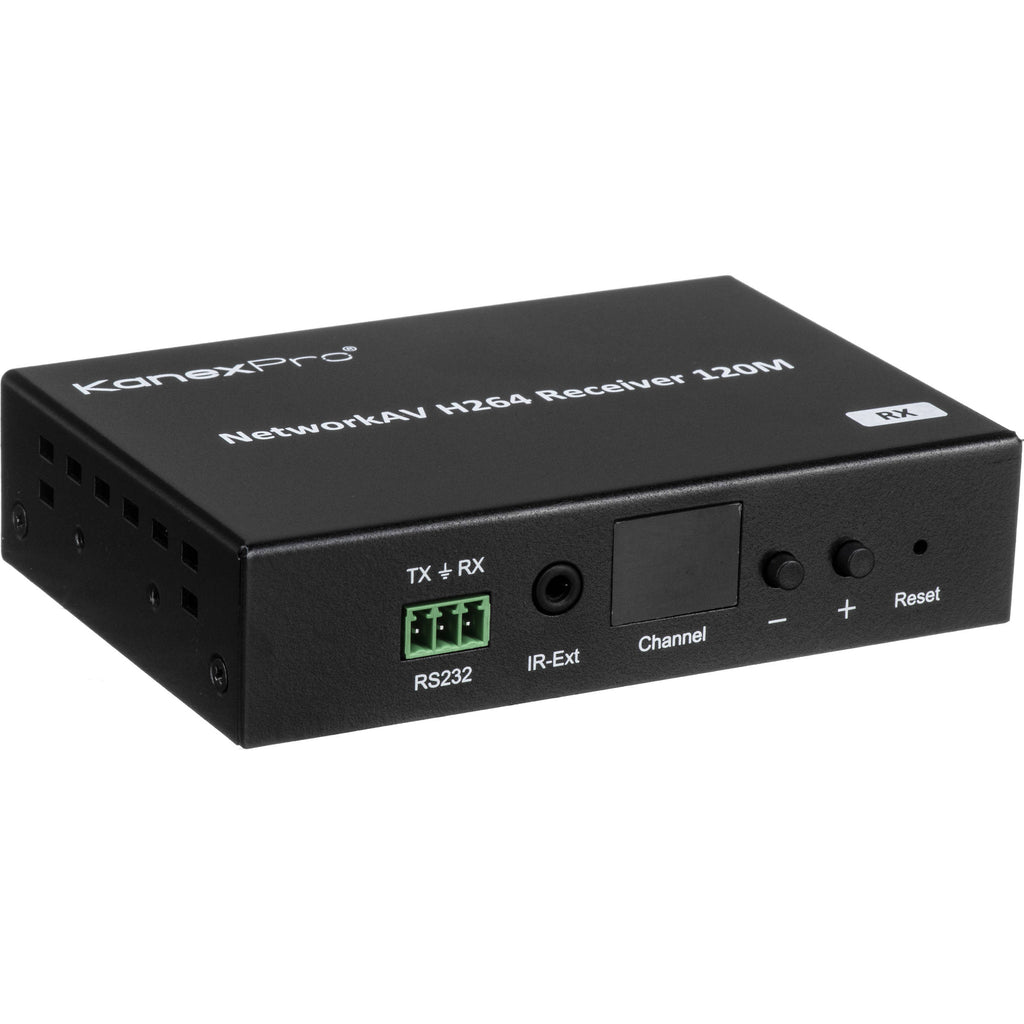

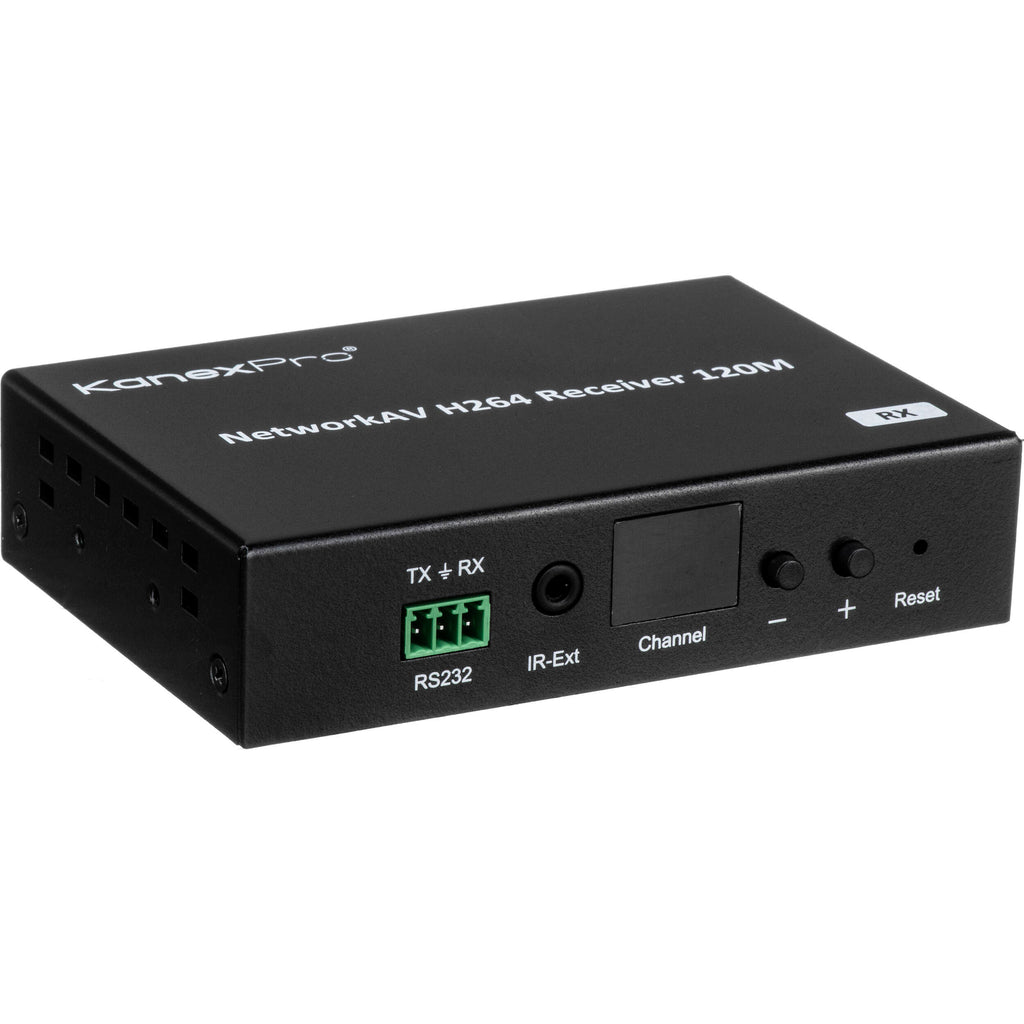

KanexPro EXT-AVIPH264 Overview
Working in conjunction with a separately available transmitter, or within an established video network, the KanexPro NetworkAV H.264 HDMI over IP Receiver can receive HD video signals over Ethernet for display on a monitor, television, or projector. Using a H.264 compression, Full HD resolution can be maintained without bogging down the network. Since the video is transmitted over IP, standard networking equipment can be used to distribute video. The ability to distribute video from a single source to many displays through an Ethernet switch is great for digital signage and event-space coverage. Multimedia applications can serve video from a selection of sources to a single display using the simple front-panel interface. Other advantages of Ethernet are long cable runs up to 394', power delivery using PoE, and bidirectional IR and RS-232 control.
Note: Separately available power supply required if PoE is not provided by the network.
KanexPro EXT-AVIPH264 Specs
Inputs | 1 x RJ-45, Ethernet 1 x 3.5mm, IR |
Outputs | 1 x HDMI Type A |
Other I/O | 1 x 3-pin Phoenix, RS-232 1 x 3.5mm, IR ext |
Input Resolutions | 1080p at 24/25/29.97/30/50/59.94/60 Hz 1080i at 50 Hz 720p at 50/59.94/60 Hz 576p at 50 Hz 480p at 59.94/60 Hz NTSC PAL |
Protocol | H.264 over TCP/IP |
Transmission Distance | 394' / 120 m |
Audio Format | LPCM, 48 kHz sampling rate |
Bit-Rate | 15 Mbps |
IR Frequency | 38-56 kHz |
RS-232 | Baud Rate: 2400 bps (default) |
Power Supply | 5 VDC, 1 A |
Power Consumption | 3 W (maximum) |
Operating Temperature | 23 to 95°F / -5 to 35°C |
Operating Humidity | 5-90% RH, non-condensing |
Dimensions | 4.7 x 3.1 x 1.1" / 12 x 8 x 2.8 cm |
Weight | 9.9 oz / 280 g |
Package Weight | 1.455 lb |
Box Dimensions (LxWxH) | 8.2 x 6.1 x 2.4" |
KanexPro EXT-AVIPH264 Reviews
