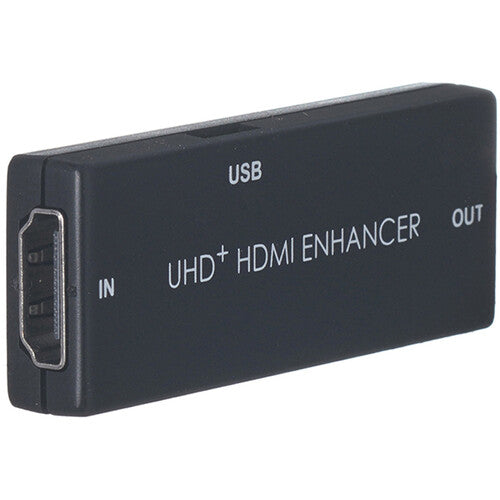

KanexPro RPT4K Overview
Expand or cascade HDMI 2.0 signals with this HDMI UHD 4K Cable Repeater from KanexPro, thanks to its HDMI input and output. The repeater supports up to UHD 4K video at 60 Hz and can extend those signals up to 16' per cable segment. The device can cascade the signal up to four times. This feature, in combination with the micro-USB power port, allows you to integrate active HDMI cables that require additional power to operate chipsets from Redmere or Spectra7 technology or legacy HDMI 1.x standards.
The unit can also be powered by 5V from standard HDMI signals. All functionality of the repeater is automatic, so there is no need for external controls. It supports LPCM digital, Bitstream, and HD Bitstream audio pass-through. A lightweight and compact construction makes for easy installation into your preexisting signal extension setup.
- 18 Gb/s bandwidth up to UHD 4K with HDR signals
- HDCP 1.x and 2.2 compliant
- Pass-through of 8-channel LPCM, Bitstream, and HD Bitstream audio formats
- Supports CEC and ARC bypass
- Reclocking allows for clean regenerated signals for transmission
- Micro-USB supports external 5V power supply
- Up to 4 layers of cascading with 5 cable segments
KanexPro RPT4K Specs
Interfaces
| Inputs |
1 x HDMI (HDMI 2.0) Female |
| Embedded Audio Input |
HDMI: 8-Channel |
| Outputs |
1 x HDMI (HDMI 2.0) |
Standards
| Reclocking |
Yes |
| HDCP Support |
Version 2.2 |
Transmission
| Max Transmission Distance |
UHD 4K:
16' / 4.9 m |
| Video Format |
HDMI (8-Bit 4:4:4)
UHD 4K: 60 fps
HDMI (12-Bit)
1080p: 60 fps |
Power
| Power Connector |
1 x USB Micro-B (5 VDC) Input |
| Power Consumption |
Device: (0.75 W) |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
| Operating Humidity |
20 to 90% (Non-Condensing) |
General
| Dimensions |
2.6 x 0.9 x 0.4" / 65 x 24 x 10 mm |
| Weight |
0.5 oz / 15 g |
Packaging Info
| Package Weight |
0.16 lb |
| Box Dimensions (LxWxH) |
7.05 x 2.45 x 1.75" |
