Description
KanexPro HD50C Overview
This HDMI over Cat 5e/6 Extender Set from KanexPro sends and receives HDMI 1.4 signals beyond the ability of a standard HDMI cable, extending both video and audio up to 230' over a single Cat 6/5e cable. The set consists of a transmitter and a receiver that can transmit 1080p30 video up to 230' over Cat 6 cable and can transmit 4K30 video up to 131' over Cat 6 cable. If using Cat 5e cable it can transmit 1080p video up to 197' and 4K30 video up to 115'. The transmitter can send signals with up to 10.2 Gb/s bandwidth.
In addition to being EDID compliant, the HDMI extender set supports HDCP 1.4 and cascading via an HDMI loop output on the transmitter unit. It passes through audio embedded in the HDMI signal and can support up to PCM7.1, Dolby True HD, and DTS HD formats. The units can also pass through IR signaling using the included IR blaster/receiver cables and the IR input/output ports. Power adapters are included to power each unit.
Key Features
Cat 6: 230' for 1080p, 131' for 4K30
Cat 5e: 197' for 1080p, 115' for 4K30
Applications
Residential installations
Educational Environments
Digital signage
In the Box

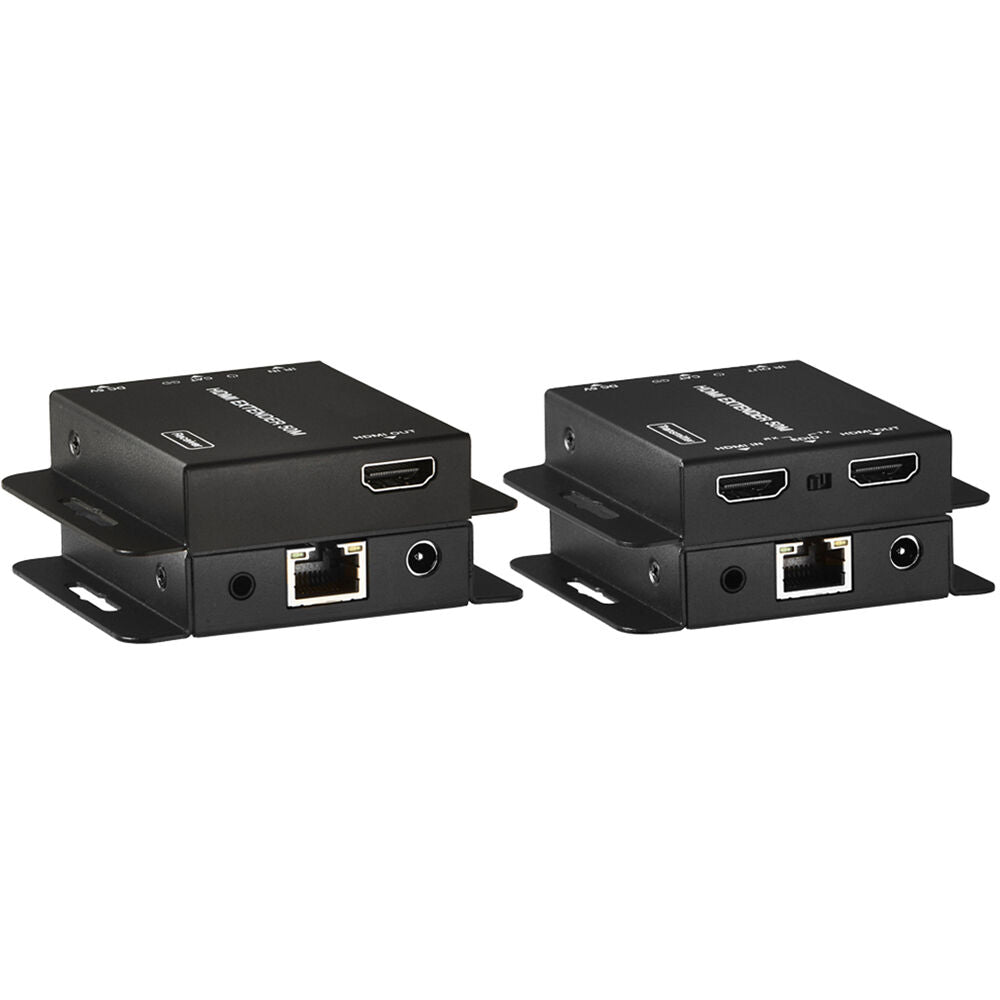

- KanexPro HDMI over Cat 5e/6 Extender Set (10.2 Gb/s)
- Transmitter Unit
- Receiver Unit
- 2 x 5 VDC Power Supply
- IR Blaster Cable (4.9')
- IR Receiver Cable (4.9')
- Limited 3-Year Warranty
KanexPro HD50C Specs
| Input Connectors | 1 x HDMI (HDMI 1.4) Female |
| Embedded Audio Input | HDMI RJ45 |
| Output Connectors | 1 x RJ45 Female 1 x HDMI (HDMI 1.4) Female |
| Transmitter Other I/O | 1 x 3.5 mm IR Input |
| Input Connectors | 1 x RJ45 Female |
| Output Connectors | 1 x HDMI (HDMI 1.4) Female |
| Embedded Audio Output | HDMI |
| Receiver Other I/O | 1 x 3.5 mm IR Output |
| HDCP Support | Version 1.4 |
| EDID Support | Yes |
| Max Transmission Distance | 1080p at 30 Hz: 229.7' / 70 m (via Cat 6) UHD 4K at 30 Hz: 131.2' / 40 m (via Cat 6) 1080p at 30 Hz: 196.9' / 60 m (via Cat 5e) UHD 4K at 30 Hz: 114.8' / 35 m (via Cat 5e) |
| Video Format | HDMI UHD 4K: 30 fps 1080p: 30 fps |
| DTS Compatibility | DTS-HD Master Audio |
| Dolby Compatibility | Dolby TrueHD |
| Supported Cable Types | Cat 5e/6 |
| Transmitter Power Connector | 1 x Barrel (5 VDC at 1 A) Input |
| Receiver Power Connector | 1 x Barrel (5 VDC at 1 A) Input |
| Transmitter Power Consumption | Device: (1.86 W) |
| Receiver Power Consumption | Device: (0.87 W) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% |
| Transmitter Dimensions | 3.1 x 2.7 x 0.6" / 79.5 x 69 x 16.5 mm |
| Receiver Dimensions | 3.1 x 2.7 x 0.6" / 79.5 x 69 x 16.5 mm |
| Transmitter Weight | 4.7 oz / 132 g |
| Receiver Weight | 4.6 oz / 130 g |
| Package Weight | 1.44 lb |
| Box Dimensions (LxWxH) | 8.4 x 6 x 2.3" |
