Description
KanexPro EXTHDMDP50 Overview
- 1Description
- 2Industry Standard HDCP 2.2 & 4K/60
- 3Applications
- 4Features

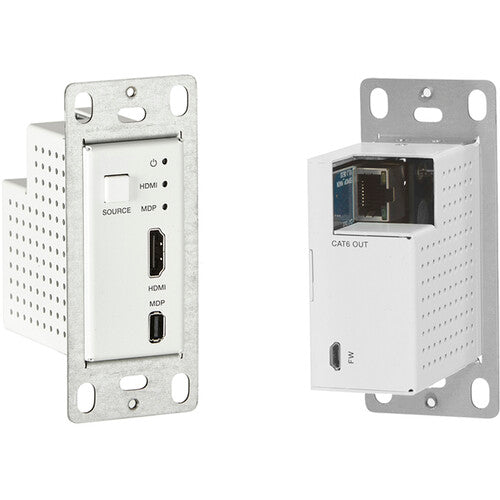

The KanexPro WP-EXTHDMDP50 HDMI and Mini DisplayPort Extender Wall Plate Kit is a 2x1 switcher and transmitter with HDMI and MiniDisplayPort inputs. It features a US one-gang enclosure for Decora-style wall plate opening with white wall plates and faceplates. Supports video resolutions up to 4K2K@50/60Hz 4:4:4. The RJ56 output can extend video transmission at distances up to 164'. The wall-plate transmitter is remotely powered by the receiver via POC technology.
Industry Standard HDCP 2.2 & 4K/60
HDCP 2.2 authentication is present always on this extender ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- 4096x2160@24, 30, 50 or 60Hz, 3840x2160@24, 25,30, 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard.
Applications
Ideal for use with court rooms, classrooms, conference rooms or showrooms where audio-visual devices can be extended from a remotely located HDMI/mDP source devices. The single-gang HDMI wall plate can be used anywhere to enhance signal integrity over CAT5e/6 cabling with the push button switching feature.
Features
- Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a
- Support 18Gbps video bandwidth
- Video resolution up to 4K/UHD@60Hz 4:4:4
- CAT6 output can extend video transmission distance up to 164' for 4K@24 or 115ft / 35m for 4K@60 444 via a single CAT5e/6 cable
- Support 3D and HDR format video, does not support CEC control
- HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Support HDMI and MDP input
- US one-gang enclosure for Decora-style wall plate openings
- Input signal selection supports automatic mode and manual mode
- Support POC function (only from Receiver to Transmitter)
UPC: 813982022744
In the Box
- KanexPro HDMI and Mini DisplayPort Extender Wall Plate Kit (164')
- 2 x Wall Plate
- 2 x Face Plate
Table of Contents
- Description
- Industry Standard HDCP 2.2 & 4K/60
- Applications
- Features
KanexPro EXTHDMDP50 Specs
Transmitter Interfaces
| Inputs | 1 x HDMI (HDMI 2.0) 1 x Mini-DisplayPort (DisplayPort 1.2) |
| Outputs | 1 x RJ45 |
| Transmitter Other I/O | 1 x Micro-USB |
Receiver Interfaces
| Inputs | 1 x RJ45 |
| Outputs | 1 x HDMI 1 x 1/8" / 3.5 mm TRS (IR) 1 x Micro-USB (Firmware) |
Standards
| HDCP Support | Version 2.2 |
| EDID Support | None |
Transmission
| Max Transmission Distance | 164' / 50 m (via Cat 5e/6) |
| Supported Cable Types | Cat 5e/6 |
General
| Transmitter Dimensions | 2.7 x 2.6 x 1.3" / 68.7 x 65.7 x 33.3 mm (Wall Plate) 2.8 x 1 x 0.1" / 69.9 x 26.2 x 3 mm (Face Plate) |
| Receiver Dimensions | 3.5 x 2.4 x 0.7" / 88 x 61 x 18 mm |
| Wall Box Gang Size | 1 Gang |
| Transmitter Weight | 6.9 oz / 195 g (Wall Plate) |
| Receiver Weight | 5.5 oz / 155 g |
