Description

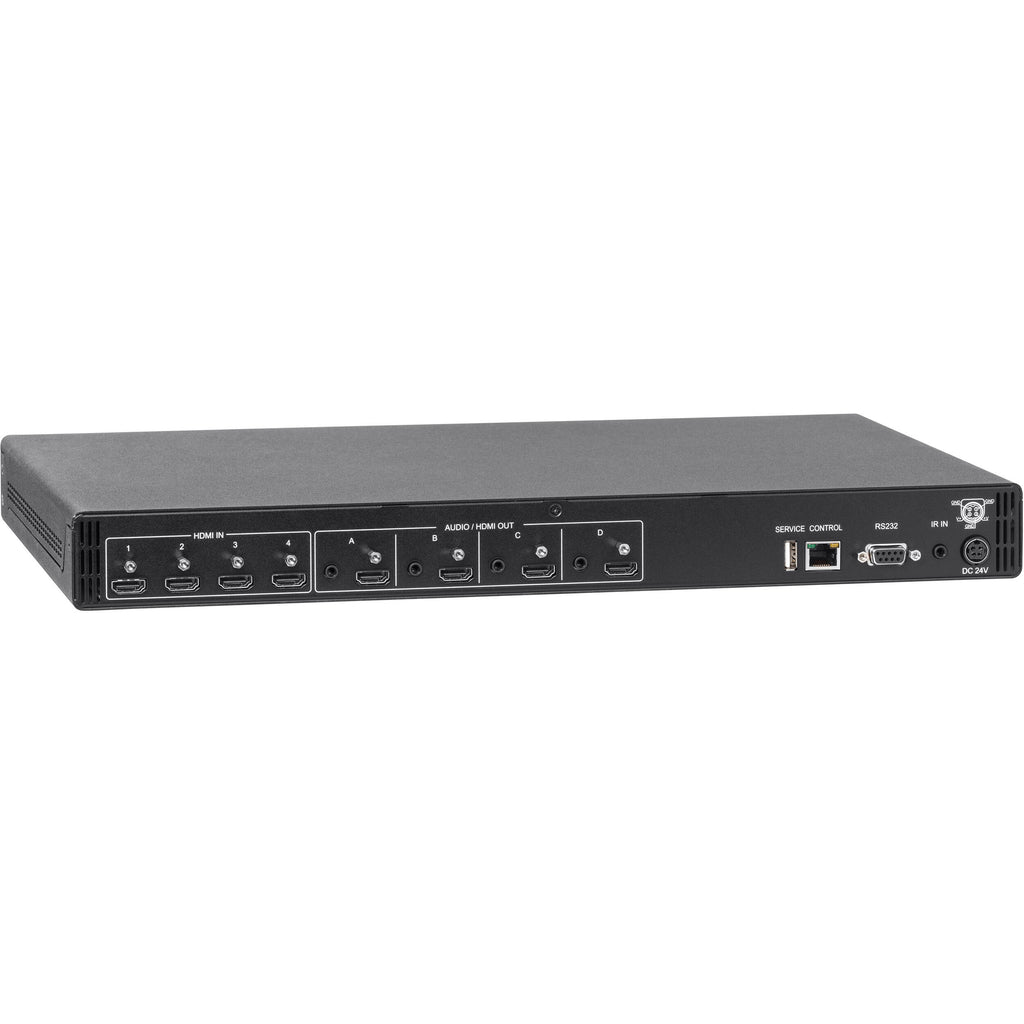

KanexPro HDMX44A Overview
The 4x4 HDMI 4K60 Matrix Switcher with Audio Outputs from KanexPro allows you to connect four HDMI sources and four HDMI displays and route one set to the other in different matrices. The switcher also allows you to de-embed the audio from your HDMI inputs and output the audio to four 3.5mm stereo analog outputs for routing to speakers or mixers.
The unit can be controlled using the panel control buttons, the included remote control, via a web GUI, telnet, or RS-232 serial control. The switcher features a slim, rectangular, robust design and can be desktop- or wall-mounted using the supplied mounting ears. It supports up to DCI/UHD 4K60 fps resolution on input and output and downscales the sampling rate to up to 8-bit 4:4:4. It supports EDID management, HDCP 2.2, DVI 1.0, 16-bit Deep Color, HDR, and Dolby/DTS audio.
Key Features
In the Box
- KanexPro 4x4 HDMI 4K60 Matrix Switcher with Audio Outputs
- IR Remote
- Power Supply
- Limited 3-Year Warranty
KanexPro HDMX44A Specs
| Switching Type | IR Remote, Pushbutton, Software |
| Processing Resolution | DCI 4K at 60 |
| Color Processing | 8-Bit 4:4:4 |
| Video Input Connectors | 4 x HDMI Female |
| Input Video Format | HDMI (8-Bit 4:4:4) DCI 4K: 60 fps UHD 4K: 60 fps |
| Input Audio Format | LPCM (Linear Pulse-Code Modulation): 192 kHz |
| Embedded Audio Input | HDMI: 2-Channel (per Input) |
| Video Output Connectors | 4 x HDMI Female |
| Output Video Format | HDMI (8-Bit 4:4:4) DCI 4K: 60 fps UHD 4K: 60 fps |
| Audio Output Connectors | 4 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Output Audio Format | Analog |
| Embedded Audio Output | HDMI |
| Other I/O | 1 x RJ45 Control Input 1 x DE-9/DB-9 RS-232 Input 1 x 3.5 mm IR Input 1 x USB Type-A Firmware Input |
| HDCP Support | Version 2.2 |
| HDR Compatibility | HDR10, HDR10+, Dolby Vision |
| DTS Compatibility | DTS, DTS-HD Master Audio, DTS:X |
| Dolby Compatibility | Dolby Atmos, Dolby Digital, Dolby TrueHD |
| Power Connector | 1 x Proprietary (24 VDC at 2.7 A) Input |
| Power Consumption | Power Supply: 24 VDC at 2.7 A Device: 34 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% (Non-Condensing) |
| Weight | 6.59 lb / 2.99 kg |
| Package Weight | 10.58 lb |
| Box Dimensions (LxWxH) | 23.3 x 14.8 x 7.5" |
