Description
KanexPro KVM70M Overview

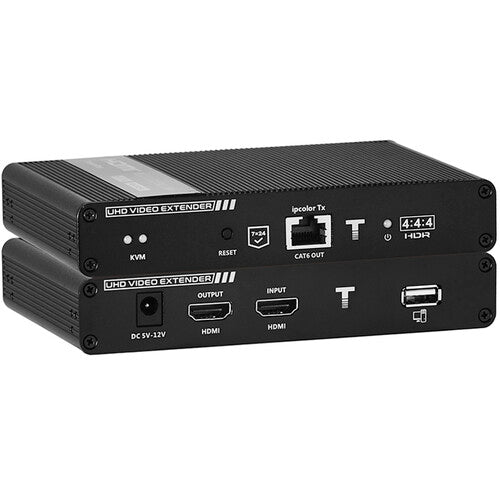

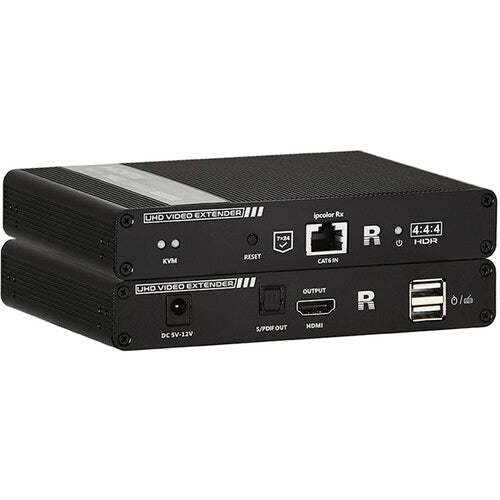

The 4K HDMI KVM Extender Kit from KanexPro sends and receives HDMI signals with up to UHD 4K60 resolution beyond the ability of a standard HDMI cable, extending both video and audio up to 230' over a single Cat 6/6e/7e cable with no latency. This kit also extends USB peripherals over the same connection, so you can extend device control such as keyboard, mouse, touchscreen, or even PTZ camera controls along with the video. The kit consists of a transmitter unit with HDMI and USB 2.0 inputs and an RJ45 output as well as a receiver unit with an RJ45 input and HDMI and two USB 2.0 outputs.
The transmitter also includes an HDMI output for a local display, and the receiver also includes a S/PDIF TOSLINK optical output to de-embed audio from the transmission. The kit also supports bidirectional IR pass-through and includes IR transmitter and receivers. Other features include HDCP 2.2, EDID, and HDR support.
In the Box

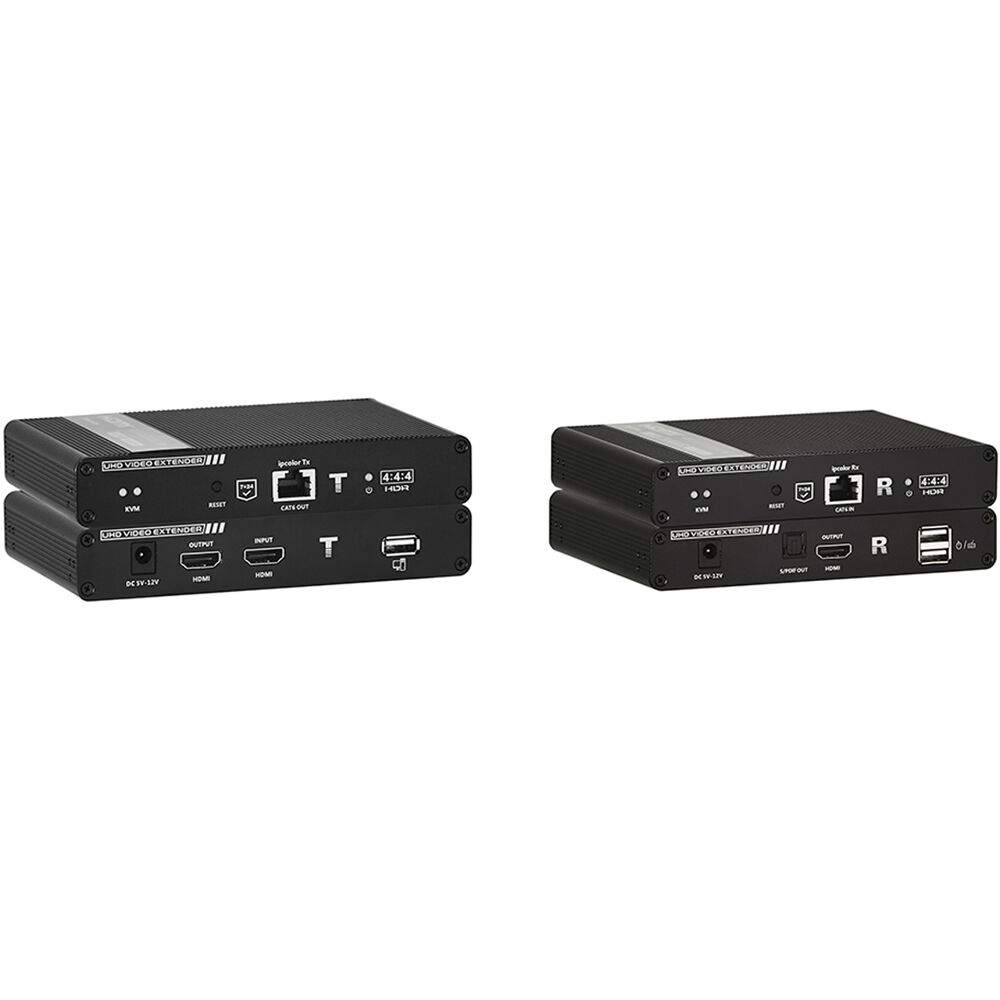

- KanexPro 4K HDMI KVM Extender Kit over Cat 6 with USB 2.0 (230')
- Transmitter Unit
- Receiver Unit
- IR Pass-Through Kit
- Limited 3-Year Manufacturer Warranty
KanexPro KVM70M Specs
| Inputs | 1 x HDMI Female 1 x USB-A (Keyboard / Mouse) Female |
| Embedded Audio Input | HDMI |
| Outputs | 1 x RJ45 Female 1 x HDMI (HDMI 2.0) Female |
| Transmitter Other I/O | 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output |
| Inputs | 1 x RJ45 Female |
| Outputs | 1 x HDMI (HDMI 2.0) Female 1 x TOSLINK (S/PDIF) Female 2 x USB-A (Keyboard / Mouse) Female |
| Embedded Audio Output | HDMI RJ45 |
| HDCP Support | , Version 2.2 |
| EDID Support | Yes |
| Max Transmission Distance | UHD 4K: 229.7' / 70 m (via Cat 6/6a/7) |
| Video Format | HDMI Input (4:4:4 YUV) UHD 4K: 60 fps 1080p: 60 fps 1080i: 60 fps 720p: 60 fps 576p: 60 fps PAL: 60 fps 480p: 60 fps NTSC: 60 fps |
| PC Resolutions | HDMI: 1280 x 960 HDMI: 1280 x 800 HDMI: 1280 x 768 HDMI: 1680 x 1050 HDMI: 1360 x 768 HDMI: 1600 x 900 HDMI: 1024 x 768 HDMI: 800 x 600 |
| Audio Format | S/PDIF: |
| Supported Cable Types | Cat 5e/6/6a/6e/7 |
| Latency | 0 ms |
| Transmitter Power Connector | 1 x Barrel (5 VDC) Input |
| Receiver Power Connector | 1 x Barrel (5 VDC) Input |
| Transmitter Power Consumption | Device: 5 to 12 VDC (4 W) |
| Receiver Power Consumption | Device: 5 to 12 VDC (4 W) |
| Operating Temperature | 12 to 92°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | 0 to 90% |
| Transmitter Dimensions | 4.2 x 3.9 x 1" / 106 x 99 x 26.2 mm |
| Receiver Dimensions | 4.2 x 3.9 x 1" / 106 x 99 x 26.2 mm |
| Transmitter Weight | 9.2 oz / 260 g |
| Receiver Weight | 9.2 oz / 260 g |
| Package Weight | 2.925 lb |
| Box Dimensions (LxWxH) | 14.1 x 6.3 x 3.6" |
