| ₹ 44940.0 includes GST and import duties. | |
| B2B customers can avail ₹ 6853.35 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
KanexPro CAS70M Overview

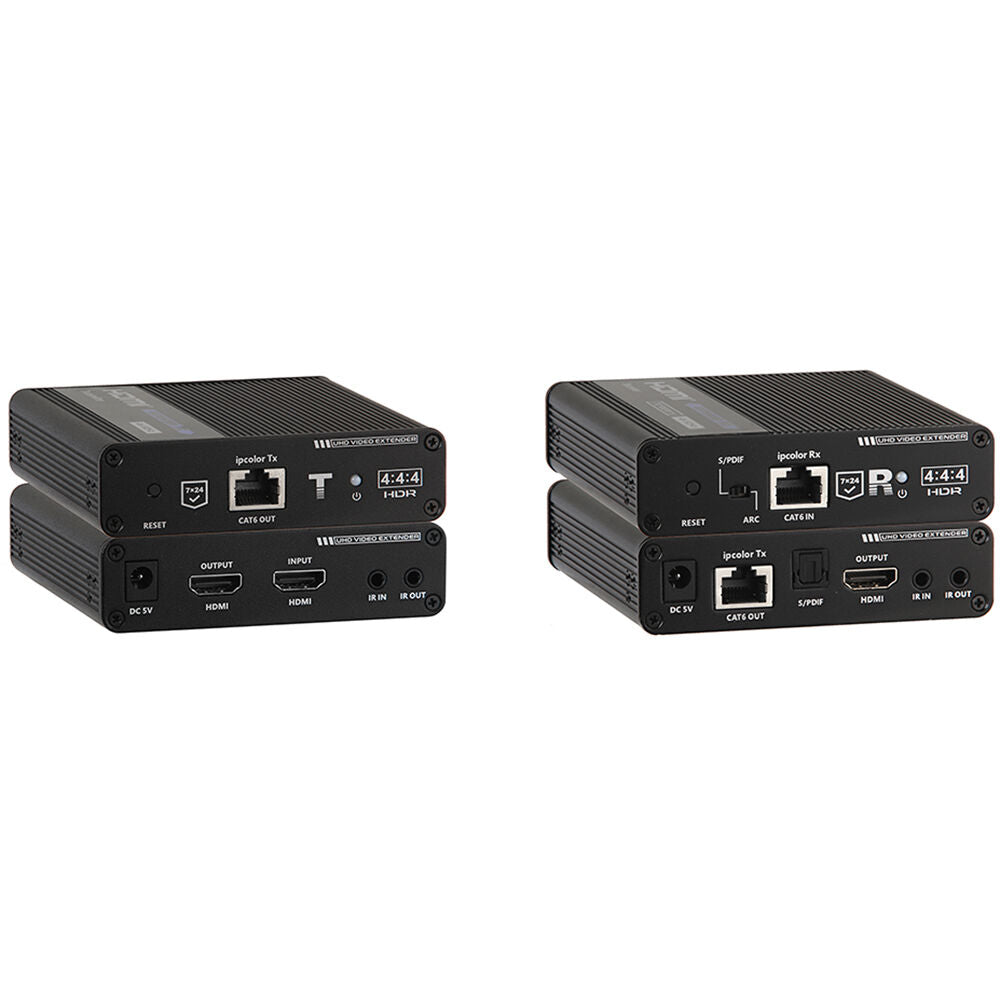

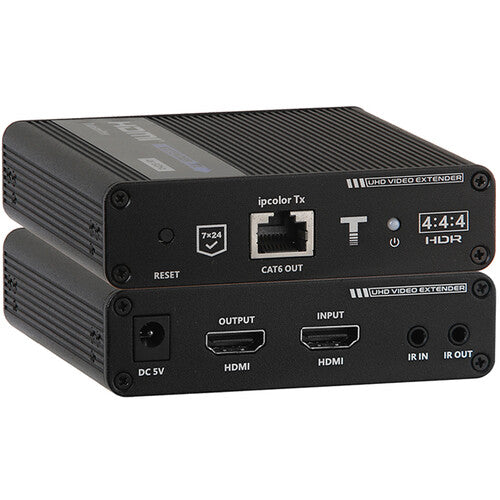

The 4K HDMI Cascading Extender Kit from KanexPro sends and receives HDMI signals with up to UHD 4K60 resolution beyond the ability of a standard HDMI cable, extending both video and audio up to 230' over a single Cat 6/6e/7e cable with no latency. The kit consists of a transmitter unit with an HDMI input and RJ45 output and a receiver unit with an RJ45 input and HDMI output. The system supports cascading up to 10 additional receivers to extend the transmission even farther.

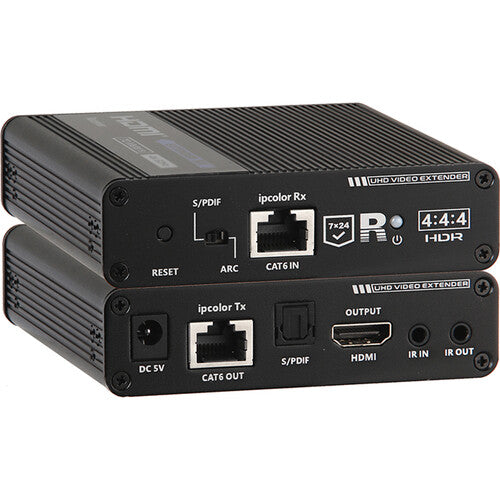

The transmitter also includes an HDMI output for a local display, and the receiver also includes a S/PDIF TOSLINK optical output to de-embed audio from the transmission. The kit also supports bidirectional IR pass-through and includes IR transmitter and receivers. Other features include HDCP 2.2, EDID, and HDR support.
In the Box
- KanexPro 4K HDMI Cascading Extender Kit over Cat 6 (230')
- Transmitter Unit
- Receiver Unit
- IR Pass-Through Kit
KanexPro CAS70M Specs
| Inputs | 1 x HDMI Female |
| Embedded Audio Input | HDMI |
| Outputs | 1 x RJ45 Female 1 x HDMI (HDMI 2.0) Female |
| Transmitter Other I/O | 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output |
| Inputs | 1 x RJ45 Female |
| Outputs | 1 x HDMI (HDMI 2.0) Female 1 x TOSLINK (S/PDIF) Female |
| Embedded Audio Output | RJ45 RJ45 |
| Receiver Other I/O | 1 x RJ45 Output |
| HDCP Support | Version 2.2 |
| EDID Support | Yes |
| Max Transmission Distance | UHD 4K: 229.7' / 70 m (via Cat 6/6a/7) |
| Video Format | HDMI Input (4:4:4 YUV) UHD 4K: 60 fps 1080p: 60 fps 1080i: 60 fps 720p: 60 fps 576p: 60 fps PAL: 60 fps 480p: 60 fps NTSC: 60 fps |
| PC Resolutions | HDMI: 1280 x 960 HDMI: 1280 x 800 HDMI: 1280 x 768 HDMI: 1680 x 1050 HDMI: 1360 x 768 HDMI: 1600 x 900 HDMI: 1024 x 768 HDMI: 800 x 600 |
| Audio Format | S/PDIF: |
| Supported Cable Types | Cat 5e/6/6a/6e/7 |
| Latency | 0 ms |
| Transmitter Power Connector | 1 x Barrel (5 VDC) Input |
| Receiver Power Connector | 1 x Barrel (5 VDC) Input |
| Transmitter Power Consumption | Device: 5 to 12 VDC (4 W) Power Supply: 100 to 240 VAC at 0.3 A (4 W) |
| Receiver Power Consumption | Device: 5 to 12 VDC (4 W) Power Supply: 100 to 240 VAC at 0.3 A (4 W) |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | 0 to 90% |
| Transmitter Dimensions | 4.2 x 3.9 x 1" / 106 x 99 x 26.2 mm |
| Receiver Dimensions | 4.2 x 3.9 x 1" / 106 x 99 x 26.2 mm |
| Transmitter Weight | 7.4 oz / 210 g |
| Receiver Weight | 7.4 oz / 210 g |
| Package Weight | 2.05 lb |
| Box Dimensions (LxWxH) | 9.6 x 7.1 x 3.3" |
KanexPro CAS70M Reviews
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 44041.2 |
| 3-5 | ₹ 43591.8 |
| 5-10 | ₹ 42693.0 |
| 10+ | ₹ 41794.2 |
Bulk discount will be automatically applied during checkout based on quantity.
