KanexPro RPTPRO Overview
- 1Description
- 2Key Features
- 3Transmission Distances Over RG6 Cable
- 4Transmission Distances Over RG59 Cable

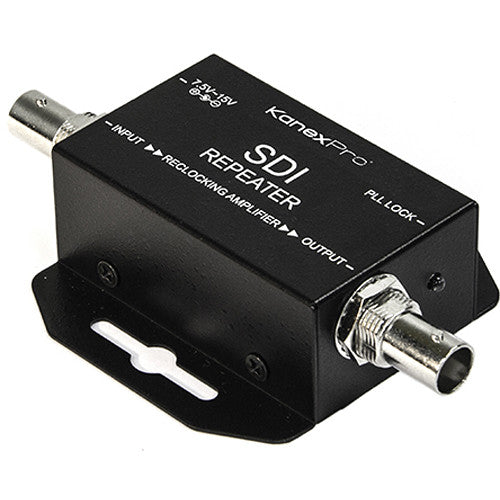

The KanexPro 3G-SDI Repeater features a built-in signal equalizer, reclocking function, and allows extending a 3G-SDI signal up to 328 ft. It supports up to 1080p60 signals, and carries up to 7.1 channel embedded audio. The repeater is compact and all-metal, and suitable for use indoors and outdoors. It also has a locking power supply, and offers integrated mounting brackets for more secure installation.
Key Features
- Single 3G/HD/SD-SDI input/output with auto-input detection
- Built-in signal equalizer and reclocking function
- Supports up to 1080p60 signals, and carries up to 7.1 channel embedded audio
- Locking power supply and mounting ears
- Micro-USB Port for firmware updates
Transmission Distances Over RG6 Cable
- 3G-SDI: 328 ft
- HD-SDI: 557 ft
- SD-SDI: 1312 ft
Transmission Distances Over RG59 Cable
- 3G-SDI: 282 ft
- HD-SDI: 393 ft
- SD-SDI: 918 ft
UPC: 813982020931
In the Box
- KanexPro 3G-SDI Repeater with Signal EQ & Reclocking
- Power Adapter
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Key Features
- Transmission Distances Over RG6 Cable
- Transmission Distances Over RG59 Cable
KanexPro RPTPRO Specs
| Input | 1 x SDI on BNC (75 Ohms) |
| Output | 1 x SDI on BNC (75 Ohms) |
| Supported Resolutions | 1920 x 1080p 60/50/30/25/24 1920 x 1080i 60/50 1280 x 720p 60/50 576i 480i |
| SDI Format | 3G-SDI (SMPTE 424M / SMPTE 425M) HD-SDI (SMPTE 292M) SD-SDI (SMPTE 259M) |
| Audio Support | 7.1-channel, 5.1-channel, stereo |
| Transmission Distance | Over RG6 Cable: 3G-SDI: 328 ft (100 m) HD-SDI: 557 ft (170 m) SD-SDI: 1312 ft (400 m) Over RG59 Cable: 3G-SDI: 282 ft (86 m) HD-SDI: 393 ft (120 m) SD-SDI: 918 ft (280 m) |
| Housing | SECC |
| Power Source | Included Power Adapter: 100 - 240 VAC / DC (6 - 15 V) |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 2.5 x 2.75 x 1" (6.4 x 7 x 2.6 cm) |
Packaging Info
| Package Weight | 0.95 lb |
| Box Dimensions (LxWxH) | 9.291 x 5.984 x 1.732" |
