Description

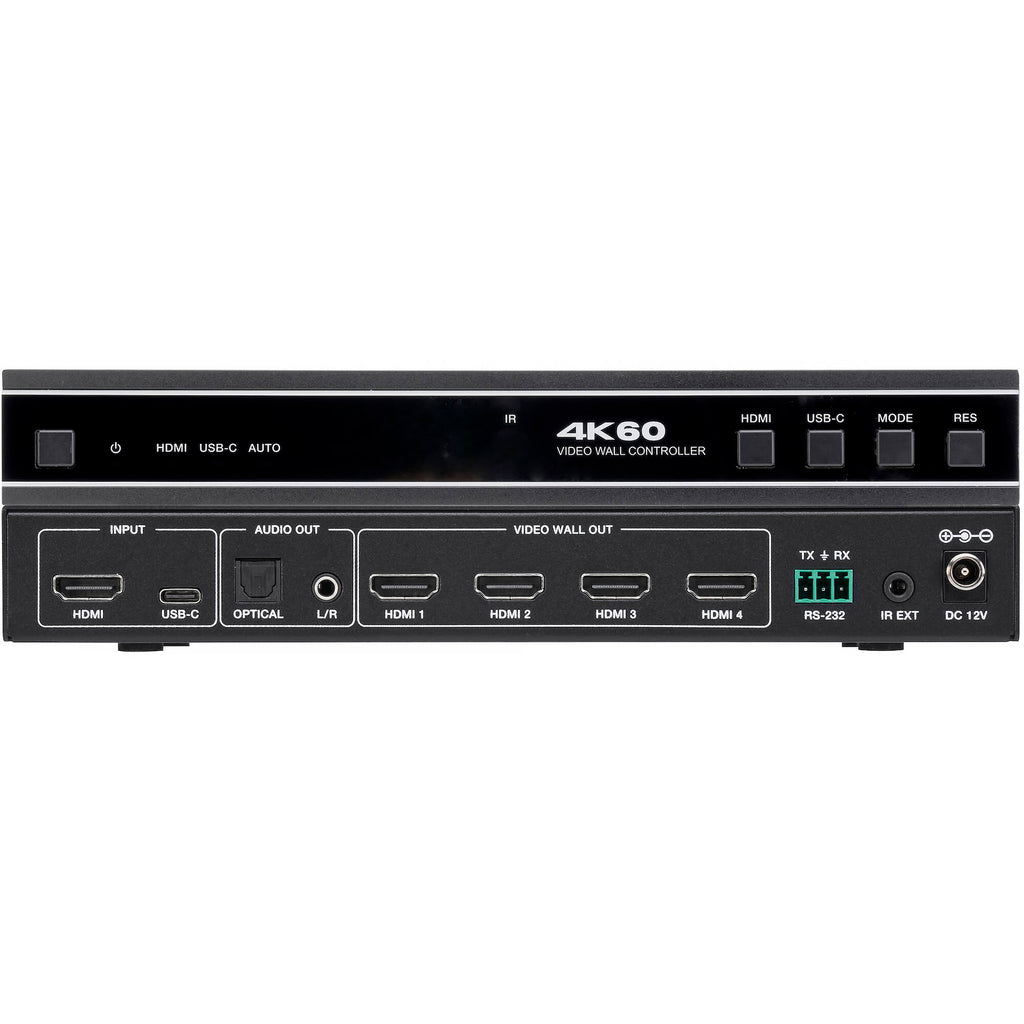

KanexPro VW-HDUSBC1X4 Overview
The 2x4 UHD 4K60 HDMI/USB-C Video Wall Processor from KanexPro lets you display video content from one HDMI and one USB-C input on up to four HDMI displays for digital signage use and more. It supports up to UHD 4K60 4:4:4 video, digital and analog audio, and button, IR remote, and RS-232 control.
Multiple Video Formats
This processor supports video formats and resolutions up to UHK 4K60 4:4:4.
Dolby/DTS Audio Support
This processor supports high-definition audio formats like Dolby TrueHD and DTS-HD Master Audio, providing immersive sound experiences.
Applications
Ideal for digital signage, this processor is also useful for advertising, corporate, broadcast, and educational applications.
UPC: 813982023499
Items Included
- KanexPro 2x4 UHD 4K60 HDMI/USB-C Video Wall Processor
- 5 VDC, 1A International Power Supply
- Limited 3-Year Manufacturer Warranty
Additional Resources
KanexPro VW-HDUSBC1X4 Specs
Key Specs
| Inputs |
1 x HDMI Female
|
| Embedded Audio |
No
|
| Outputs |
4x HDMI (HDMI 2.0) Female
1x TOSLINK (S/PDIF) 1x 1/8" / 3.5 mm TRS (Stereo Analog) |
| Video Format |
HDMI Input (4:4:4)
3840 x 2160: 30/60 fps 1920 x 1080p: 60 fps HDMI Output (4:4:4) 3840 x 2160: 30/60 fps 1920 x 1080p: 60 fps |
Interfaces
| Inputs |
1 x HDMI Female
|
| Embedded Audio |
No
|
| Outputs |
4x HDMI (HDMI 2.0) Female
1x TOSLINK (S/PDIF) 1x 1/8" / 3.5 mm TRS (Stereo Analog) |
| Other I/O |
1x USB-C Input
1x Block 3-Pin (RS-232) 1x 1/8" / 3.5 mm (IR) |
Standards
| HDR Support |
No
|
| HDCP Support |
Yes
|
| EDID Support |
Yes
|
| Audio Decoding |
DTS-HD, DTS:X, DTS-96/24, Dolby Digital, Dolby Digital EX, Dolby Digital Plus
|
Transmission
| Video Format |
HDMI Input (4:4:4)
3840 x 2160: 30/60 fps 1920 x 1080p: 60 fps HDMI Output (4:4:4) 3840 x 2160: 30/60 fps 1920 x 1080p: 60 fps |
| PC Resolutions |
1024 x 768 at 60 Hz
|
| Maximum Multiple Display Configuration |
4 x 1
2 x 2 |
| Audio Format |
AES/EBU
S/PDIF Analog |
Power
| Power I/O |
1x Barrel (12 VDC at 1 A) Input
|
| Power Consumption |
Device: (5.5 W)
|
General
| Certifications |
CE, FCC, RoHS
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C at 20 to 90% Humidity
|
| Material of Construction |
Metal
|
| Dimensions |
8.7 x 3.9 x 1.2" / 220.0 x 100.0 x 30.0 mm
|
| Weight |
20.8 oz / 590 g
|
Packaging Info
| Package Weight |
2.405 lb
|
| Box Dimensions (LxWxH) |
11.6 x 7.9 x 3.2"
|
