Description
KanexPro HDPOC1X4 Overview
Split an HDMI signal, up to 4K60, and distribute it to 4 HDMI devices, such as monitors or projectors, with the KanexPro 1x4 HDMI Distribution Amplifier and Cat 5e/6 Extender Kit. Use this device to show your HDMI feed in houses of worship, retail stores, or smart home theater installations, on up to four displays. The kit includes one transmitter and four receivers that can extend your 4K video up to 98' and 1080p video up to 196' using a Cat 6/6a/7 cable.
The system supports HDCP 2.2 and advanced EDID management, so that there are no problems with your displays showing protected content. The system also supports one-way IR control signal passthrough, allowing you to control the displays at the receiver end of the chain, from the transmitter. The included power supply powers the transmitter and the receivers.
Basics
Pro Standards

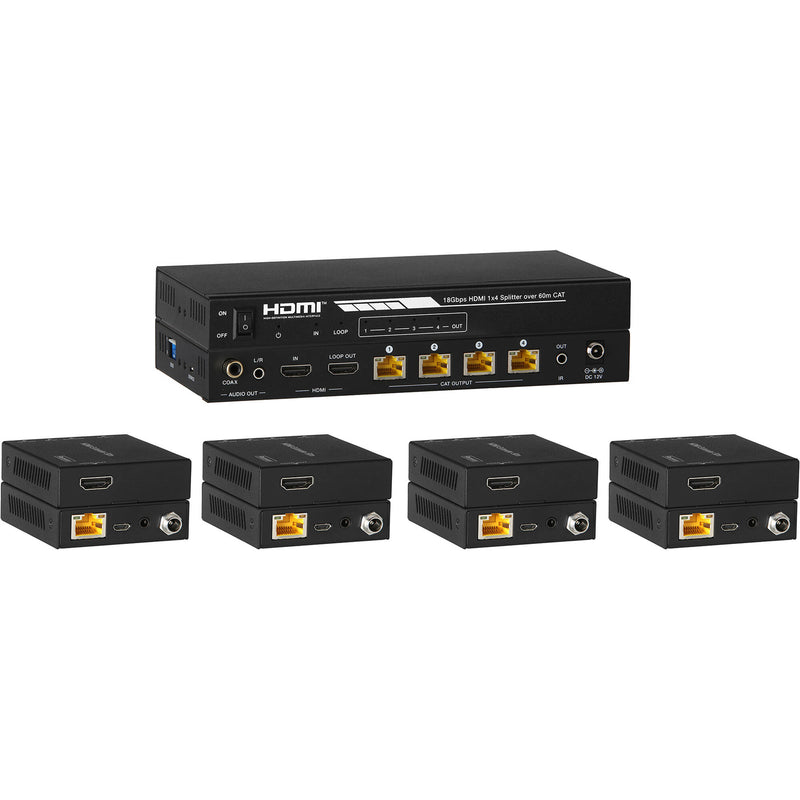

In the Box
- KanexPro 1x4 HDMI Distribution Amplifier and Cat 5e/6 Extender Kit (196')

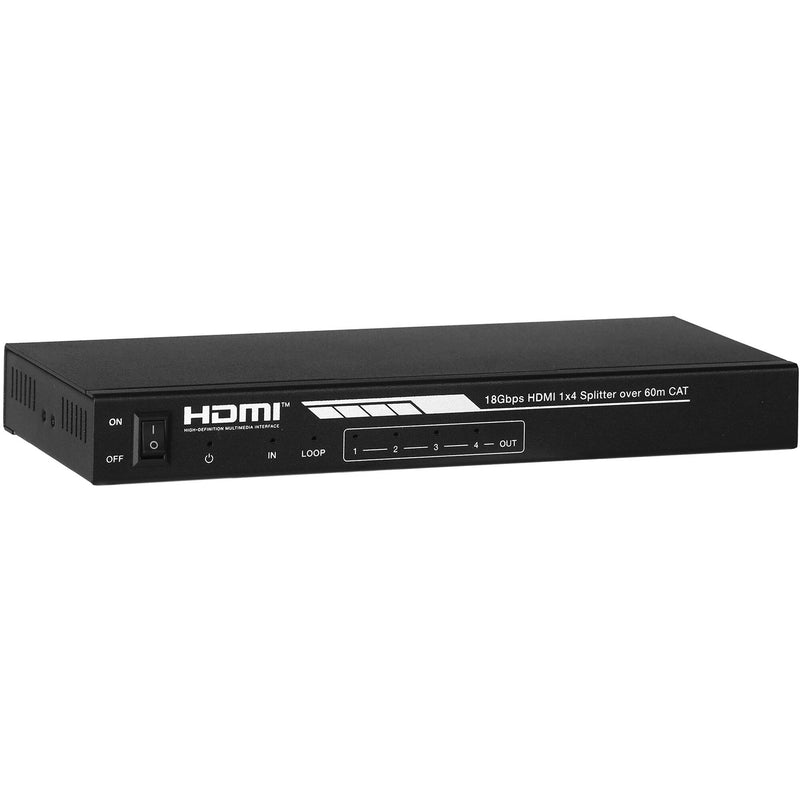

- 18 Gb/s Transmitter
- 4 x Receiver Units
- IR Blaster
- 4 x IR Receiver Cable
- 12 VDC Locking Power Adapter
- Limited 3-Year Warranty
KanexPro HDPOC1X4 Specs
| Input Connectors | 1 x HDMI (HDMI 2.0) |
| Output Connectors | 4 x RJ45 Female 1 x 1/8" / 3.5 mm TS Female 1 x RCA (S/PDIF) Female |
| Transmitter Other I/O | 1 x 3.5 mm IR Output |
| Input Connectors | 1 x RJ45 |
| Output Connectors | 1 x HDMI (HDMI 2.0) |
| Embedded Audio Output | HDMI |
| Receiver Other I/O | 1 x 3.5 mm IR Output |
| HDCP Support | Version 2.2 |
| EDID Support | Yes |
| Max Transmission Distance | UHD 4K at 60 Hz: 114.8' / 35 m (via Cat 6/6a/7) UHD 4K at 30 Hz: 164' / 50 m (via Cat 6/6a/7) 1080p at 60 Hz: 196.9' / 60 m (via Cat 6/6a/7) |
| Video Format | HDMI Input (8/10/12-Bit 4:2:2/4:2:0 YCC) UHD 4K: 60 fps HDMI Input (8-Bit 4:4:4 YUV) UHD 4K: 60 fps HDMI Input (8/10/12-Bit) 1080p: 60 fps |
| Audio Format | Analog: S/PDIF: |
| DTS Compatibility | DTS, DTS 96/24, DTS Express, DTS-HD High Resolution, DTS-HD Master Audio |
| Dolby Compatibility | Dolby Digital, Dolby Digital Plus |
| Supported Cable Types | Cat 5e/6/7 |
| Transmitter Power Connector | 1 x Barrel (12 VDC) Input 4 x RJ45 Output |
| Receiver Power Connector | 1 x RJ45 Input |
| Transmitter Power Consumption | Power Supply: 100 to 240 VAC at 0.3 A (14 W) Device: 12 VDC at 2.5 A |
| Operating Temperature | 32 to 140°F / 0 to 60°C |
| Certifications | CE, FCC, UL, as per Manufacturer |
| Transmitter Dimensions | 8.3 x 4 x 1" / 21.1 x 10.2 x 2.5 cm |
| Receiver Dimensions | 3.5 x 2.4 x 0.7" / 8.9 x 6.1 x 1.8 cm |
| Transmitter Weight | 21.8 oz / 617 g |
| Receiver Weight | 5.5 oz / 155 g |
| Package Weight | 4.305 lb |
| Box Dimensions (LxWxH) | 12.5 x 12 x 3.8" |
