| ₹ 360355.0 includes GST and import duties. | |
| B2B customers can avail ₹ 54954.14 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

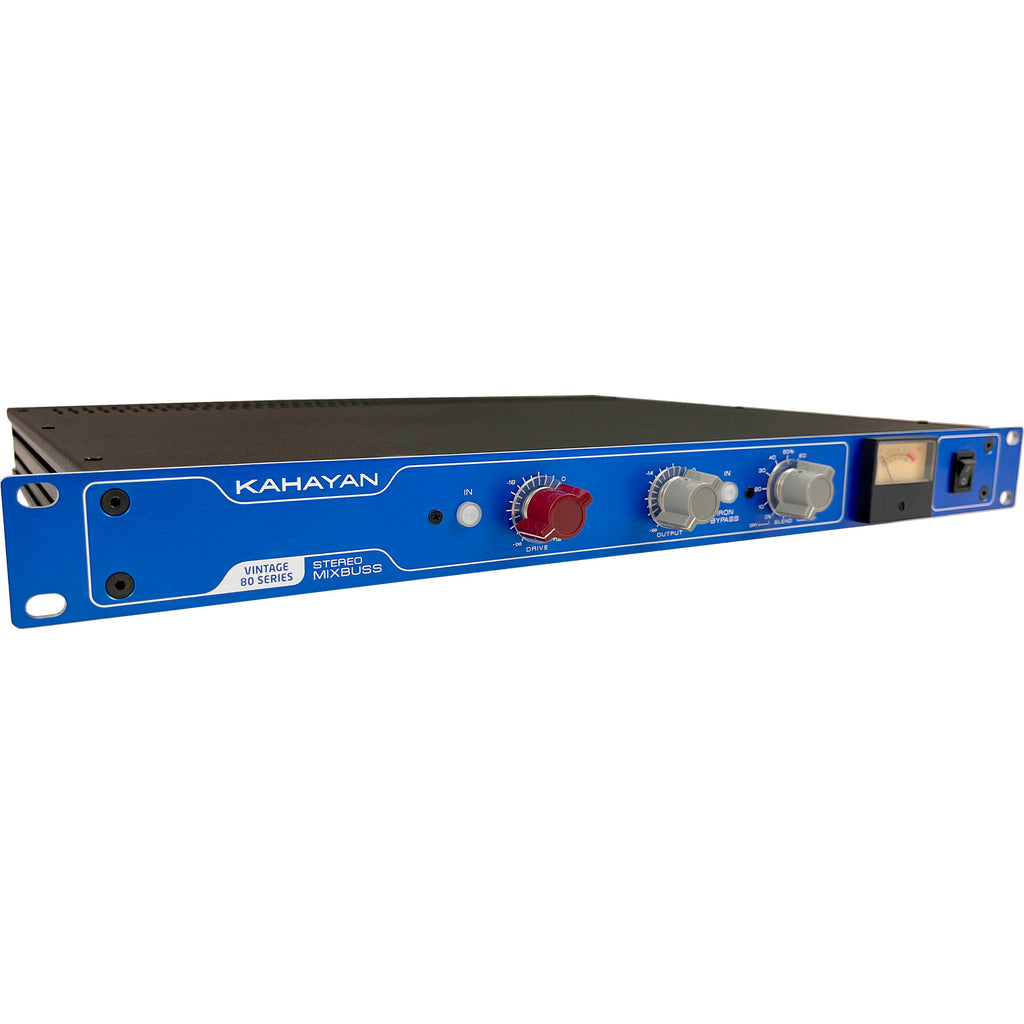

Kahayan VINTAGE 80 SERIES MIX BUSS Overview
Audio professionals looking for that classic Neve sound will appreciate the Kahayan Vintage 80 Series Stereo Mix Bus Processor, a stereo processor designed to be inserted on a stereo bus that imparts the characteristics of a Neve 80-series mixing console with a war, fat, rich sound and a highly detailed midrange.
The processor offers a drive control for harmonic saturation, an output knob to compensate for the Drive signal, and a Blend control for dry/wet control and parallel processing. The transformer can be bypassed via front-panel button, resulting in a clean smooth sound.
Setup and Basic Aspects
- Bypass: Switch on or bypass the mix-bus processor. When the LED is on, the unit is active

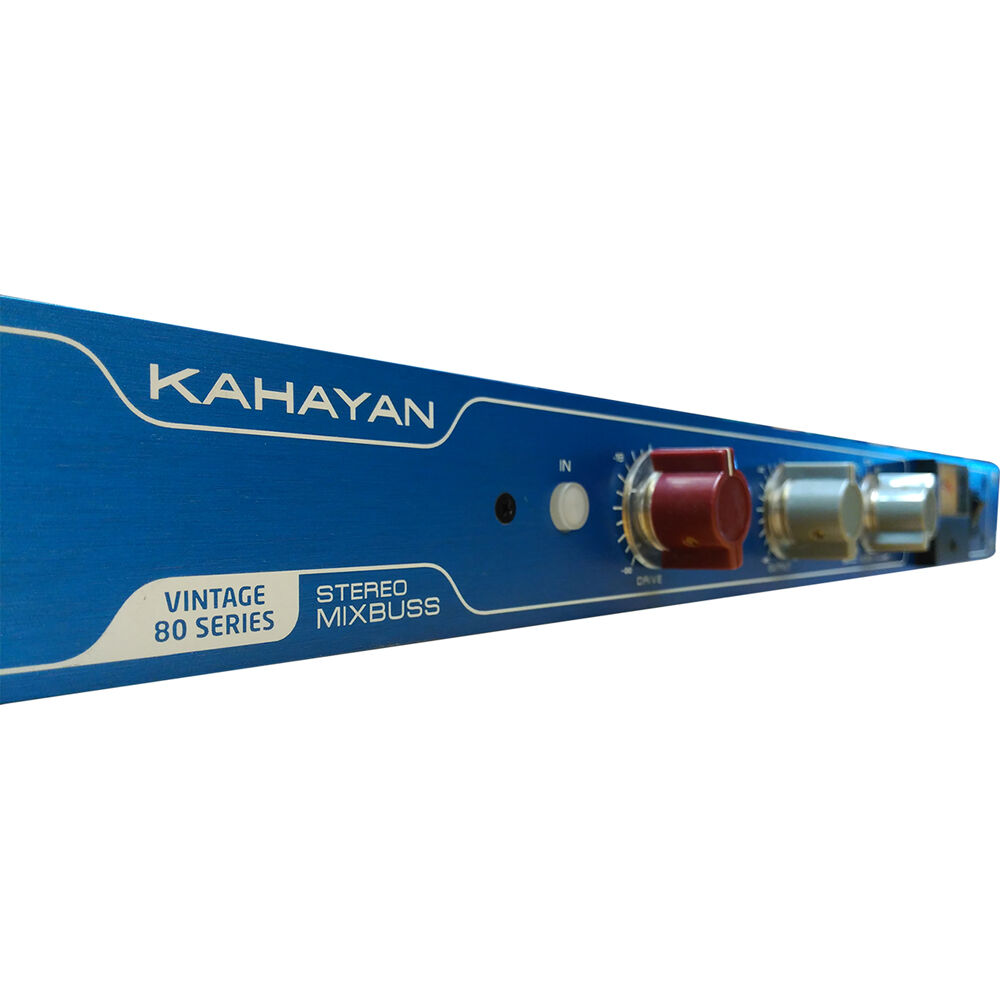

- Drive: Controls harmonic distortion: it sounds like aggressively hitting a console mix bus. High settings increase grit and drive. Lower settings tend to open up the dynamics. Begin with extreme settings, so you can really hear the effect (distortion)
- Output: Fader to compensate the output level as you adjust the drive control
- Iron Bypass: Output transformer bypass switch. This output transformer is part of this classic midrange sound, when you bypass it you have a smooth and more dynamic sound, so you have a new sound option. When the LED is on, the transformer is out of the signal path
- Blend: The dry/wet blend control determines the balance between the original and the processed signal. The range is from 0% (dry, unprocessed) to 100% (wet, processed signal only). And it is located in the signal path after the drive and output control.

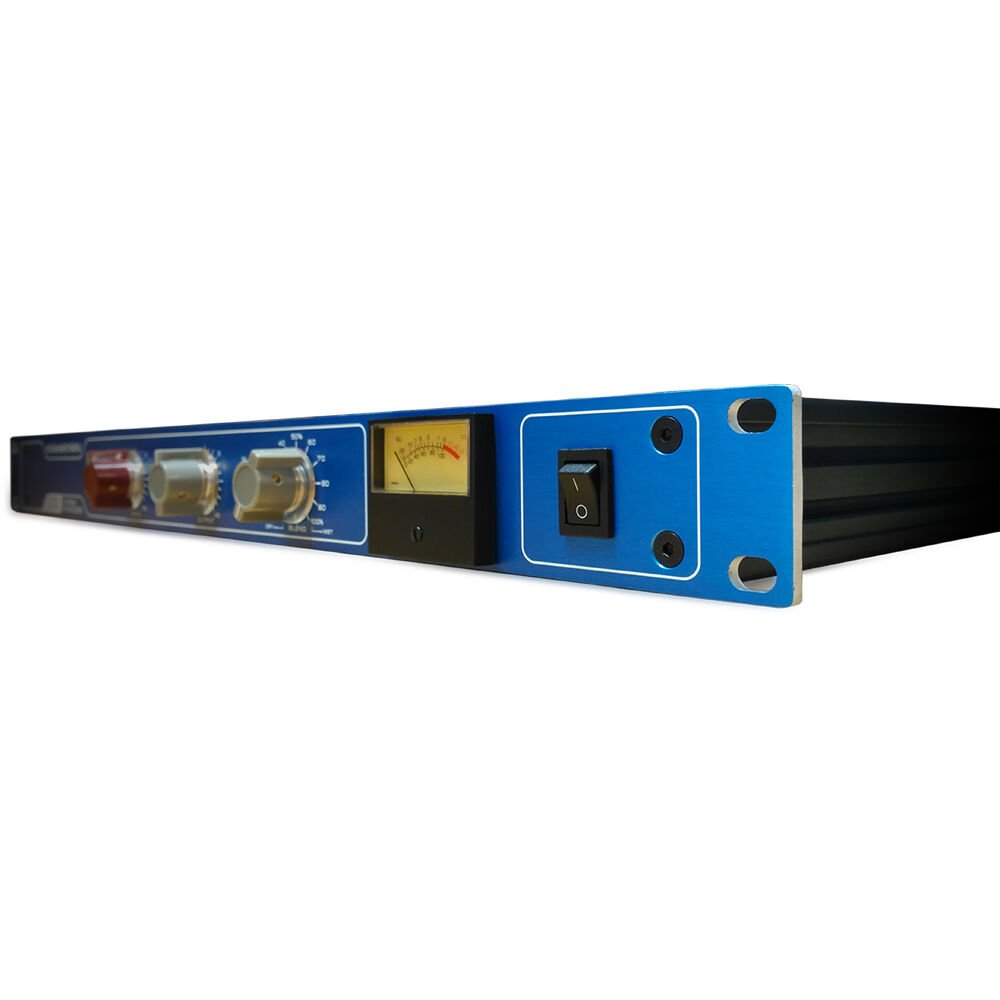

- VU Meter: Works like a classic VU-meter that you can find in the consoles, but it is positioned after drive control and gives a view of the saturation level. The 0 VU is calibrated in a 1% THD position, over that level, the saturation increases
In the Box
- Kahayan Vintage 80 Series Mix Bus (Rack Format)
- Power Supply
- Limited 2-Year Manufacturer Warranty
Kahayan VINTAGE 80 SERIES MIX BUSS Specs
General
| Compatibility |
Not Specified by Manufacturer
|
Inputs / Outputs
| Audio I/O |
2 x XLR 3-Pin Line Input (Balanced)
2 x XLR 3-Pin Line Output (Balanced) |
Power
| Power Source |
AC Input
|
| AC Input Power |
110 to 220 VAC, 50 / 60 Hz
|
Environmental
| Environmental Protection |
No
|
Physical
| Color |
Blue
|
| Dimensions |
19 x 3.5" / 48.3 x 8.9 cm
|
| Weight |
17.6 lb / 8 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 353147.9 |
| 3-5 | ₹ 349544.35 |
| 5-10 | ₹ 342337.25 |
| 10+ | ₹ 335130.15 |
Bulk discount will be automatically applied during checkout based on quantity.
