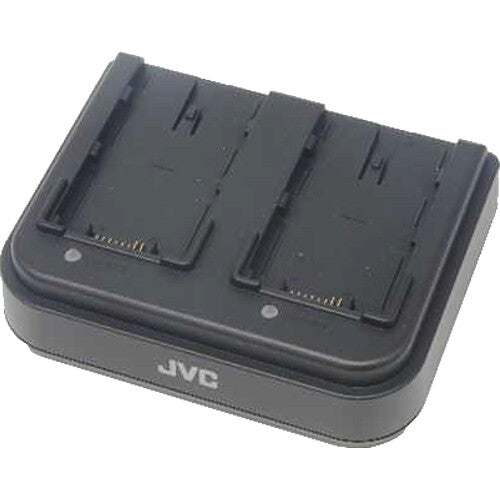

JVC AA-VC20U Overview
The AA-VC20U Dual-Battery Charger simultaneously charges two JVC BN-VC296G and/or BN-VC2128 lithium-ion batteries, confirming charge status via an LED indicator next to each battery slot. The LED turns from red to green when the battery is charged, and it blinks red if charging stops due to an error. The charger connects to a power outlet with an included AC adapter and supports 100 to 240V worldwide power input (an appropriate plug adapter would be required outside of North America).
A single BN-VC296G battery is charged in 260 minutes, and two batteries simultaneously in 430 minutes. The BN-VC2128 is charged in 340 minutes, and two in 510 minutes.
UPC: 046838080944
In the Box
- JVC AA-VC20U Dual-Battery Charger for BN-VC296G & BN-VC2128G
- AC Power Adapter
- Limited 1-Year Warranty
JVC AA-VC20U Specs
Electrical
AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
Power Output |
8.4 VDC at 3.4 A 8.4 VDC at 1.7 |
Multi-Bay Charging Modes |
Simultaneous |
Chemistry |
Lithium-Ion |
Environmental
Operating Temperature |
32 to 104°F / 0 to 40°C |
Storage Temperature |
-4 to 122°F / -20 to 50°C |
General
Indicator |
LED |
Dimensions |
5.2 x 4.1 x 1.6" / 131 x 103 x 40 mm |
Weight |
5.3 oz / 150 g |
Warranty Length |
Limited 1-Year Warranty |
Packaging Info
Package Weight |
1.62 lb |
Box Dimensions (LxWxH) |
13.3 x 6.8 x 3.6" |
