| ₹ 115.0 includes GST and import duties. | |
| B2B customers can avail ₹ 17.54 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

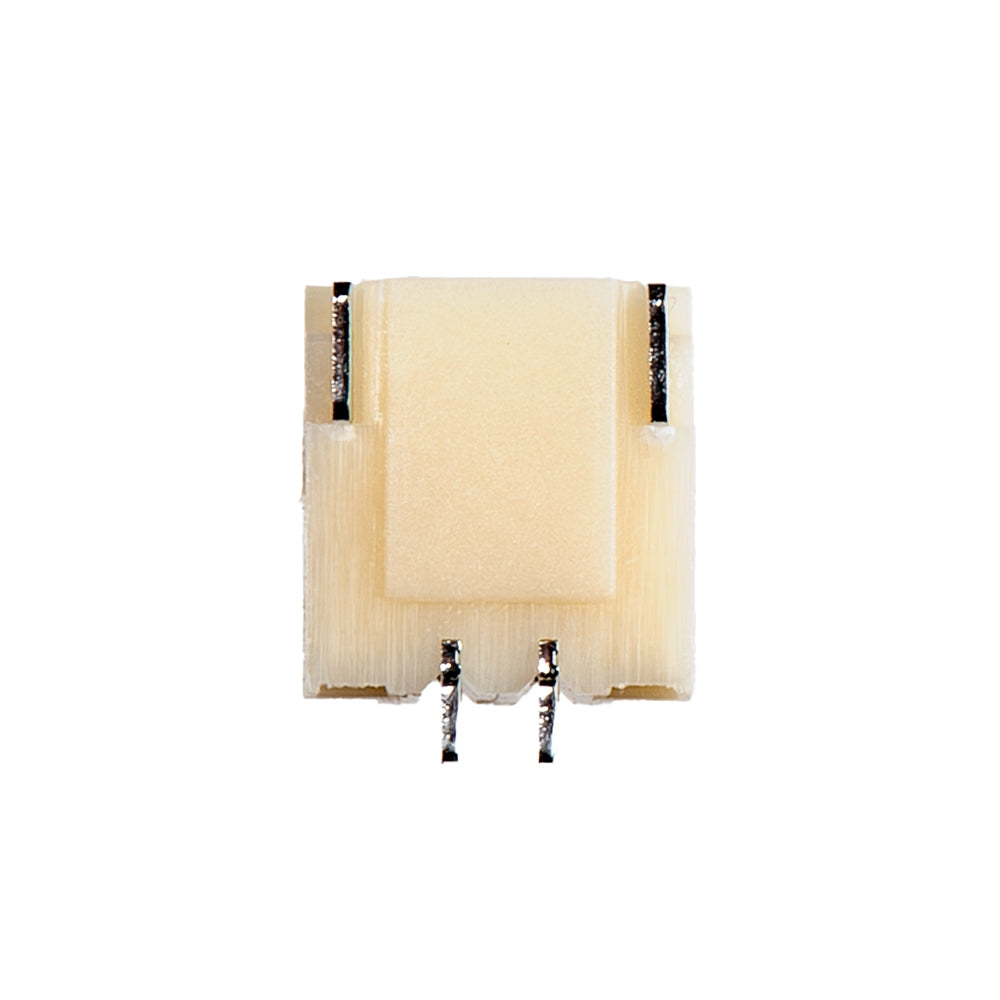

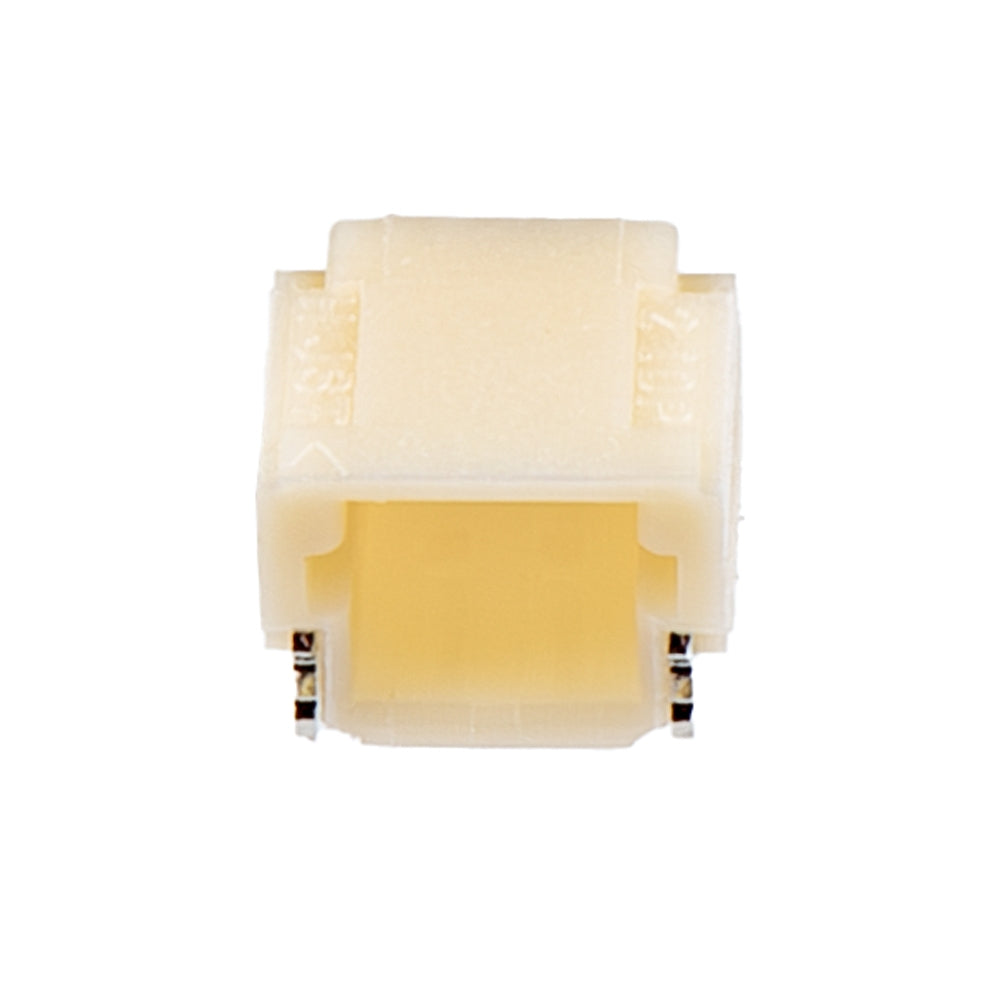

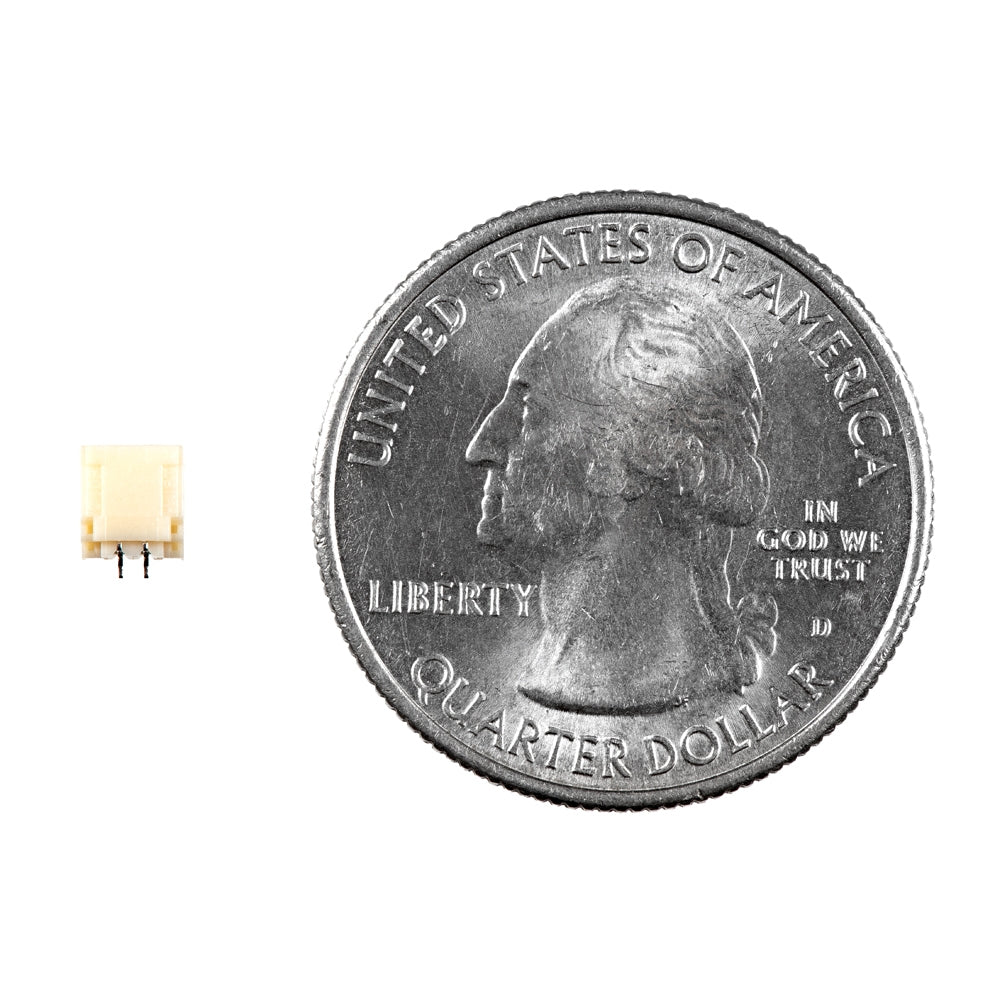

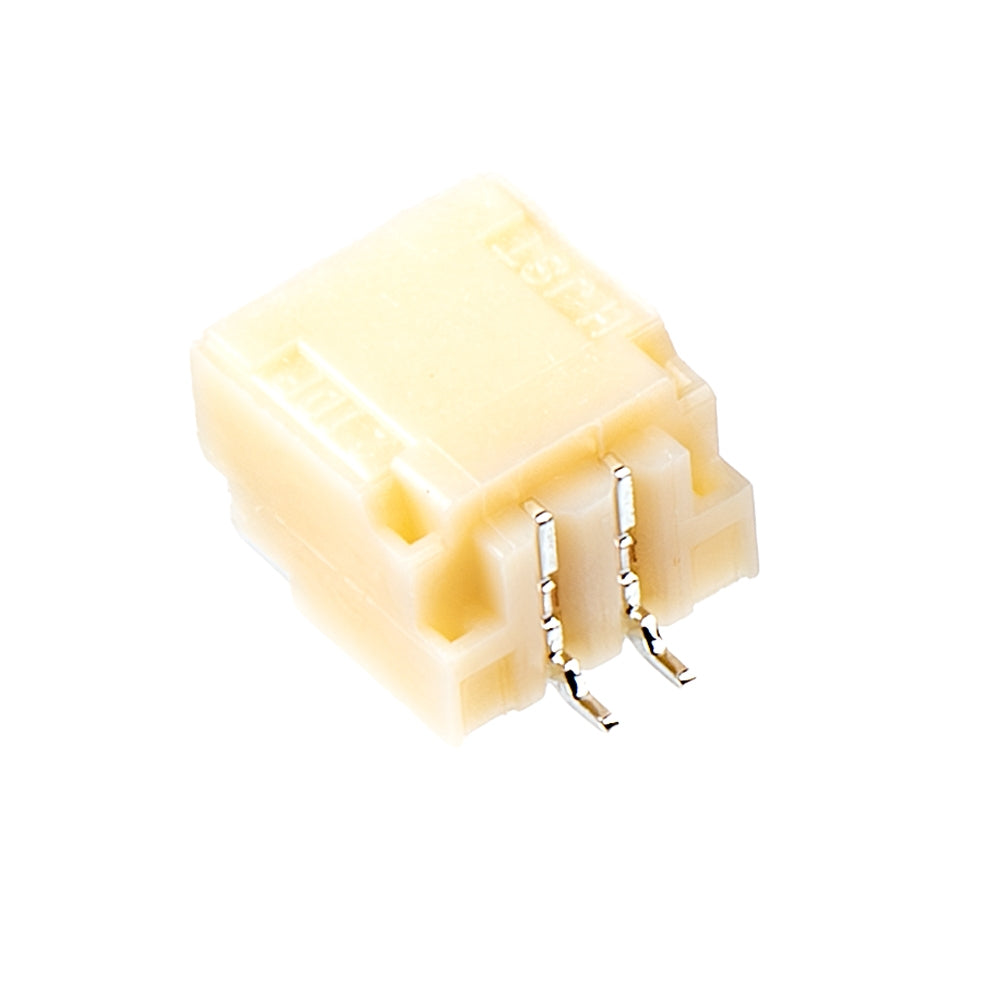

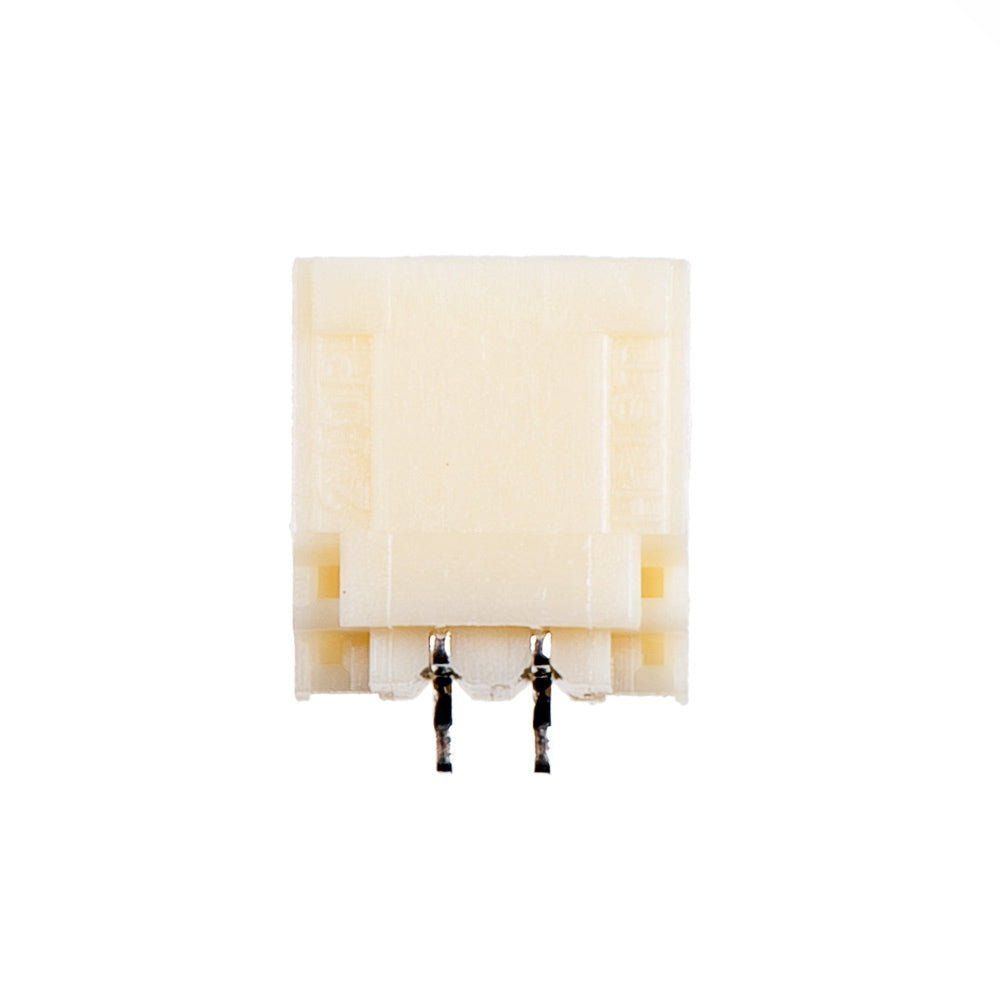

This is a basic surface mount JST-SH 2-pin right angle connector.
Features & Specs
- Number of positions: 2
- Pitch - Mating: 1mm (0.039")
- Mounting Type: Surface Mount, Right Angle
- Contact Finish - Mating: Tin
- Contact Finish - Post: Tin
- Contact Material: Copper
- Insulation Material: Polyamide (PA), Nylon
- Operating Temperature: -25°C ~ 85°C
- Material Flammability Rating: UL94 V-0
- Current Rating: 1A
- Voltage Rating: 50V
Features & Specs
- Number of positions: 2
- Pitch - Mating: 1mm (0.039")
- Mounting Type: Surface Mount, Right Angle
- Contact Finish - Mating: Tin
- Contact Finish - Post: Tin
- Contact Material: Copper
- Insulation Material: Polyamide (PA), Nylon
- Operating Temperature: -25°C ~ 85°C
- Material Flammability Rating: UL94 V-0
- Current Rating: 1A
- Voltage Rating: 50V
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 112.7 |
| 3-5 | ₹ 111.55 |
| 5-10 | ₹ 109.25 |
| 10+ | ₹ 106.95 |
Bulk discount will be automatically applied during checkout based on quantity.
