Description

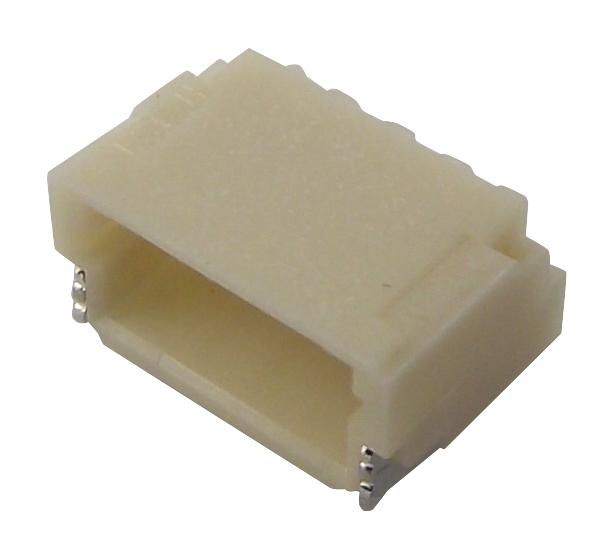

The SM14B-SRSS-TB is a 14-contact 1-row 1mm pitch Crimp Connector, 1A, 50V rated. This SH series wire to board compact low profile disconnectable connector is made of tin plated copper contact, side entry PC board mounting direction. Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely affect vacuum gripping equipment. The receptacle has protrusions on both ends for an operator to disengage the receptacle from the header without holding the wires and applicable to 28AWG wire gauge.
- Housing lances
- 20R Maximum contact resistance
- 100MR Minimum insulation resistance
- -25 to 85°C Operating temperature range
Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | JST (JAPAN SOLDERLESS TERMINALS) |
| Part Number | SM14B-SRSS-TB (LF)(SN) |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
