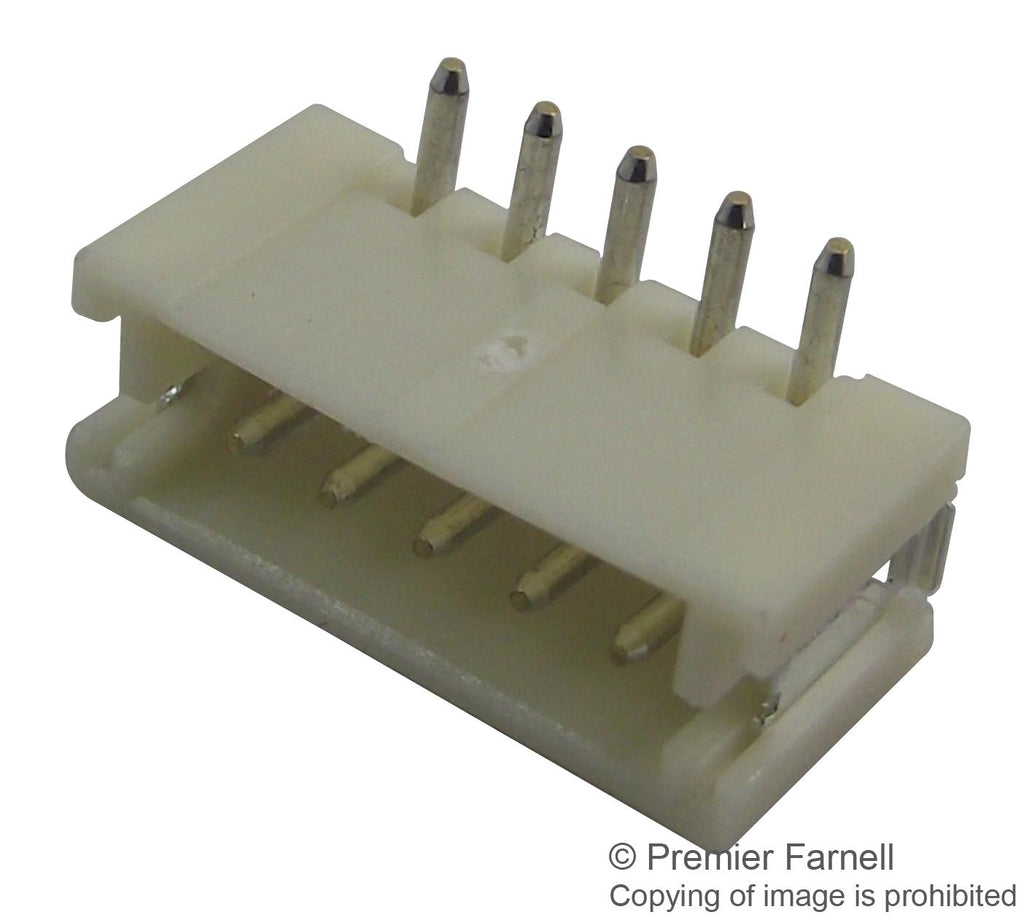

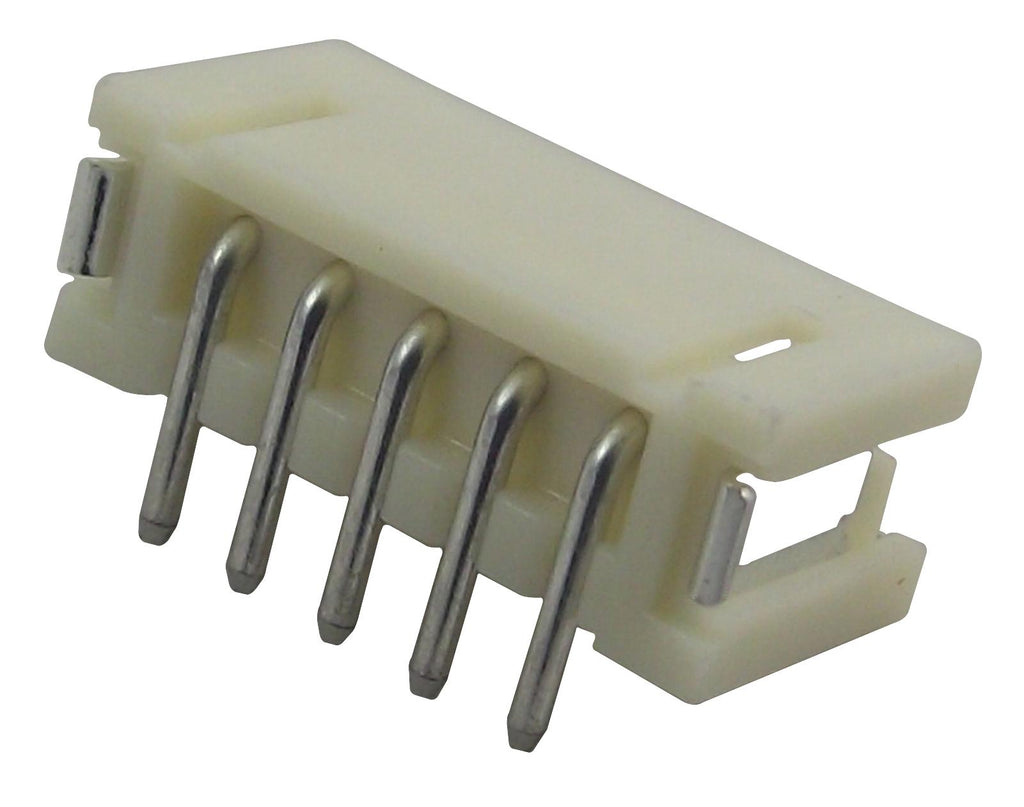

JST (JAPAN Solderless TERMINALS) B5B-ZR-SM4-TF (LF)(SN)(P) B5B-ZR-SM4-TF (LF)(SN)(P) Pin Header Wire-to-Board 1.5 mm 1 Rows 5 Contacts Surface Mount ZH

The B5B-ZR-SM4-TF (LF)(SN)(P) is a 5-contact 1.5mm pitch Crimp Connector, 1A, 50V rated. The ZH series compact disconnectable wire to board Connector is made of tin plated copper undercoated brass pin, ivory PA wafer, tin plated copper coated brass solder tab having top entry PC board mounting direction, secure locking device prevents accidental disconnection the header pins are round and reflow-treated, which provides low insertion force, shrouded headers on radial-tape are also available. This connector is very small with a mounting height of 5.6mm and a thickness of only 3.5mm. Contact retention lances on the housing make insertion easier, while the dimple at the center of the contact ensures reliable contact with the post and 26AWG applicable wire gauge.

• Compact low profile design
• 20R Maximum contact resistance
• 500MR Minimum insulation resistance
• -25 to 85°C Operating temperature range

Applications

Industrial

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	JST (JAPAN SOLDERLESS TERMINALS)
Part Number	B5B-ZR-SM4-TF (LF)(SN)(P)
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
