| ₹ 182.59 includes GST and import duties. | |
| B2B customers can avail ₹ 27.84 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

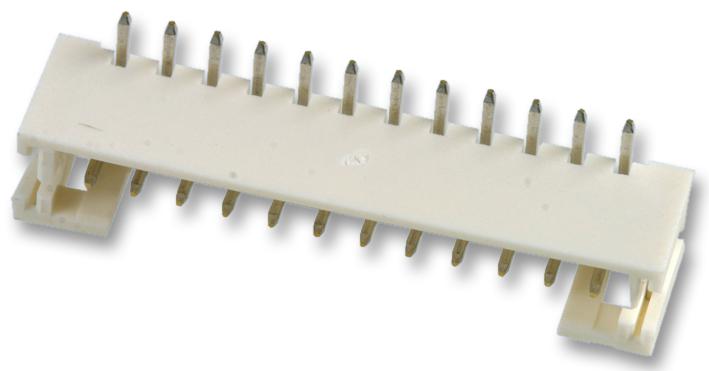

The B12B-PH-SM4-TB(LF)(SN) is a 12-contact 2mm pitch Crimp Connector, 2A, 100V rated. This PH thin disconnectable wire to board Connector is made of tin plated copper undercoated copper alloy post, ivory PA wafer, tin plated copper coated brass solder tab having top entry PC board mounting direction. The dimple at the center of the contact ensures positive contact and low contact resistance at all times. The contact has a long wire strip holding length of 2.6 ±0.4mm, fully shrouded header and 24AWG applicable wire gauge.
- Surface mount model
- 10mR Maximum contact resistance
- 1000MR Minimum insulation resistance
- -25 to 85°C Operating temperature range
Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | JST (JAPAN SOLDERLESS TERMINALS) |
| Part Number | B12B-PH-SM4-TB(LF)(SN) |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 178.94 |
| 3-5 | ₹ 177.11 |
| 5-10 | ₹ 173.46 |
| 10+ | ₹ 169.81 |
Bulk discount will be automatically applied during checkout based on quantity.
