| ₹ 209.66 includes GST and import duties. | |
| B2B customers can avail ₹ 31.97 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

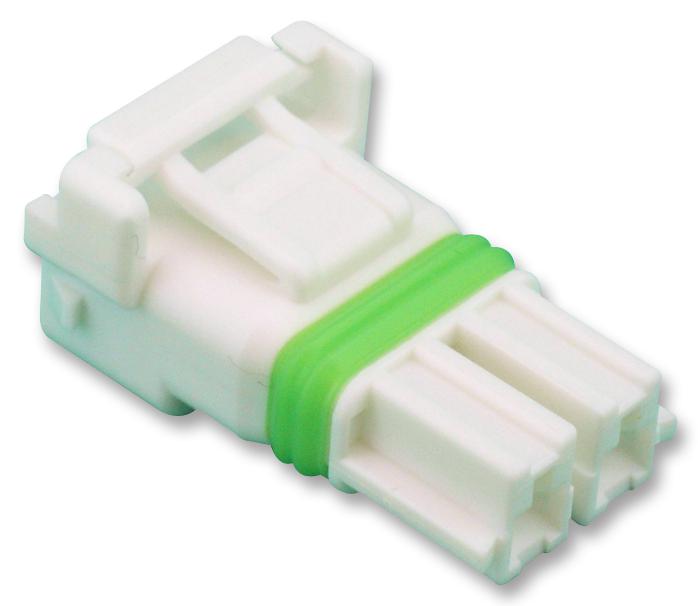

The WPJ series wire-to-wire and wire-to-board crimp style Connector recently introduced by JST Corporation was designed for both extreme moisture and non-submersion applications. Three different control key patterns prevent miss-mating while their unique terminal structure has been designed to withstand mating mistakes while maintaining the contact reliability. An inner lock housing feature prevents accidental disconnection to ensure connector mating integrity even under adverse conditions. WPJ series connectors have a 5mm pitch and are available in 2 and 3 circuits. Wire sizes 22 to 18AWG with either standard or thin insulation types are accommodated. Current rating is 7A AC/DC (18AWG) at 300VAC/DC. The contacts are copper alloy, tin-plated. Housings and top-entry, fully shrouded headers are UL94V-0 rated PBT (glass filled) material.
- IPX7 Water-proof grade
- 1500VAC/minute Withstanding voltage
Automotive, Consumer Electronics, Portable Devices
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | JST (JAPAN SOLDERLESS TERMINALS) |
| Part Number | 02R-WPJV-1.SMM(NN) |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 205.47 |
| 3-5 | ₹ 203.37 |
| 5-10 | ₹ 199.18 |
| 10+ | ₹ 194.98 |
Bulk discount will be automatically applied during checkout based on quantity.
