Description

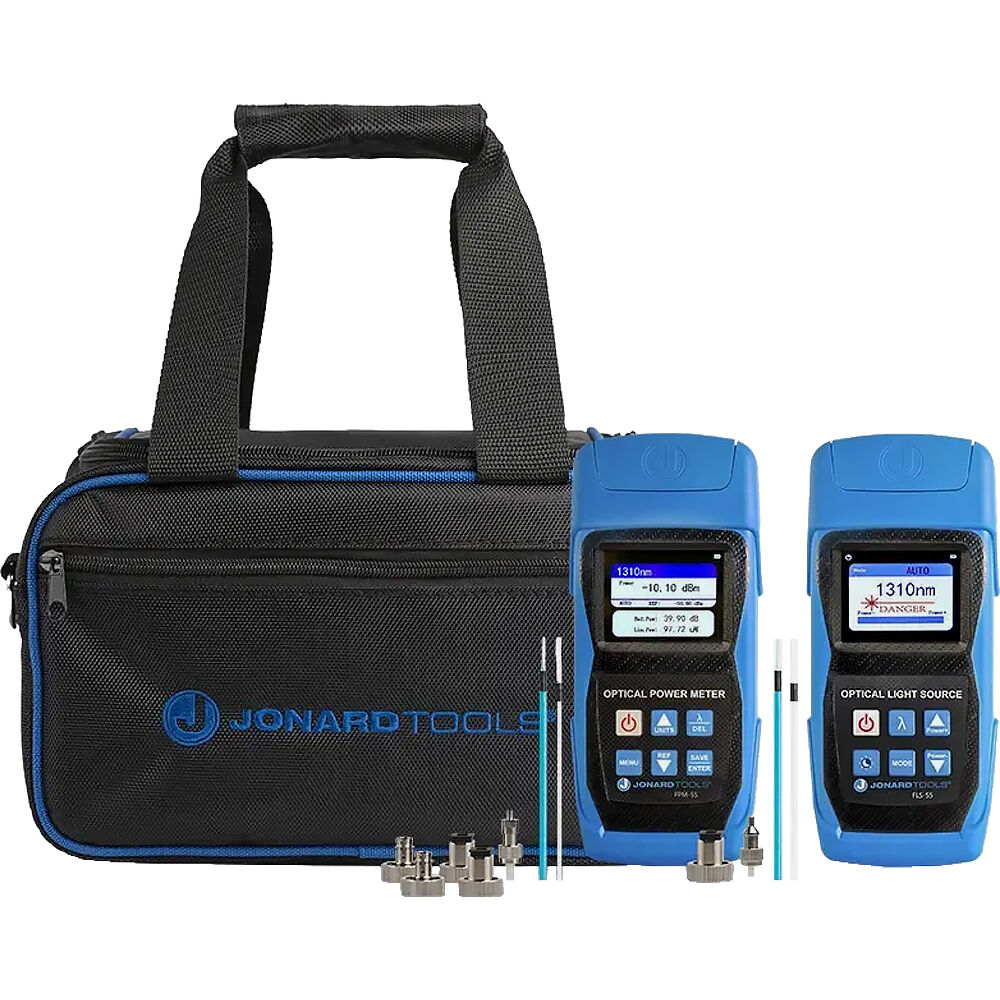

This Jonard Tools FPL-5555 Fiber Power Meter with Data Storage and SM/MM Optical Light Source Kit V2 provides everything you need to measure power and provide a stable light source for fiber-optic cable testing. This V2 package bundles the FPM-55 Fiber Optic Power Meter and the FLS-55 Fiber Optic Light Source with an H-22 rugged carrying case with carry straps. All necessary power adapters are also included in the kit.
The Jonard Tools FPM-55 Fiber Optic Power Meter with Data Storage and FC/SC/LC Adapters is the perfect power meter for measuring and recording both the absolute optical power and relative power loss in fiber optic cables.
- Measures a wide variety of wavelengths from 850-1650nm, with a mere 0.01 dB resolution
- Measures 8 preset calibrated wavelengths with high precision to determine absolute or relative power Intelligent backlight control adjusts the screen brightness automatically to reduce power consumption
- Stores up to 1000 data entries, which can be downloaded via USB
- Reference power level can be set up and stored via included software
- Auto-off function can be turned on or off
- Includes carrying case, instruction manual, software (available for download on this product page), and FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool
- The FC/SC adapters are for APC/PC/UPC connectors
- The LC adapter is for PC/UPC connectors only
Designed to allow for quick and precise testing of optical network power levels, the Multimode and Single-Mode Fiber Optic Light Source with SC/ST/FC/FC-LC (PC/UPC) Adapters provides a highly stable output power and offers four modulation outputs at 850m?830, 1300, 1310, and 1550nm wavelengths. With the bright 2.4" color LCD display, you can easily keep an eye on your readouts. And the intelligent backlight control saves battery life.
The FLS-55 runs on three AA alkaline batteries. A selectable auto-off function can be used to automatically turn the device off after a time period of inactivity, further saving battery life. Automatic wavelength detection makes the FLS-55 quick and easy to use. The FLS-55 includes three AA batteries, cleaning swabs, a protective carrying case, and FC-LC, SC, ST (single mode only), and FC plug adapters for connecting to virtually any PC/UPC fiber optic network type.
- Jonard Tools FPM-55 Fiber Optic Power Meter with Data Storage and FC/SC/LC Adapters (-50 to +26 dBm)
- FC Adapter
- SC Adapter
- LC Adapter
- Carry Case
- Limited 1-Year Manufacturer Warranty
- Jonard Tools Multimode and Single-Mode Fiber Optic Light Source with Adapters
- AA Battery
- Cleaning Swabs
- Carrying Case
- FC/UPC Plug Adapter
- SC/UPC Plug Adapter
- ST/UPC Plug Adapter
- FC-LC/UPC Plug Adapter
- Limited 1-Year Manufacturer Warranty

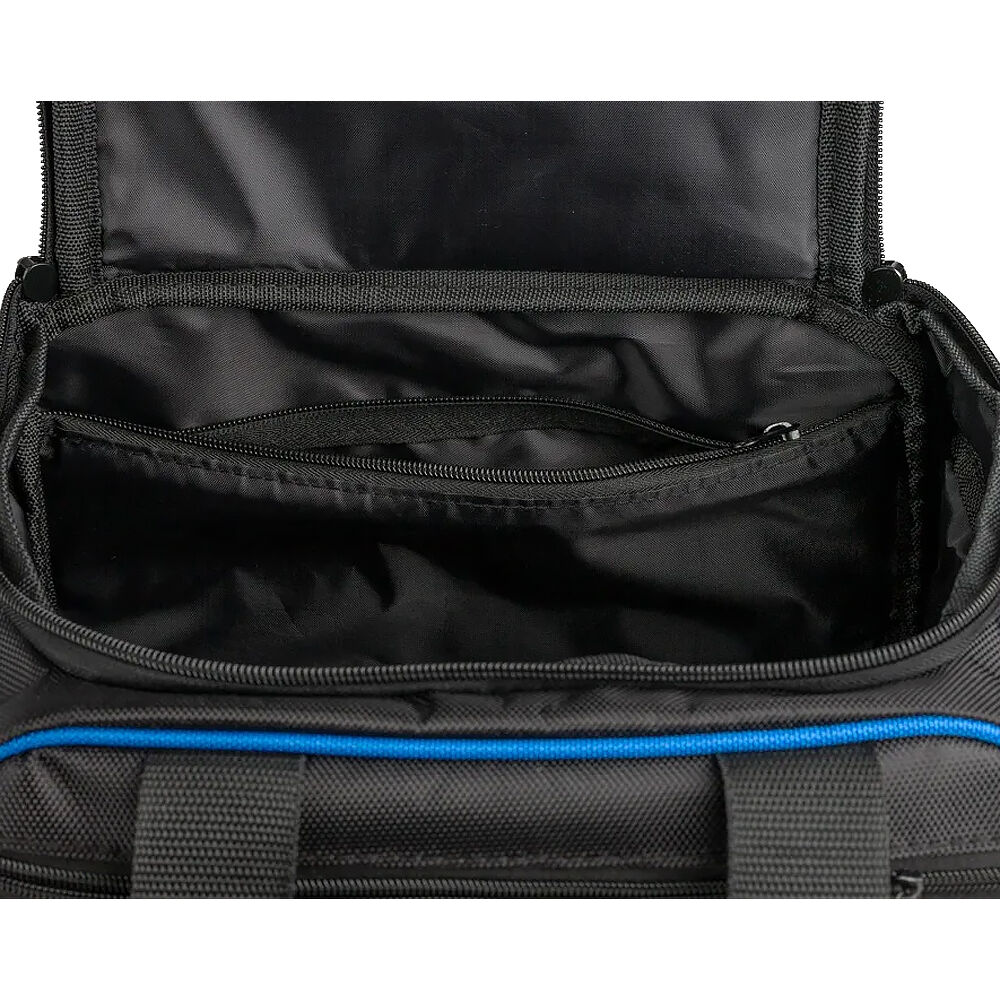

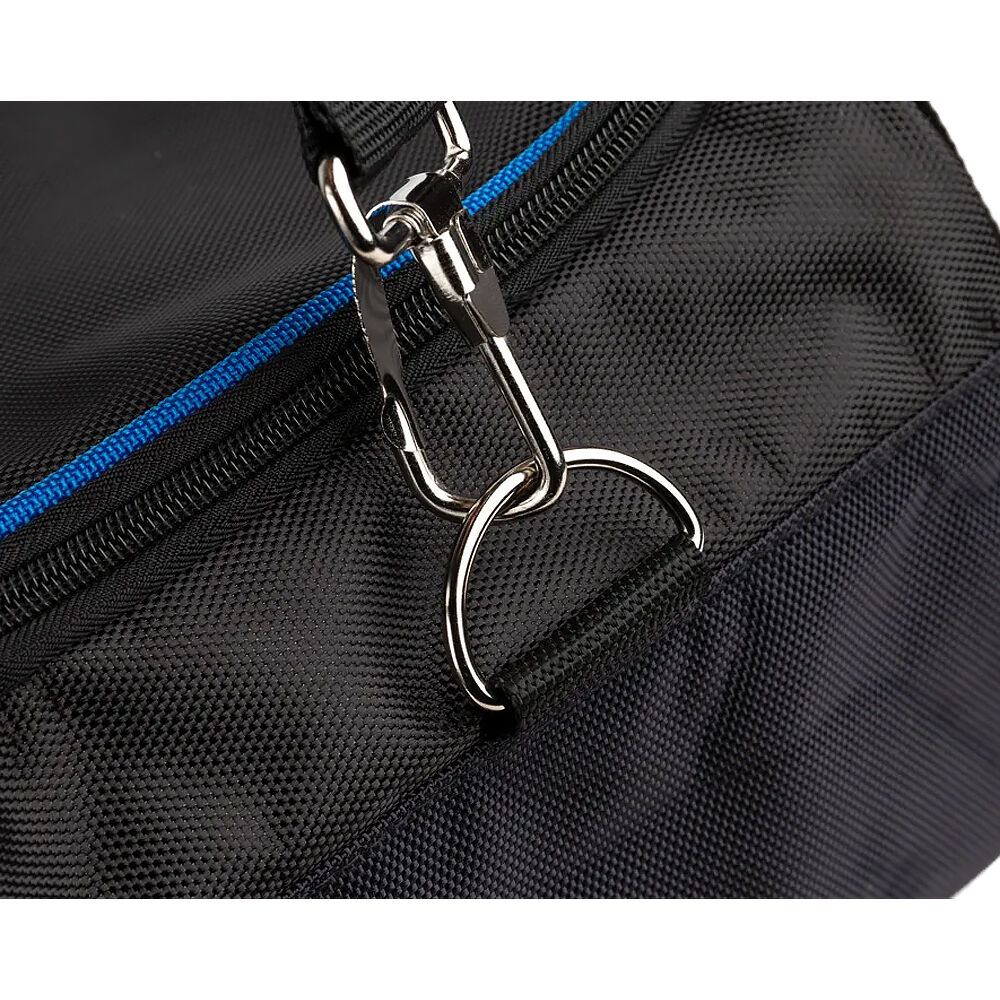

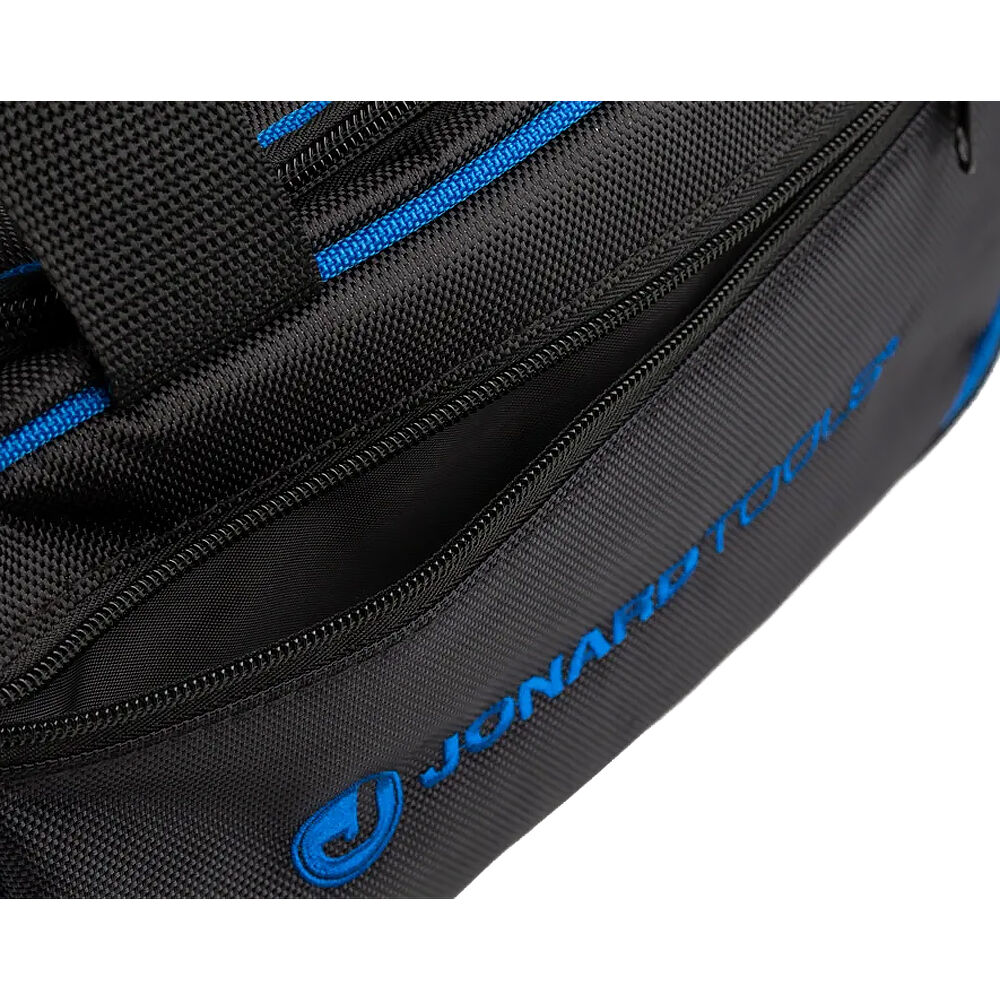

- H-22 Rugged Carrying Case
-
BatteriesEssential
Guides & Manuals
Jonard Tools FPM-55 Fiber Optic Power Meter with Data Storage and FC/SC/LC Adapters (-50 to +26 dBm)
| Compatibility |
Not Specified by Manufacturer
|
| Panel Type |
LCD
|
| Size |
Not Specified by Manufacturer
|
| Touchscreen |
No
|
| Power Source |
Battery
|
| Battery Type |
3x AA
|
| Dimensions |
6.9 x 3.5 x 1.8" / 175 x 90 x 44.5 mm
|
| Weight |
10.57 oz / 299.64 g
|
| Package Weight |
1.435 lb
|
| Box Dimensions (LxWxH) |
9.5 x 5.2 x 3.1"
|
