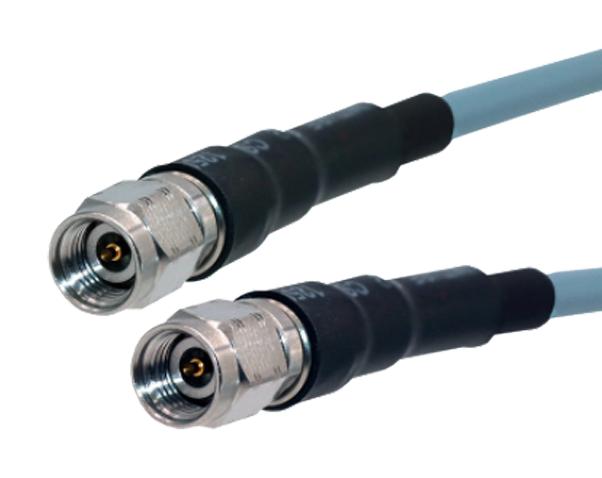

Johnson� 1.85mm straight plug to 1.85mm straight plug, 67GHz flexible cable assemblies allow connectivity in engineering lab and manufacturing environments for precision test and measurement applications. Johnson 1.85mm flexible cable assemblies are available in both imperial and metric lengths. Customized configurations available by request. Applications include test & measurement equipment, manufacturing lab, LAN router, WAN system equipment.
- Excellent operating performance to 67GHz
- VSWR max of 1.30 (67GHz)
- Vp, velocity of propagation of 74%
- 457.2mm length
- ±0.314 tolerance, <-3.3dB maximum insertion loss (67GHz)
Product details
| Connector to Connector |
1.85mm Plug to 1.85mm Plug |
| Impedance |
- |
| Cable Length - Imperial |
18" |
| Cable Length - Metric |
457.2mm |
| Jacket Colour |
- |
| Product Range |
- |
Other details
| Brand |
JOHNSON - CINCH CONNECTIVITY |
| Part Number |
415-0537-018 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
