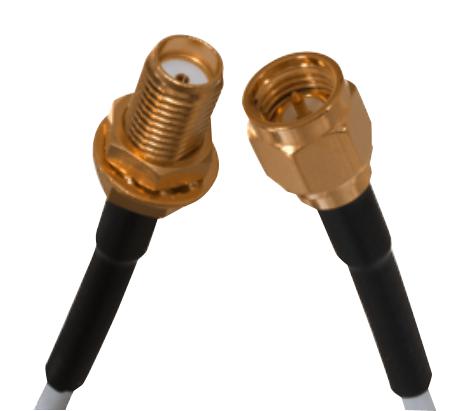

The 415-0031-M1.0 from Johnson - Cinch Connectivity is a SMA straight plug to SMA straight bulkhead jack RF cable assembly. This SMA cable assembly is made with SMA connectors on both ends. SMA connectors are semi-precision, sub-miniature, high frequency connectors that offer reliable broadband performance. SMA connectors feature a thread-on interface that offers high mechanical strength, high durability and low VSWR.
- Standard cable length is 39.4" and metric cable length is 1000mm
- Cable type is RG-316
- Impedance is 50 ohm and frequency is 4GHz
- Dielectric withstanding voltage is 750VRMS and working voltage is 250VRMS
Product details
| Connector Type A |
SMA Straight Plug |
| Connector Type B |
SMA Bulkhead Jack |
| Coaxial Cable Type |
RG316 |
| Impedance |
50ohm |
| Cable Length - Imperial |
39.4" |
| Cable Length - Metric |
1m |
| Jacket Colour |
Grey |
| Product Range |
- |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
JOHNSON - CINCH CONNECTIVITY |
| Part Number |
415-0031-M1.0 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
