Description

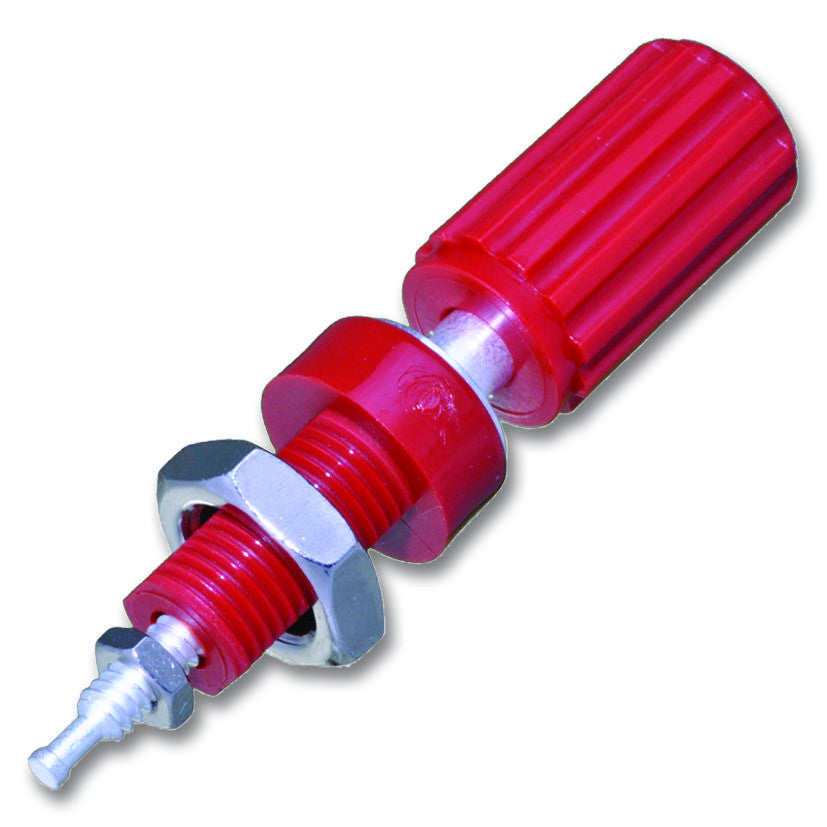

The 111-0102-001 is a red insulated Binding Post with silver plated brass body, nylon 6/6 per ASTM D4066 insulation fully insulated nylon binding post solves many common design problems. Nylon is flatted to prevent turning. Metal body is silver plated with turret terminal. Threaded nylon body withstands 6.0lbs.inch (7kg.cm) of thread stripping force for panel thickness up to 7.15mm.
- 15A Rated current
- 0.010R Maximum contact resistance
- 5700Vrms Minimum breakdown voltage
- 3.3pF Nominal stud-to-pane
- Turret terminal
- Captive thumb nut
- Insulated body is flatted to prevent turning
- Nylon UL approved for self-extinguishing
Applications
Aerospace, Defence, Military, Signal Processing
Product details
| Contact Plating | Silver Plated Contacts |
| Current Rating | 15A |
| Product Range | - |
| Contact Material | Brass |
| Voltage Rating | 5.7kV |
| Connector Mounting | Panel Mount |
| Connector Colour | Red |
Other details
| Brand | JOHNSON |
| Part Number | 111-0102-001 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
