Description

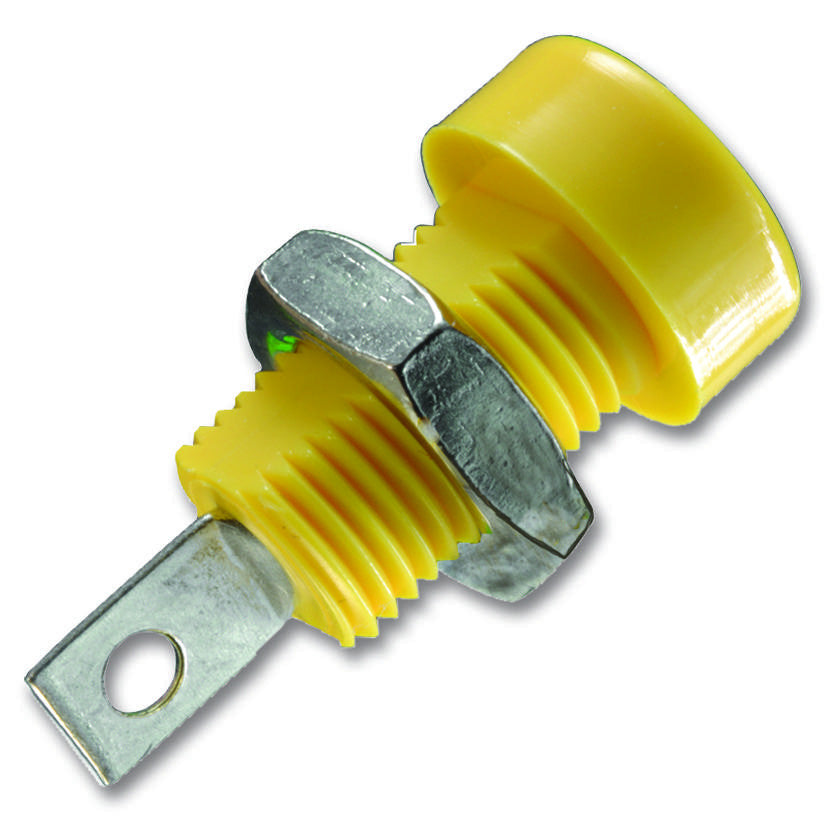

The 108-0907-001 is a yellow insulated solder terminal Banana Jack with bright tin plated brass body, nickel plated unassembled nut, threaded nylon body withstands a6.0lbs.inch (7kg.cm) of thread stripping force for panel thickness up to 8.8mm and is keyed mounting with double flats, accepts up to 16 gauge wire.
- 15A Current
- 7000Vrms Minimum breakdown voltage
- 0.010R Maximum contact resistance
- Nylon UL approved for self extinguishing
- 7kV Voltage rating
Applications
Aerospace, Defence, Military, Signal Processing
Product details
| Contact Plating | Tin Plated Contacts |
| Gender | Jack |
| Current Rating | 15A |
| Product Range | - |
| Contact Material | Brass |
| Contact Termination Type | Solder |
| Voltage Rating | 7kV |
| Connector Mounting | Panel Mount |
| Connector Colour | Yellow |
Other details
| Brand | JOHNSON |
| Part Number | 108-0907-001 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
